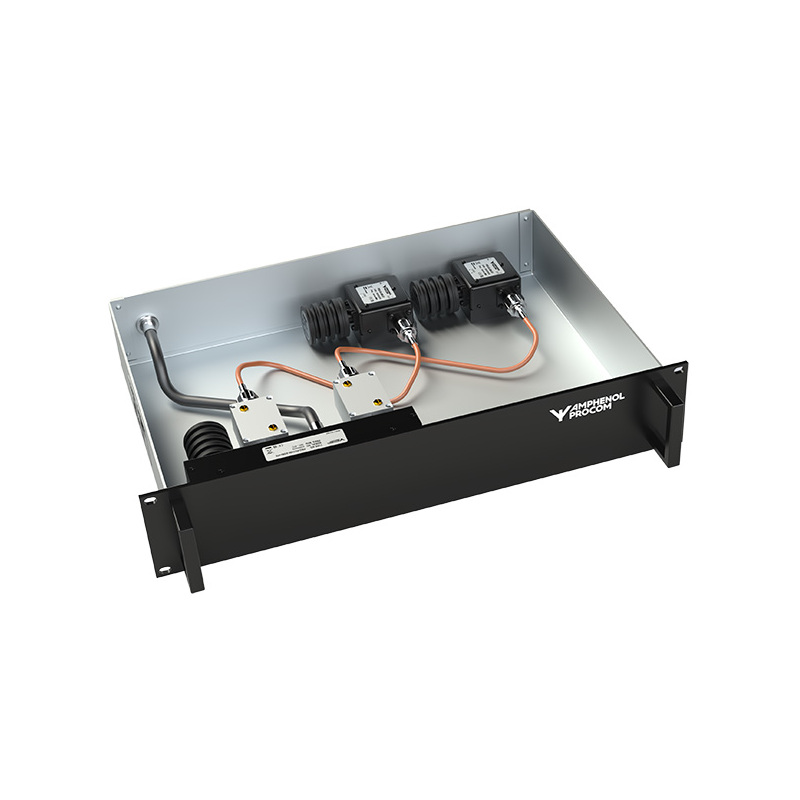

PRO-PHY150-2SI

Compact 2-Channel 150 MHz Tx Hybrid Combiner

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-2SI

Quickly identify the correct ordering code.

PRO-PHY150-2SI
Electrical
Model PRO-PHY150-2SI-…
Frequency 135 – 165 MHz or 145 – 175 MHz
Max. Input Power 35 W / 50 W / 100 W
Spacing Tx-Tx ≤ 7 MHz
Insertion Loss ≤ 4.2 dB
Impedance 50 Ω
Isolation Tx-Tx > 70 dB @ 25 C, for TX-TX spacing up to 1 MHz
> 60 dB @ 25 C, for TX-TX spacing up to 3 MHz
> 55 dB @ 25 C, for TX-TX spacing up to 7 MHz
VSWR < 1.5:1
No. of channels 2
Environmental
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 2 HU x 300 mm
(482.6 x 88.1 x 300 mm) /
19 x 3.5 x 11.9 in.
Weight Approx. 4.0 kg / 8.8 lb. for 35 W input power
Approx. 4.3 kg / 9.5 lb. for 50 W input power
Approx. 6.0 kg / 13.3 lb. for 100 W input power
  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Single isolators fitted as standard.
  • High performance Broadband Hybrid in 2 versions covering the 135-165 MHz range or the 145-175 MHz range is fitted as standard.
  • Available in 3 versions: Tx 35 W, 50 W and 100 W per channel (see ordering).
  • Please specify the frequencies for Tx when ordering.
  • As standard the combiner will come with black painted front plate. If requested,
    please ask for a front plate with alu-look.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Max. Input Power Add To Quote

PRO-PHY150-2SI/135-165/35W

 Contact_29 35W

PRO-PHY150-2SI/135-165/50W

 Contact_30 100W

Login required

You need to be logged in into your account to view downloadable documents.

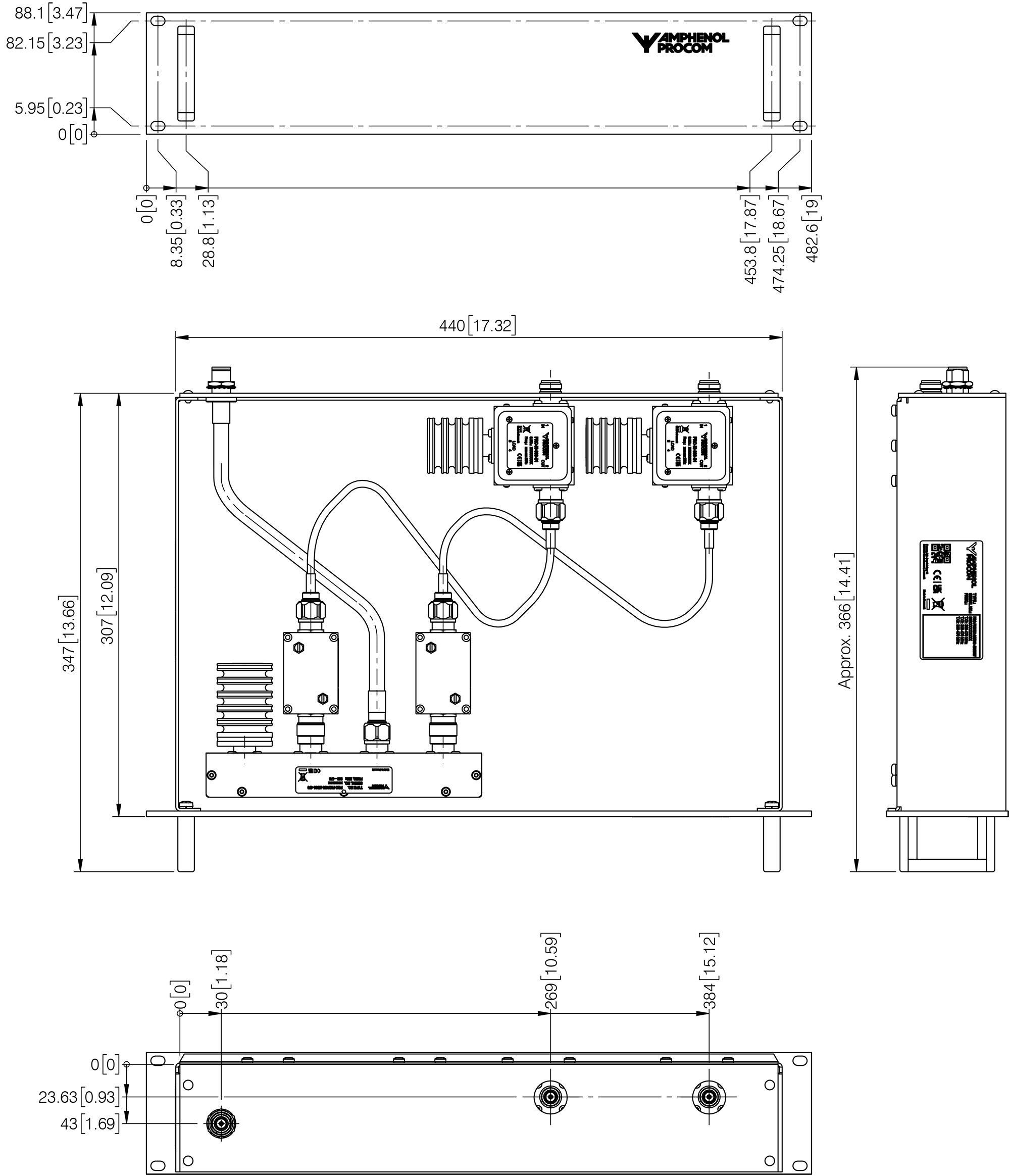

Mechanical Outline

Outline dimensions applies to 19″ trays for 35 W, 50 W and 100 W input power

PRO PHY450 2SI 380 470 35W Mechanical outline

All dimensions are given in mm [in.]
