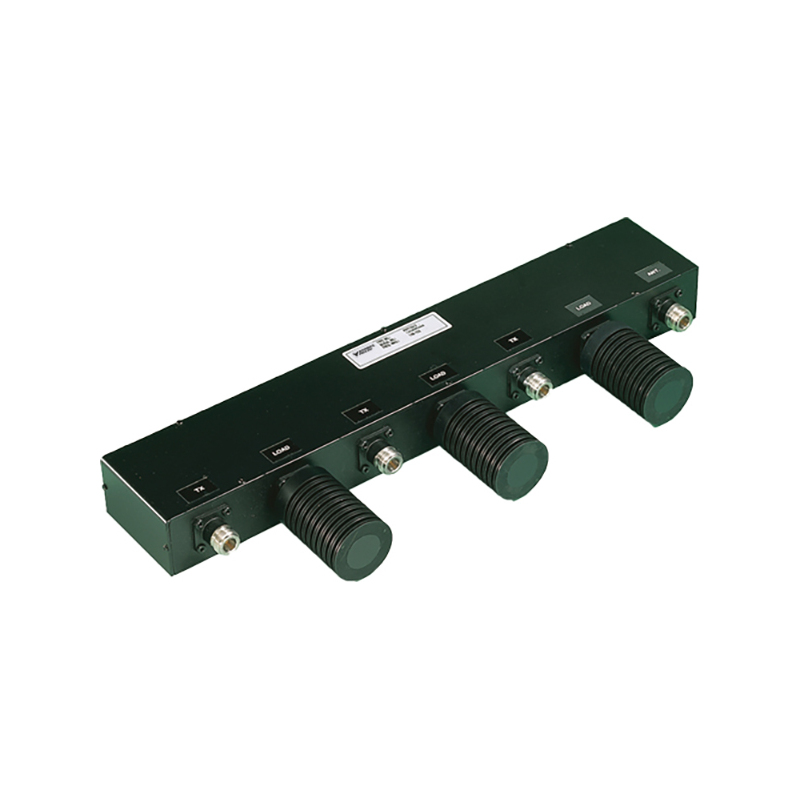

PRO-PHY150-3

3-Channel Hybrid Combiner for 150 MHz Transmitters

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-3

Quickly identify the correct ordering code.

PRO-PHY150-3
Electrical
Model PRO-PHY150-3
Filter Type Hybrid Junction
Frequency 136 – 175 MHz (see ordering)
Max. Input Power 45 W per channel (max. 150 W with larger load)
Insertion Loss < 5.2 dB ± 0.3 dB @ 8 MHz BW
< 5.4 dB ± 0.3 dB @ 16 MHz BW
Impedance 50 Ω
Isolation Tx1 – Tx2 > 26 dB @ 8 MHz BW
> 24 dB @ 16 MHz BW
(* see note)
VSWR < 1.5:1 with all other ports terminated with 50 Ω
Load 30 W load fitted (other ratings available)
(** see note)
No. of channels 3
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 400 x 89 (incl. conn.) x 42 mm (excl. loads)
/ 15.75 x 3.50 x 1.65 in.
Weight Approx. 1.3 kg / 2.87 lb. (excl. load)
  • Combining three transmitters or receivers on the same antenna.
  • Better utilization of good antenna position.
  • Three antennas on the same transmitter or receiver.
  • The only combining option with very small Tx-Tx frequency spacing.
  • 30 W load supplied (other loads or no load as option).

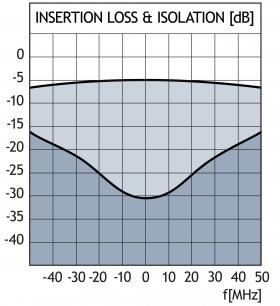

TYPICAL RESPONCE CURVE

Model Product No. Frequency Add To Quote

PRO-PHY150-3-1

 210001225 130 – 142 MHz

PRO-PHY150-3-2

 210000639 138 – 150 MHz

PRO-PHY150-3-3

 210000611 146 – 158 MHz

PRO-PHY150-3-4

 210000547 154 – 166 MHz

PRO-PHY150-3-5

 210000583 162 – 174 MHz

PRO-PHY150-3-6

 210000793 170 – 182 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Note

* The isolation between the Tx ports is directly dependent on the terminating VSWR on the antenna port. With an antenna load VSWR = 1.5, the isolation between the two Tx ports will be reduced to 20 dB @ 5 MHz bandwidth.

** The VSWR of the load’s should be < 1.1! Each load should be able to dissipate 2/3 of the input power. E.g.: With 50 W input, each load should be able to dissipate 50 W x 2/3 = 33 W.
