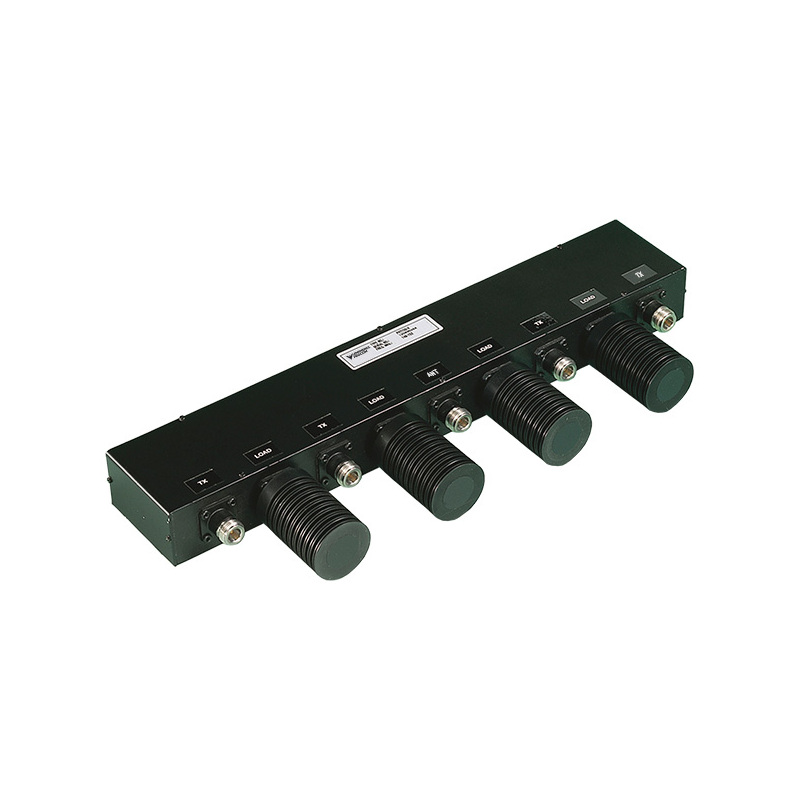

PRO-PHY150-4

4-Channel Hybrid Combiner for 150 MHz Transmitters

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-4

Quickly identify the correct ordering code.

PRO-PHY150-4

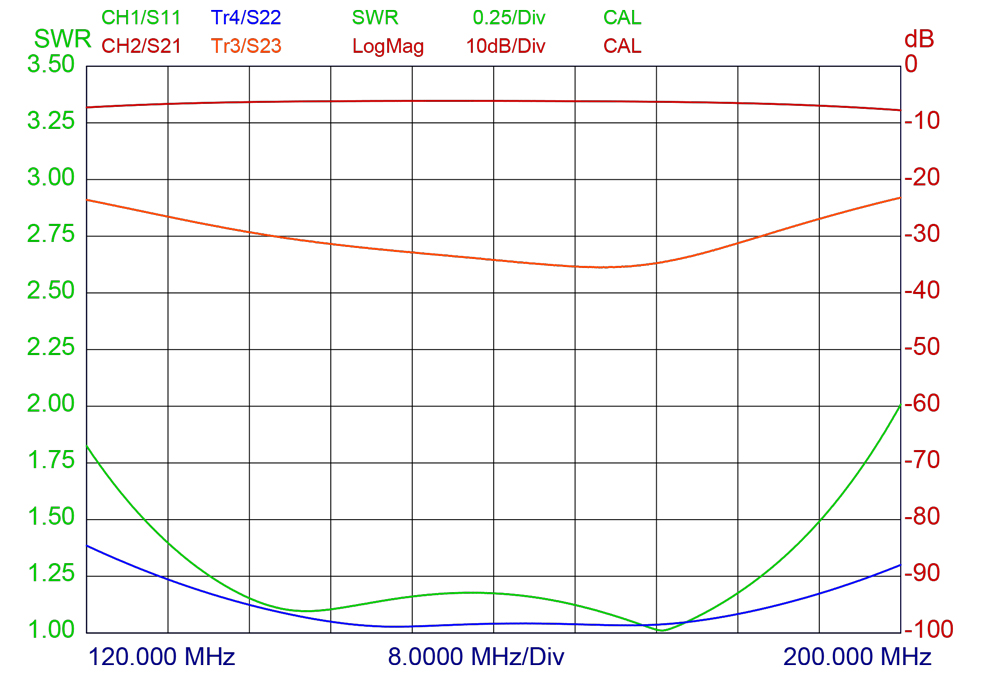

Electrical
Model PRO-PHY150-4
Filter Type Hybrid Junction
Frequency 136 – 175 MHz (see ordering)
Max. Input Power 40 W per channel (max. 130 W with larger load)
Insertion Loss < 6.3 dB ±0.3 dB
Impedance 50 Ω
Isolation Tx1 – Tx2 > 30 dB (* see note)
VSWR < 1.5:1 with all other ports terminated with 50 Ω
Load 30 W load fitted
(other ratings available)
(** see note)
No. of channels 4
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 420 x 89 (incl. conn.) x 42 mm (excl. load) / 16.54 x 3.50 x 1.65 in.
Weight Approx. 1.33 kg / 2.93 lb. (excl. load)
  • Combining four transmitters or receivers on the same antenna.
  • Better utilization of good antenna position.
  • Four antennas on the same transmitter or receiver.
  • The only combining option with very small Tx-Tx frequency spacing.
  • 30 W load supplied (other loads or no load as option).

Model Product No. Frequency Add To Quote

PRO-PHY150-4-3

 210000632 130 – 160 MHz

PRO-PHY150-4-5

 210000672 140 – 170 MHz

PRO-PHY150-4-8

 210000558 150 – 180 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Note

* The isolation between the Tx ports is directly dependent on the terminating VSWR on the antenna port. With an antenna load VSWR = 1.5, the isolation between the two Tx ports will be reduced to 20 dB @ 5 MHz bandwidth.

** The VSWR of the load’s should be < 1.1! Each load should be able to dissipate 3/4 of the input power.
E.g.: With 50 W input, each load should be able to dissipate 50 W x 3/4 = 37 W.
