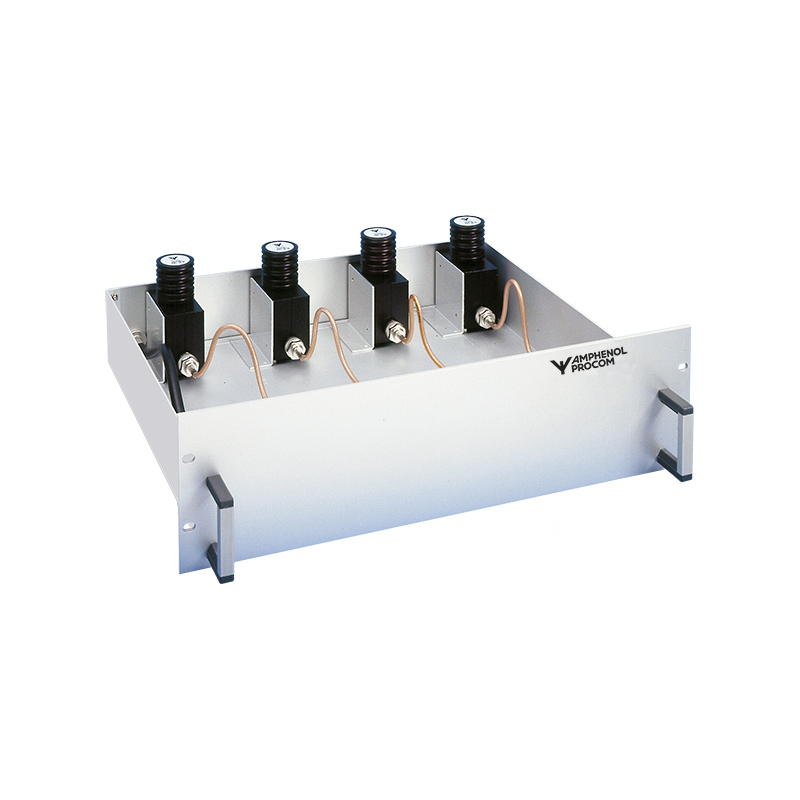

PRO-PHY150-4SI

4-Channel Hybrid Combiner

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-4SI

Quickly identify the correct ordering code.

PRO-PHY150-4SI
Electrical
Model PRO-PHY150-4SI-…
Frequency 145 – 175 MHz
Max. Input Power 50 W / 100 W
Spacing Tx-Tx < 7 MHz
Insertion Loss ≤ 6.6 dB
Impedance 50 Ω
Isolation Tx-Tx > 70 dB
VSWR ≤ 1.5:1
No. of channels 4
Environmental
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 3 HU
(482.6 x 132.55 mm) /
19 x 5.22 in.
– see Mechanical Outline for depth of tray
Weight 50 W : Approx. 7.3 kg / 16.09 lb.
100 W : Approx. 11.8 kg / 26.01 lb.
  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Single isolators fitted as standard.
  • A range of racks and cabinets are available.
  • Option: Maximum input power of 50 W (PRO-PHY…4SI-50) or
    100 W (PRO-PHY…4SI-100).
  • Please specify the frequencies for Tx when ordering.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Max. Input Power Add To Quote

PRO-PHY150-4SI-50

 Contact_21 50W

PRO-PHY150-4SI-100

 Contact_22 100W

Login required

You need to be logged in into your account to view downloadable documents.

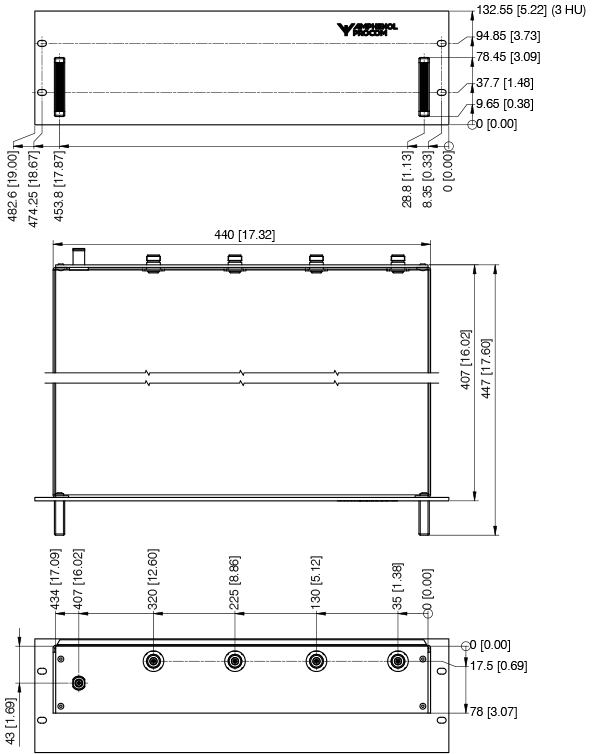

Mechanical Outline

PRO PHYxxx 4SI 4DI Holeplacing

All dimensions are given in mm [in.]
