PRO-PHY150-5

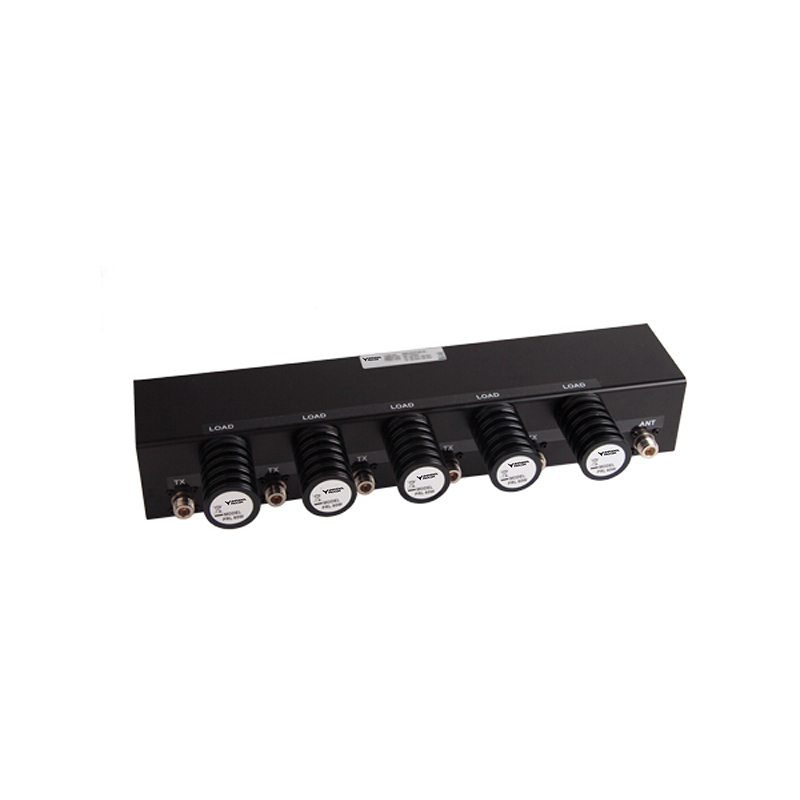

5-Channel Hybrid Combiner for 150 MHz Transmitters

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-5

Quickly identify the correct ordering code.

PRO-PHY150-5
Electrical
Model PRO-PHY150-5
Filter Type Hybrid Junction
Frequency 136 – 175 MHz (see table)
Max. Input Power 37.5 W per channel (max. 125 W with larger load)
Insertion Loss < 8.2 dB ±0.5 dB @ 8 MHz BW
< 8.3 dB ±0.5 dB @ 16 MHz BW
Impedance 50 Ω
Isolation Tx1 – Tx2 > 32 dB @ 8 MHz BW
> 27 dB @ 16 MHz BW
(* see note)
VSWR < 1.5:1 with all other ports terminated with 50 Ω
Load 30 W load fitted (other ratings available)
(** see note)
No. of channels 5
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 420 x 89 (incl. conn.) x 42 mm (excl. load) /
16.50 x 3.50 (incl. conn.) x 1.65 in. (excl. load)
Weight Apprx. 1.6 kg / 3.53 lb.
  • Combining five transmitters or receivers on the same antenna.
  • Better utilization of good antenna position.
  • Five antennas on the same transmitter or receiver.
  • The only combining option with very small Tx-Tx frequency spacing.
  • 30 W load supplied (other loads or no load as option).

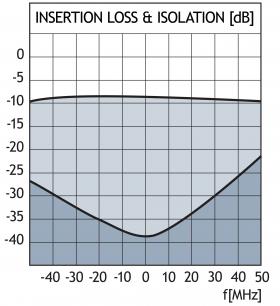

TYPICAL RESPONSE CURVE

Model Product No. Frequency Add To Quote

PRO-PHY150-5-1

 210001231 136 – 141 MHz

PRO-PHY150-5-2

 210001232 140 – 145 MHz

PRO-PHY150-5-3

 210001233 144 – 149 MHz

PRO-PHY150-5-4

 210001234 148 – 153 MHz

PRO-PHY150-5-5

 210001235 152 – 157 MHz

PRO-PHY150-5-6

 210001236 156 – 161 MHz

PRO-PHY150-5-7

 210001129 160 – 165 MHz

PRO-PHY150-5-8

 210001131 164 – 169 MHz

PRO-PHY150-5-9

 210001237 168 – 173 MHz

PRO-PHY150-5-10

 210001238 172 – 175 MHz

Login required

You need to be logged in into your account to view downloadable documents.

* Note

The isolation between the Tx ports is directly dependent on the terminating VSWR on the antenna port.
With an antenna load VSWR = 1.5, the isolation between the two Tx ports will be reduced to 20 dB @ 5 MHz bandwidth.

** Note

The VSWR of the load’s should be < 1.1! Each load should be able to dissipate 4/5 of the input power.
E.g.: With 50 W input, each load should be able to dissipate 50 W x 4/5 = 40 W.
