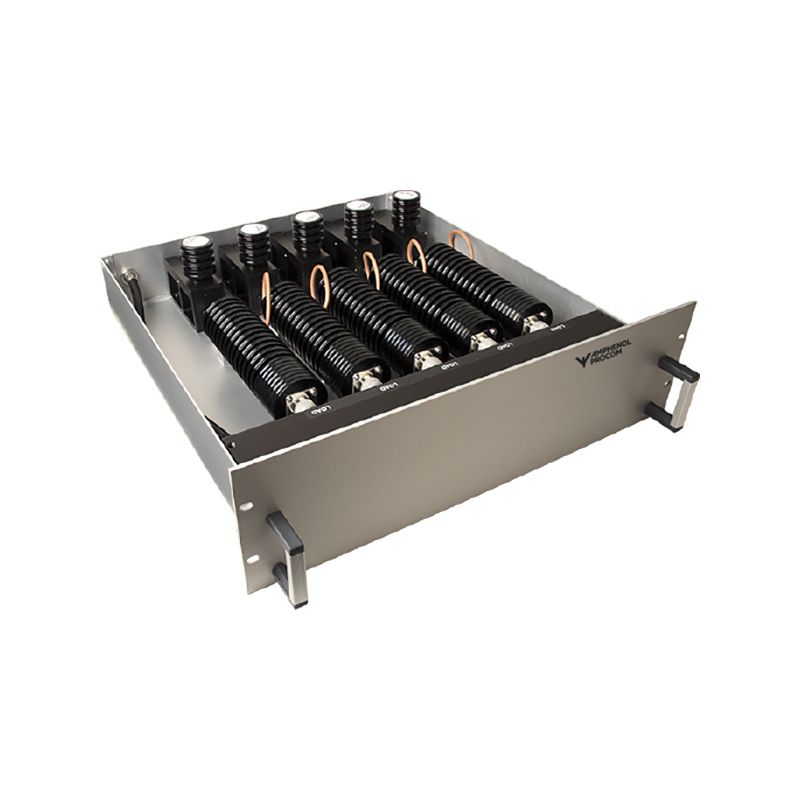

PRO-PHY150-5DI3

5-Channel Hybrid Combiner with dual isolator

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-5DI3

Quickly identify the correct ordering code.

PRO-PHY150-5DI3
Electrical
Model PRO-PHY150-5DI3-…
Frequency 136 – 175 MHz
Max. Input Power 35 W / 100 W
Spacing Tx-Tx < 7 MHz
Insertion Loss 9 dB
Impedance 50 Ω
Isolation Tx-Tx > 100 dB
VSWR < 1.5:1
No. of channels 5
Environmental
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 3 HU x 400/500 mm
(482.6 x 132.55 x 400/500 mm) /
19 x 5.22 x 15.75/19.69 in.
Weight 35 W : Approx. 9.4 kg / 20.72 Ib.
100 W : Approx. 14.0 kg / 30.86 lb.
  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Dual isolators fitted as standard.
  • A range of racks and cabinets are available.
  • Option: Maximum input power of 35 W (PRO-PHY150-5DI3-35)
    or 100 W (PRO-PHY150-5DI3-100).
  • Please specify the frequencies for Tx when ordering.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Max. Input Power Add To Quote

PRO-PHY150-5DI3-35

 Contact_19 35W

PRO-PHY150-5DI3-100

 Contact_20 100W
