PRO-PHY150-5SI3

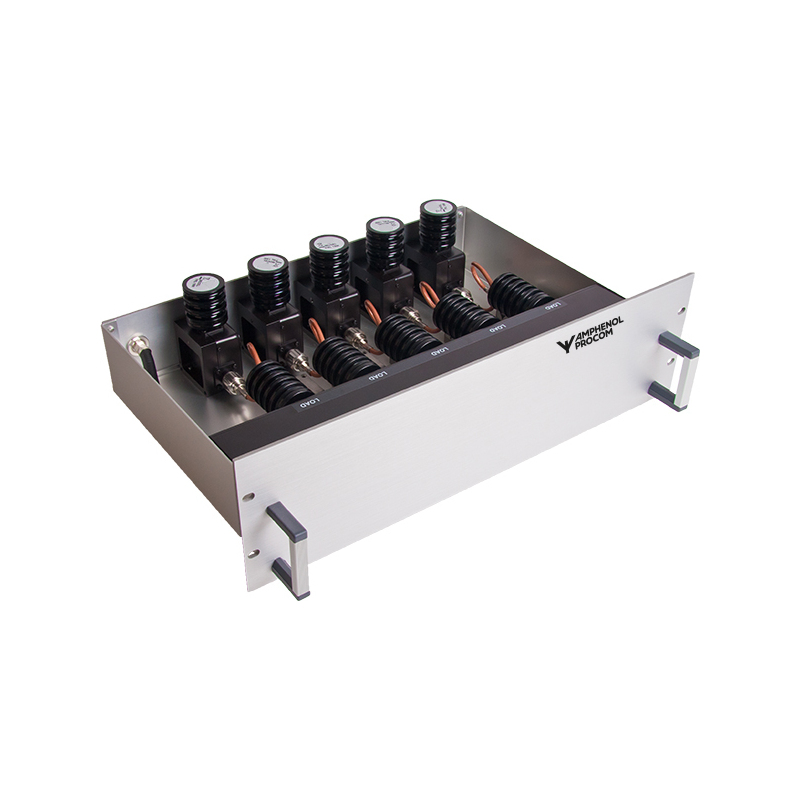

5-Channel Hybrid Combiner with single isolator

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-5SI3

Quickly identify the correct ordering code.

PRO-PHY150-5SI3
Electrical
Model PRO-PHY150-5SI3-…
Frequency 145 – 175 MHz
Max. Input Power 35 W / 100 W
Spacing Tx-Tx < 7 MHz
Insertion Loss ≤ 8.6 dB
Impedance 50 Ω
Isolation Tx-Tx > 70 dB
VSWR < 1.5:1
No. of channels 5
Environmental
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 3 HU x 400/500 mm
(482.6 x 132.55 x 400/500 mm) /
19 x 5.22 x 15.75/19.69 in.
Weight 35 W : 7.3 kg / 16.09 Ib.
100 W : 11.8 kg / 26.01 Ib.
  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Single isolators fitted as standard.
  • A range of racks and cabinets are available.
  • Option: Maximum input power of 35 W (PRO-PHY150-5SI3-35)
    or 100 W (PRO-PHY150-5SI3-100).
  • Please specify the frequencies for Tx when ordering.

TYPICAL RESPONSE CURVES No 2.

TYPICAL RESPONSE CURVES No 1.

Model Product No. Max. Input Power Add To Quote

PRO-PHY150-5SI3-35

 Contact_17 35W

PRO-PHY150-5SI3-100

 Contact_18 100W
