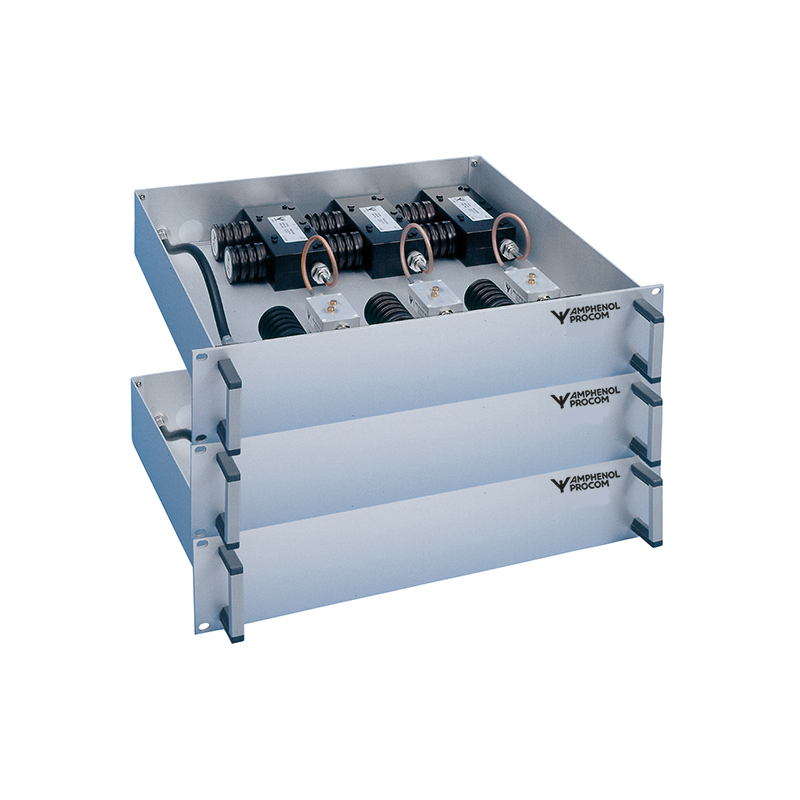

PRO-PHY150-6DI-100

6-Channel Hybrid Combiner for 100 W

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PHY150-6DI-100
Electrical
Model PRO-PHY150-6DI-100
Frequency 145 – 175 MHz
Max. Input Power 100 W
Spacing Tx-Tx < 7 MHz
Insertion Loss ≤ 9 dB
Impedance 50 Ω
Isolation Tx-Tx > 90 dB
VSWR < 1.5:1
No. of channels 6
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 6 HU x 500 mm
(482.6 x 265.9 x 500 mm) /
19 x 10.47 x 19.69 in.
Weight Approx. 25 kg / 55.12 lb.
  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Dual isolators fitted as standard.
  • Maximum input power of 100 W.
  • Please specify the frequencies for Tx when ordering.
