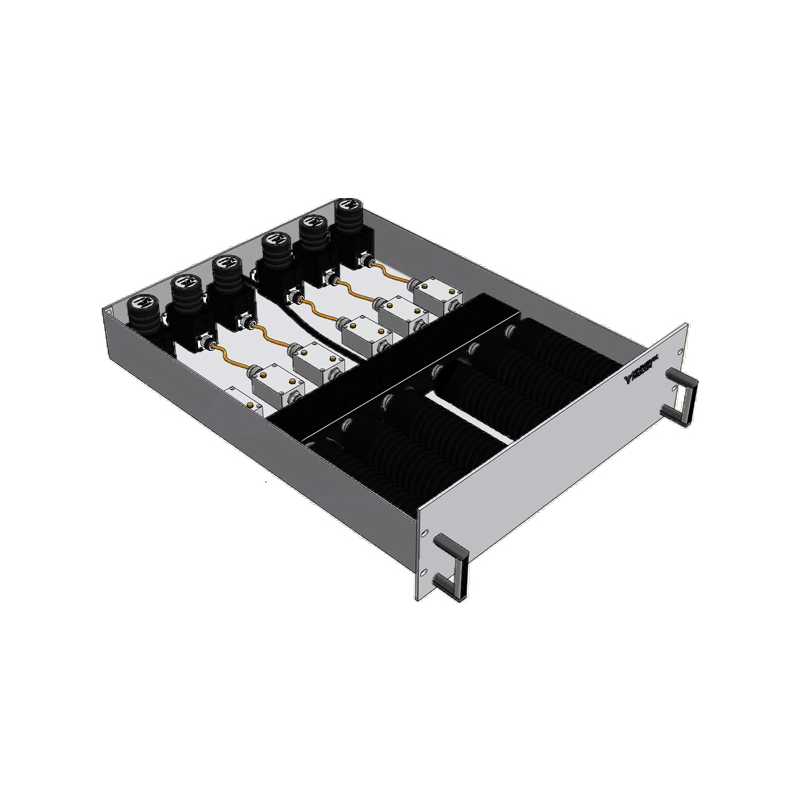

PRO-PHY150-6SI3

6-Channel Hybrid Combiner for 35, 50 or 100 W

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY150-6SI3

Quickly identify the correct ordering code.

PRO-PHY150-6SI3
Electrical
Model PRO-PHY150-6SI3-…
Frequency 145 – 175 MHz
Max. Input Power 35 W / 50 W / 100 W
Spacing Tx-Tx < 7 MHz
Insertion Loss ≤ 8.5 dB
Impedance 50 Ω
Isolation Tx-Tx > 70 dB
VSWR < 1.5:1
No. of channels 6
Environmental
Operating temperature range -30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 19″ x 3 HU
(482.6 x 132.55 mm) /
19 x 5.22 in.
– see Mechanical Outline for depth of tray
Weight 35 W : Approx. 10 kg / 22.04 lb.
50 W : Approx. 12 kg / 26.46 lb.
100 W : Approx. 15 kg / 33.07 lb.
  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Single isolators fitted as standard.
  • Maximum input power of 35, 50 or 100 W.
  • Please specify the frequencies for Tx when ordering.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Max. Input Power Add To Quote

PRO-PHY150-6SI3-35

 Contact_14 35W

PRO-PHY150-6SI3-50

 Contact_15 50W

PRO-PHY150-6SI3-100

 Contact_16 100W
