PRO-PHY350-2

2-Channel Hybrid Ring Combiner for 350 MHz Transmitters

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PHY350-2
Electrical
Model PRO-PHY350-2
Filter Type Hybrid Junction
Frequency 330 – 360 MHz
Max. Input Power 30 W per channel
(max. 100 W with larger load)
Insertion Loss < 3.4 dB @ 10 MHz BW
< 3.7 dB @ 20 MHz BW
Impedance 50 Ω
Isolation Tx1 – Tx2 > 35 dB @ 10 MHz BW
> 30 dB @ 20 MHz BW
VSWR < 1.5:1 with all other ports terminated with 50 Ω
Load 30 W load fitted (other ratings available)
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f) (other on request)
Historic Brand Amphenol Procom
Dimensions 216 x 89 (incl. conn.) x 42 mm (excl. load)
8.50 x 3.50 (incl. conn.) x 1.65 in. (excl. load)
Weight Approx. 0.7 kg / 1.54 lb.
  • Combining two transmitters or receivers on the same antenna.
  • Better utilization of good antenna position.
  • Two antennas on the same transmitter or receiver.
  • Combining two signal generators.
  • The only combining option with very small Tx-Tx frequency spacing.
  • 30 W load supplied (other loads or no load as option).

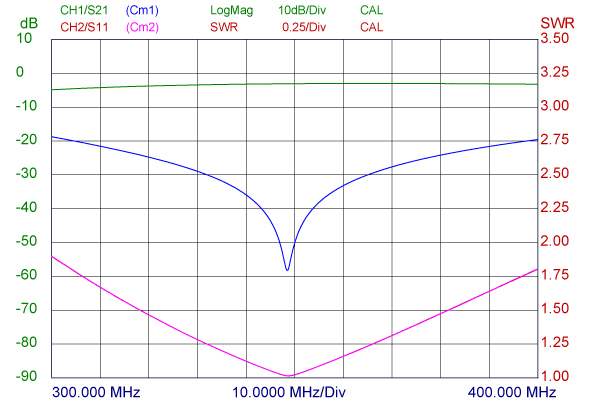

TYPICAL RESPONSE CURVE
