PRO-PHY450-5

5-Channel Hybrid Combiner for 450 MHz Transmitters

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY450-5

Quickly identify the correct ordering code.

PRO-PHY450-5
Electrical
Model PRO-PHY450-5
Filter Type Hybrid Junction
Frequency 380 – 480 MHz
Max. Input Power 37.5 W per channel (max. 125 W with larger load)
Insertion Loss < 7.8 dB ±0.3 dB @ 20 MHz BW
Impedance 50 Ω
Isolation Tx – Tx > 25 dB @ 20 MHz BW
VSWR < 1.5:1 with all other ports terminated with 50 Ω
Load 30 W load fitted (other ratings available)
(** see note)
No. of channels 5
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 510 x 89 (incl. conn.) x 42 mm (excl. load)
20.08 x 3.50 (incl. conn.) x 1.7 in. (wxcl. load)
Weight Approx. 1.625 kg / 3.58 lb.
  • Combining five transmitters or receivers on the same antenna.
  • Better utilisation of good antenna position.
  • Five antennas on the same transmitter or receiver.
  • The only combining option with very small Tx-Tx frequency spacing.
  • 30 W loads included (other loads or no loads as option).

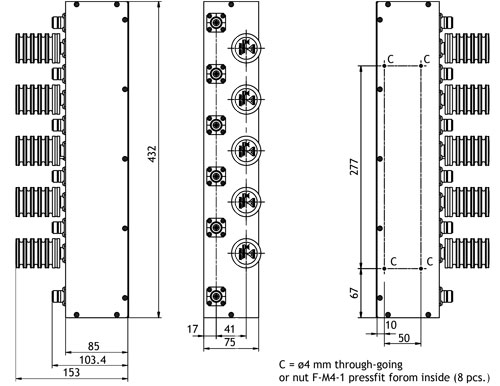

MOUNTING DETAILS_x000d_

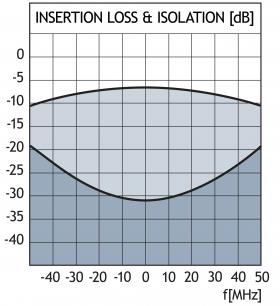

TYPICAL RESPONSE CURVE

Model Product No. Frequency Add To Quote

PRO-PHY450-5-1

 210001383 380 – 400 MHz

PRO-PHY450-5-2

 210001384 390 – 410 MHz

PRO-PHY450-5-3

 210001385 400 – 420 MHz

PRO-PHY450-5-4

 210001386 410 – 430 MHz

PRO-PHY450-5-5

 210001387 420 – 440 MHz

PRO-PHY450-5-6

 210001388 430 – 450 MHz

PRO-PHY450-5-7

 210001389 440 – 460 MHz

PRO-PHY450-5-8

 210001390 450 – 470 MHz

PRO-PHY450-5-9

 210001391 460 – 480 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Note

* The isolation between the Tx ports is directly dependent on the terminating VSWR on the antenna port. With an antenna load VSWR = 1.5, the isolation between the two Tx ports will be reduced to 20 dB @ 5 MHz bandwidth.

** The VSWR of the load’s should be < 1.1! Each load should be able to dissipate 4/5 of the input power. E.g.: With 50 W input, each load should be able to dissipate 50 W x 4/5 = 40 W.
