PRO-PHY450-5SI3/DI3

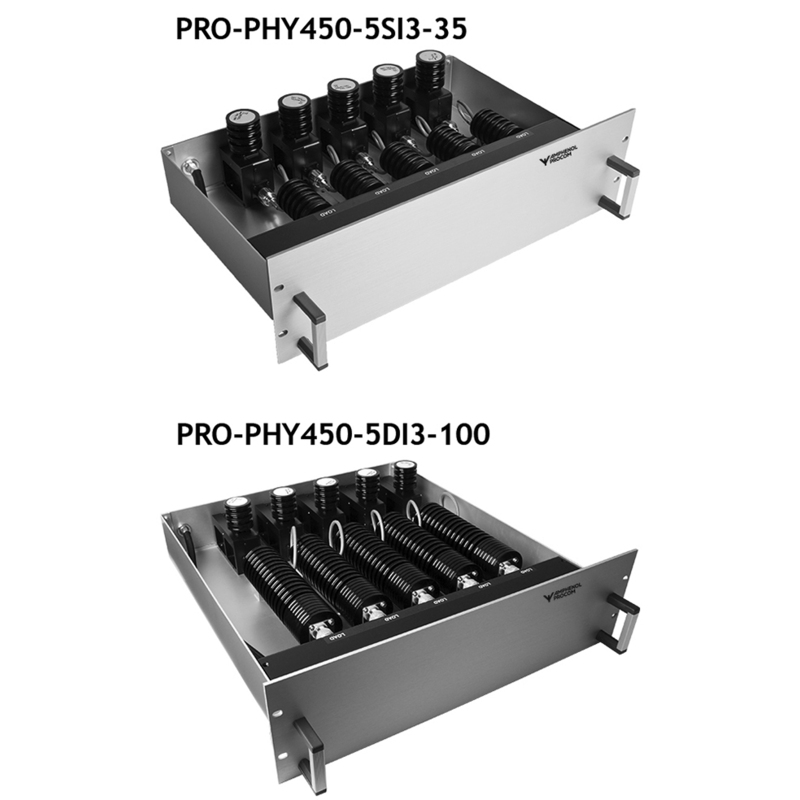

5-Channel Compact Hybrid Combiner with single or dual isolators

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-PHY450-5SI3/DI3

Quickly identify the correct ordering code.

PRO-PHY450-5SI3/DI3
Electrical
Model
PRO-PHY450-5SI3-…PRO-PHY450-5DI3-…
Frequency
380 – 470 MHz380 – 470 MHz
Max. Input Power
35 W / 50 W / 100 W35 W / 50 W / 100 W
Spacing Tx-Tx
< 10 MHz< 10 MHz
Insertion Loss
≤ 8.6 dB≤ 9 dB
Impedance
50 Ω50 Ω
Isolation Tx-Tx
≥ 70 dB≥ 90 dB
VSWR
< 1.5:1< 1.5:1
No. of channels
55
Environmental
Operating temperature range
-30 °C to +60 °C Reduced specifications around the limit temperatures-30 °C to +60 °C Reduced specifications around the limit temperatures
Storage temperature range -30 °C to +60 °C
Mechanical
Connection(s)
N(f)N(f)
Historic Brand Amphenol Procom
Dimensions
35 W :
19″ x 3 HU x 400 mm (482.6 x 132.55 x 400 mm) /
19 x 5.22 x 15.75 in.
50 W :
19″ x 3 HU x 500 mm (482.6 x 132.55 x 500 mm) /
19 x 5.22 x 19.69 in.
100 W :
19″ x 3 HU x 500 mm (482.6 x 132.55 x 500 mm) /
19 x 5.22 x 19.69 in.35 W :
19″ x 3 HU x 400 mm (482.6 x 132.55 x 400 mm) /
19 x 5.22 x 15.75 in.
50 W :
19″ x 3 HU x 500 mm (482.6 x 132.55 x 500 mm) /
19 x 5.22 x 19.69 in.
100 W :
19″ x 3 HU x 500 mm (482.6 x 132.55 x 500 mm) /
19 x 5.22 x 19.69 in.
Weight
35 W : Approx. 10.5 kg / 23.15 lb.
50 W : Approx. 11.75 kg / 25.90 lb.
100 W : Approx. 14 kg / 30.86 lb.35 W : Approx. 11 kg / 24.25 lb.
50 W : Approx. 12.25 kg / 27.01 lb.
100 W : Approx. 15 kg / 33.07 lb.
  • The compact 5-channel hybrid combiner has been designed to help where a physical small size is of great importance. Also the insertion loss is equal and low for all five channels.
  • The hybrid is used where 5 Tx-channels, with very little (or no) frequency spacing, are combined into one antenna.
  • The hybrid combiner is for 19” rack mounting.
  • Choose between Single or Dual isolators.
  • Options: Maximum input of 35, 50 or 100 W.
  • Please specify the frequencies for each Tx when ordering.
