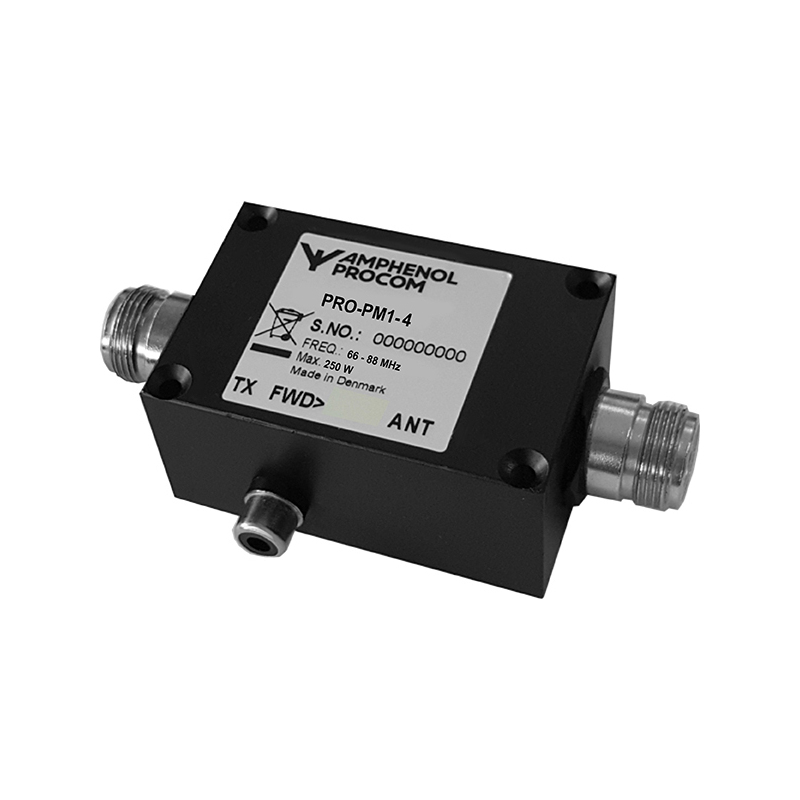

PRO-PM1-4
Electrical
Model PRO-PM1-4
Frequency 66 – 88 MHz
Max. Input Power 250 W
Insertion Loss < 0.1 dB
Impedance 50 Ω
VSWR < 1.1:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 89 x 39.5 x 29 mm /
3.50 x 1.55 x 1.14 in.
Weight Approx. 0.14 kg / 0.31 lb.
  • Compact 1-channel power monitor for the frequency range 66 – 88 MHz.
  • The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the out put.
  • All pro-pm units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
1-Channel Power Monitors 210001310

Login required

You need to be logged in into your account to view downloadable documents.

Mounting details

PRO PM1 holeplacing

All dimensions are given in mm [in.]
