PRO-PM2-2/70-10W
Electrical
Model PRO-PM2-2/70-10W
Frequency 140 – 470 MHz
Max. Input Power 10 W
Insertion Loss Typ. 0.1 dB < 0.3 dB
Impedance 50 Ω
VSWR < 1.25:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 90 x 39.5 x 28 mm /
3.54 x 1.56 x 1.10 in.
Weight Approx. 0.15 kg / 0.33 lb.

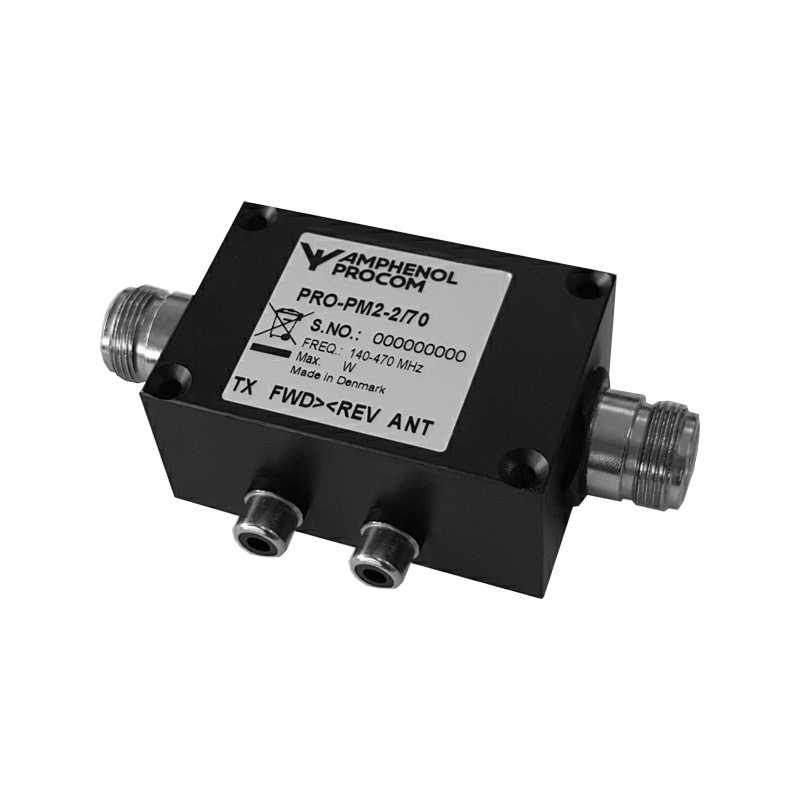

  • Compact bi-directional power monitor for the frequency range 140 – 470 MHz.
  • PRO-PM2-2/70 is adjusted to give 6 V ±0.5 V at 470 MHz and 10 W input power.
  • Typical values of the Tx FWD DC voltage as a function of frequency at 10W input power is shown in the figure below.
  • The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the output.
  • All pro-pm units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports.
