PRO-PM2-2/70-25W

Bi-directional Power Monitors

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PM2-2/70-25W
Electrical
Model PRO-PM2-2/70-25W
Frequency 140 – 470 MHz
Max. Input Power 25 W
Insertion Loss Typ. 0.1 dB < 0.3 dB
Impedance 50 Ω
VSWR < 1.25:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 90 x 39.5 x 28 mm /
3.54 x 1.56 x 1.10 in.
Weight Approx. 0.15 kg / 0.33 lb.
  • Compact bi-directional power monitor for the frequency range 140 – 470 MHz.
  • PRO-PM2-2/70 is adjusted to give 13 V ±0.5 V at 470 MHz and 25 W input power.
  • Typical values of the Tx FWD DC voltage as a function of input power and frequency is shown in the figure below.
  • The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the output.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Bi-directional Power Monitors 210000949

Login required

You need to be logged in into your account to view downloadable documents.

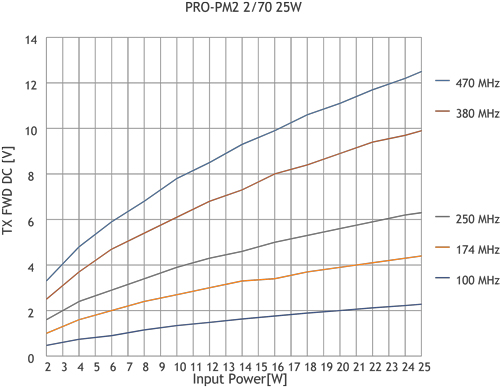

Typical response curve

The maximum Tx FWD DC voltage can be adjusted, if necessary.
In that case, new DC voltage vs. power curves must be made again.

Mounting Details

All dimensions are given in mm [in.]
