PRO-PM2-2/70-50W

Quickly identify the correct ordering code.

PRO-PM2-2/70-50W
Electrical
Model PRO-PM2-2/70
Frequency 140 – 470 MHz
Max. Input Power 50 W
Insertion Loss Typ. 0.1 dB < 0.3 dB
Impedance 50 Ω
VSWR < 1.25:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 90 x 39.5 x 28 mm /
3.54 x 1.56 x 1.10 in.
Weight Approx. 0.15 kg / 0.33 lb.
  • Compact bi-directional power monitor for the frequency range 140 – 470 MHz.
  • PRO-PM2-2/70 is adjusted to give 13 V ±0.5 V at 470 MHz and 50 W input power.
  • Typical values of the Tx FWD DC voltage as a function of input power and frequency is shown in the figure below.
  • The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the output.
  • All pro-pm units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Connection(s) Add To Quote

PRO-PM2-2/70-50W-N(f)-N(f)

 210000956 N(f)-N(f)

PRO-PM2-2/70-50W-N(MF)

 210000966 N(MF)

Login required

You need to be logged in into your account to view downloadable documents.

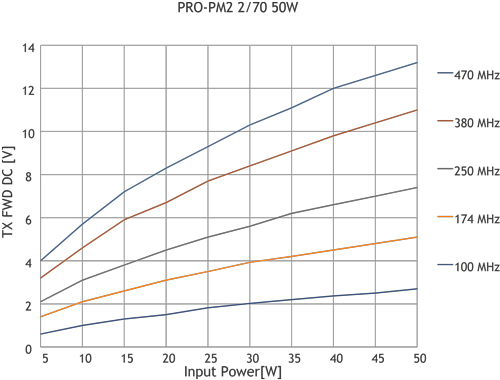

Typical response curve

The maximum Tx FWD DC voltage can be adjusted, if necessary.
In that case, new DC voltage vs. power curves must be made again.

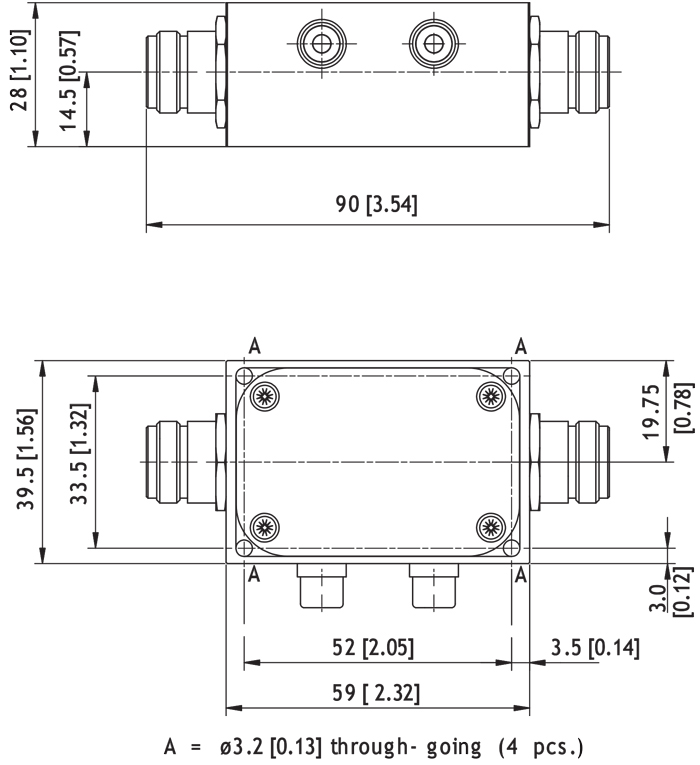

Mounting details

All dimensions are given in mm [in.]
