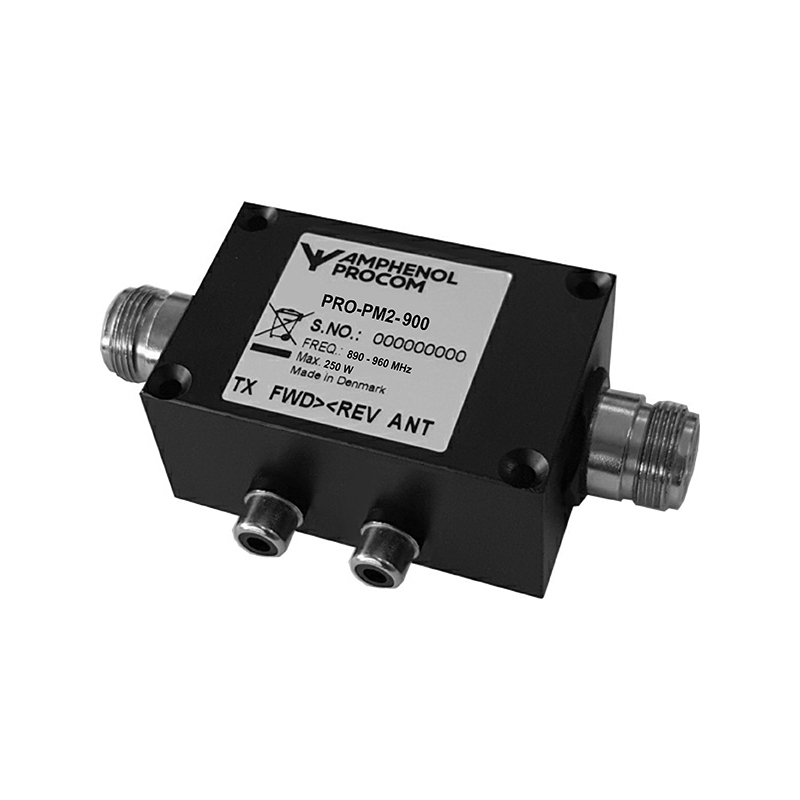

PRO-PM2-900

Bi-directional Power Monitors

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PM2-900
Electrical
Model PRO-PM2-900
Frequency 890 – 960 MHz
Max. Input Power 250 W
Insertion Loss < 0.1 dB
Impedance 50 Ω
VSWR < 1.1:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 89 x 39.5 x 29 mm /
3.50 x 1.55 x 1.14 in.
Weight Approx. 0.15 kg / 0.33 lb.
  • Compact bi-directional power monitor for the frequency range 890 – 960 MHz.
  • The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the out put.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Bi-directional Power Monitors 210000988

Login required

You need to be logged in into your account to view downloadable documents.

MOUNTING DETAILS

PRO PM2 holeplacing

All dimensions are given in mm [in.]
