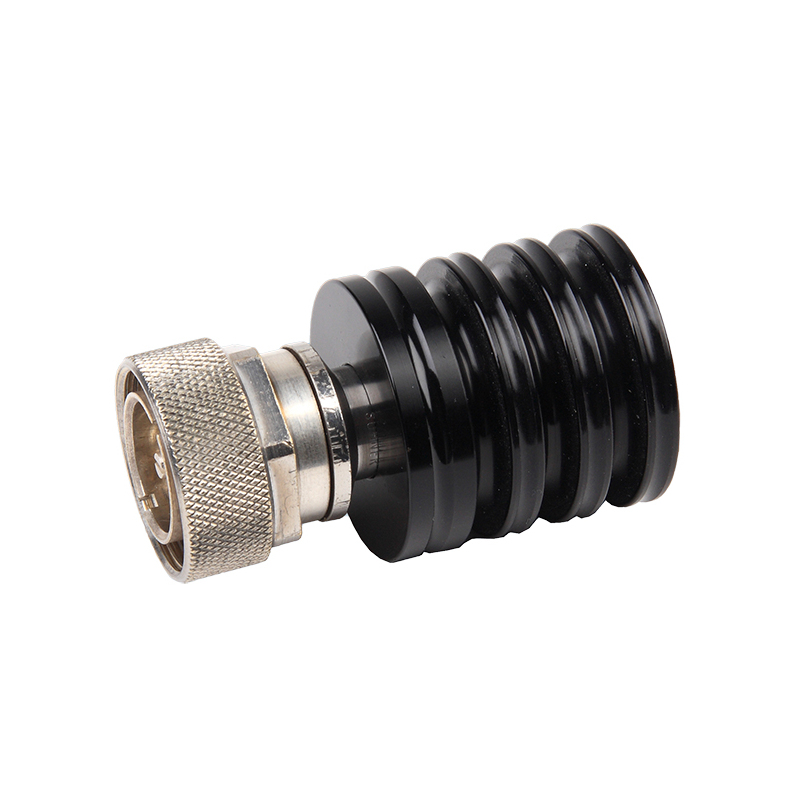

PRO-PRL 15W-7/16
Electrical
Model PRO-PRL 15W-7/16
Frequency 0 – 2000 MHz
Max. Input Power 25 W @ 25-C
Impedance 50 Ω
VSWR < 1.3:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Compliance RoHs, IP65
Connection(s) 7/16 DIN(m)
Historic Brand Amphenol Procom
Dimensions 34.5 x 62.25 mm / 1.36 x 2.45 in.
Weight Approx. 0.15 kg / 0.33 lb.
  • 15 W load capacity at maximum operating temperature.
  • Low VSWR up to 3 GHz.
  • Wide temperature range.
