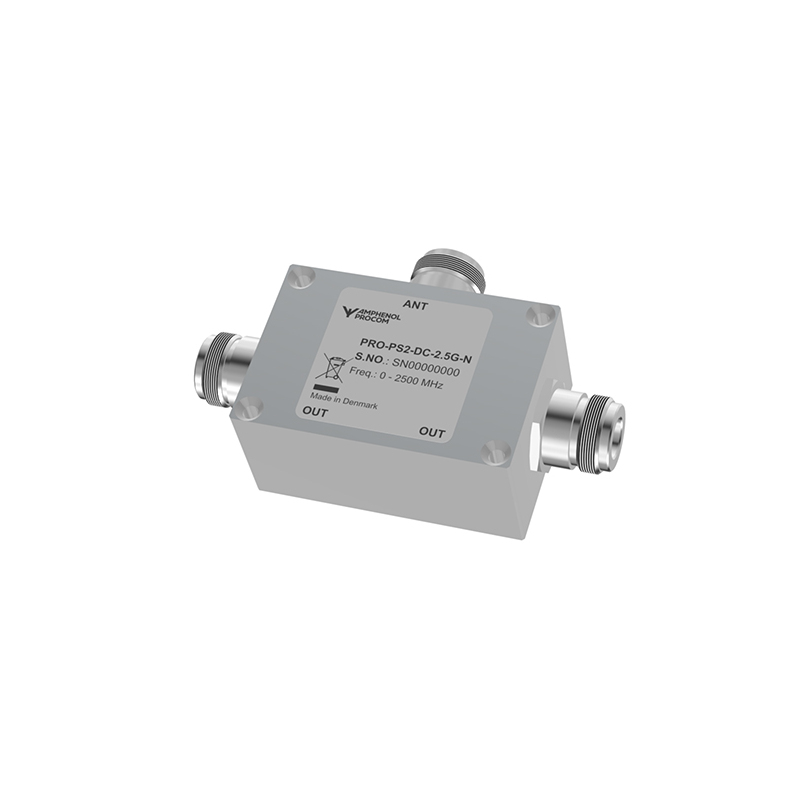

PRO-PS2-DC-2.5G-N

2-Channel equal Power Splitter

Find Out More
Data Sheet
CE Certification

Other Files

PRO-PS2-DC-2.5G-N
Electrical
Model PRO-PS2-DC-2.5G-N
Frequency 0 – 2500 MHz
Max. Input Power 10 W
Impedance 50 Ω
Insertion Loss and Isolation 7.5 dB ± 1.5 dB
Input VSWR 0-2000 MHz : < 1.5:1
2000-2500 MHz : < 2.0:1
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 89 x 39 x 29 mm / 3.50 x 1.54 x 1.14 in.
Weight Approx. 0.15 kg / 0.33 lb.
  • Compact 2-channel resistive power splitter/combiner.
  • Covers the frequency range from 0 – 2500 MHz.
  • Almost no ripple in loss over the entire frequency range.

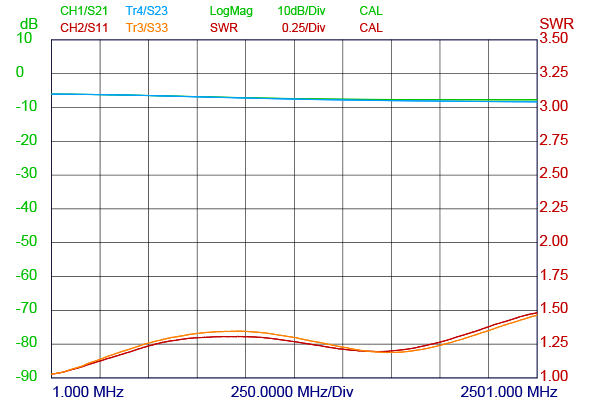

TYPICAL REPONCE CURVE

Model Product No. Add To Quote
2-Channel equal Power Splitter 210001172

Login required

You need to be logged in into your account to view downloadable documents.

Typical response curve
