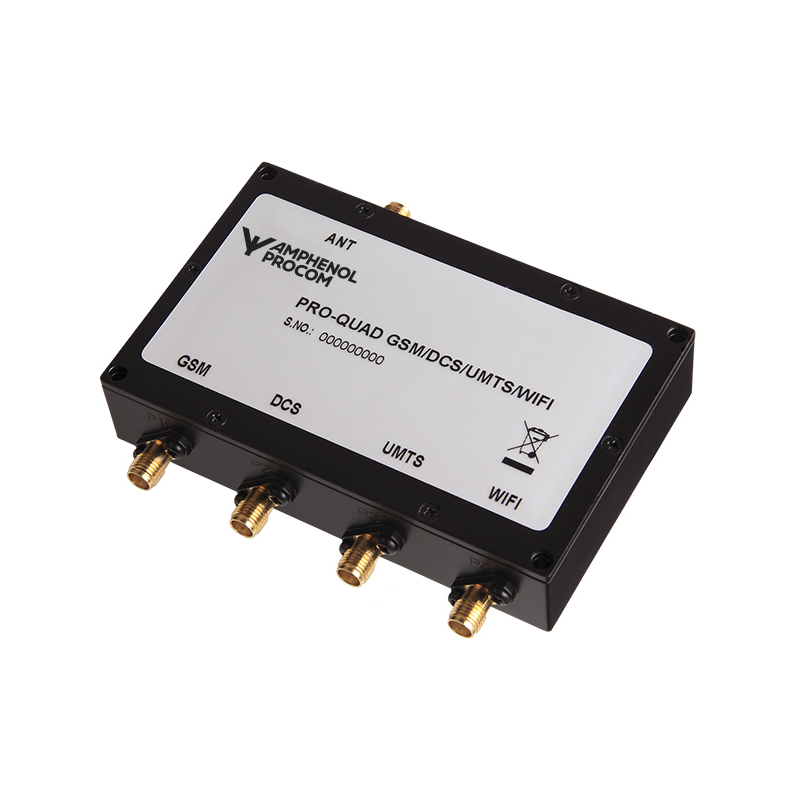

PRO-QUAD GSM/DCS/UMTS/WIFI

Quadroplexer for the 0 – 960 MHz, 1710 – 1880 MHz, 1920 – 2170 MHz and 2400 – 2500 MHz ranges

Find Out More
Data Sheet
CE Certification

Other Files

PRO-QUAD GSM/DCS/UMTS/WIFI
Electrical
Model PRO-QUAD GSM/DCS/UMTS/WIFI
Frequency
0 – 960 MHz1710 – 1880 MHz1920 – 2170 MHz2400 – 2500 MHz
Max. Input Power 3 W
Insertion Loss
1 dB3.5 dB3.5 dB3 dB
Impedance 50 Ω
Attenuation
> 45 dB
Freq. : 1710 – 2500 MHz> 45 dB
Freq. : 0 – 960 MHz
1920 – 2500 MHz> 45 dB
Freq. : 0 – 1880 MHz
2400 – 2500 MHz> 45 dB
Freq. : 0 – 2170 MHz
Ripple
1 dB2 dB2 dB1 dB
VSWR Max. 1.5:1 on all ports
Environmental
Operating temperature range -40 °C to +85 °C
Mechanical
Connection(s) SMA(f)
Historic Brand Amphenol Procom
Dimensions 95 x 79 x 20 mm / 3.74 x 3.11 x 0.79 in. (incl. connectors)
Weight Approx. 0.185 kg / 0.41 lb.
Mounting 3.5 mm / 0.14 in. dia. (4 holes)
  • Quadroplexer for combining or splitting the four ranges 0 – 960 MHz, 1710 – 1880 MHz, 1920 – 2170 MHz and 2400 – 2500 MHz.
  • Low weight.
  • Wide temperature range.
  • Milled aluminium box ensures high mechanical strength.
  • Coated with black vinyl to prevent corrosion.
  • SMA-connectors on all ports (standard).

MOUNTING DETAILS

TYPICAL RESPONSE CURVES for UMTS and WIFI

TYPICAL RESPONSE CURVES for GSM and DCS

Model Product No. Add To Quote
Quadroplexer for the 0 – 960 MHz, 1710 – 1880 MHz, 1920 – 2170 MHz and 2400 – 2500 MHz ranges 200002490

Login required

You need to be logged in into your account to view downloadable documents.

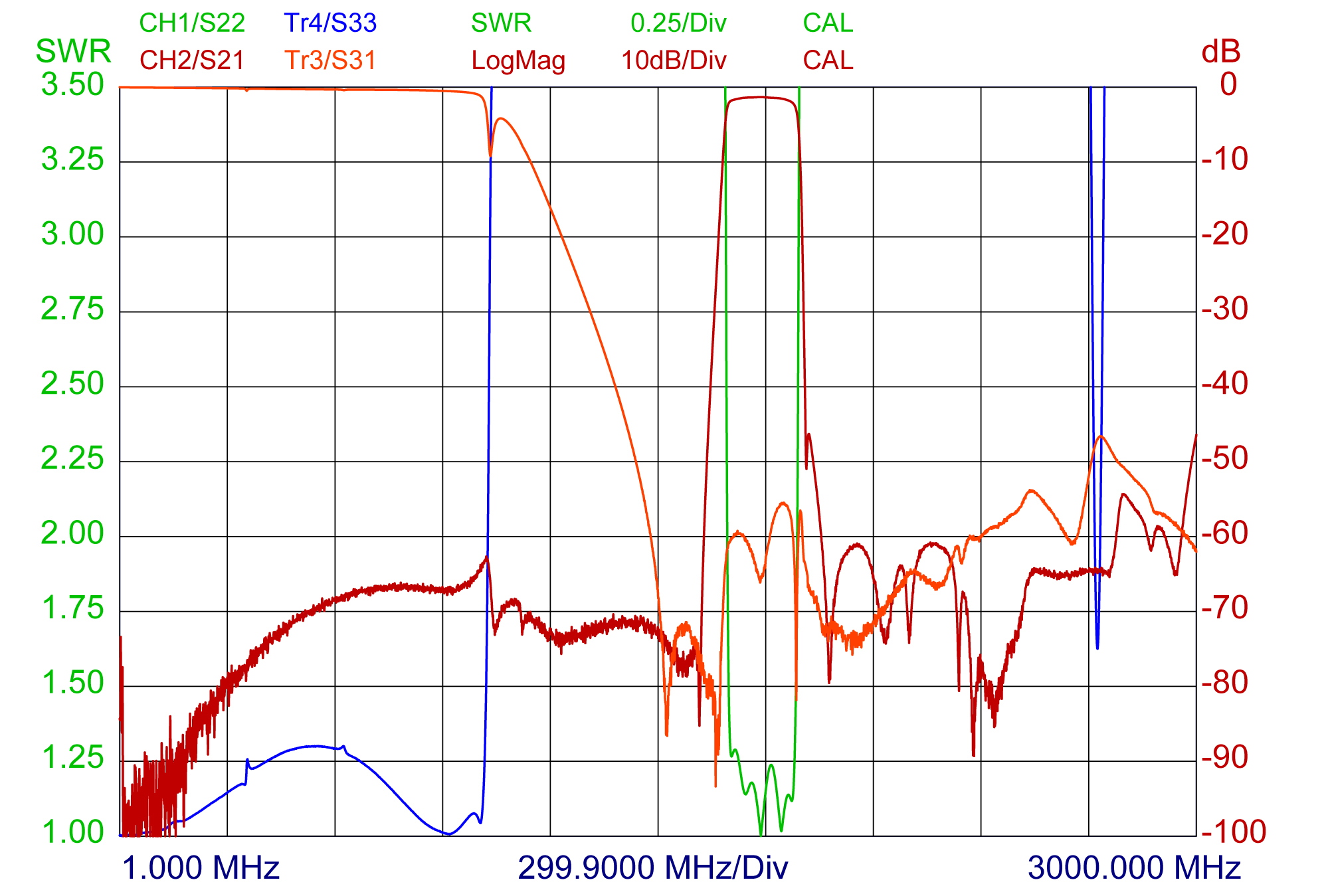

Typical Response curve for GSM and DCS

PRO QUAD GSM!DCS!UMTS!WIFI curve low

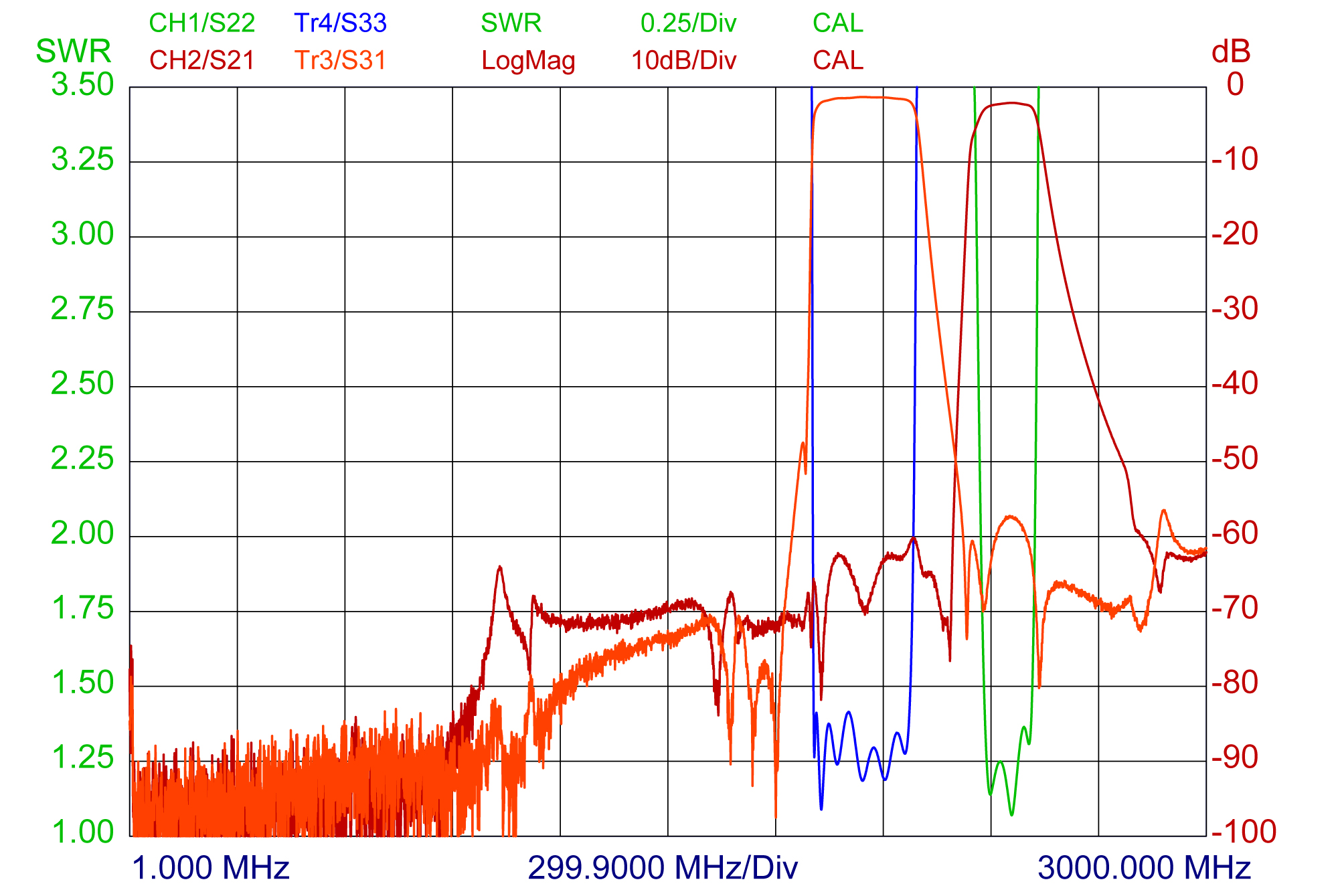

Typical Response curve for UMTS and WIFI

PRO QUAD GSM!DCS!UMTS!WIFI curve high

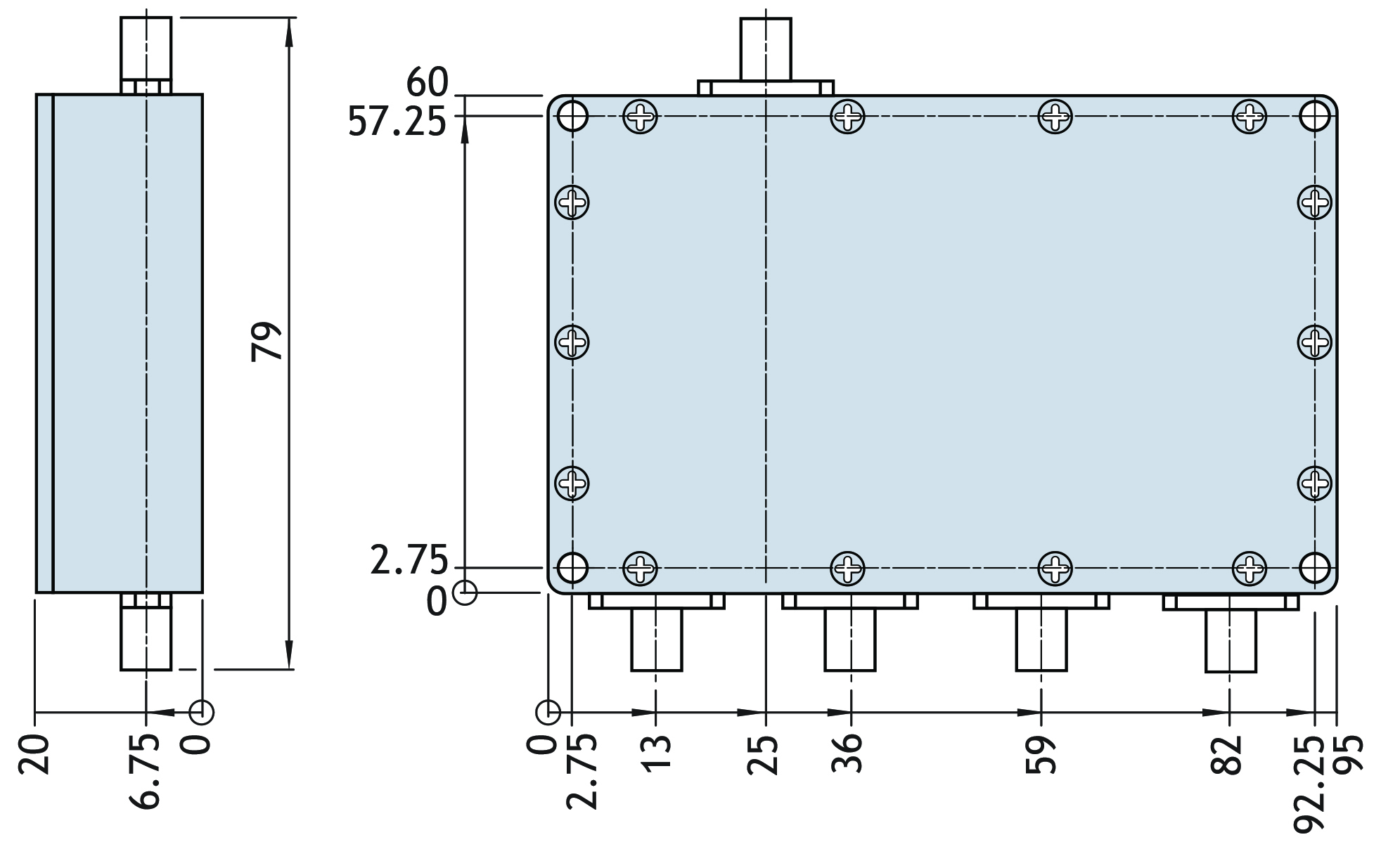

Mounting Details

PRO QUAD GSM!DCS!UMTS!WIFI hole placing

All dimensions are given in mm.
