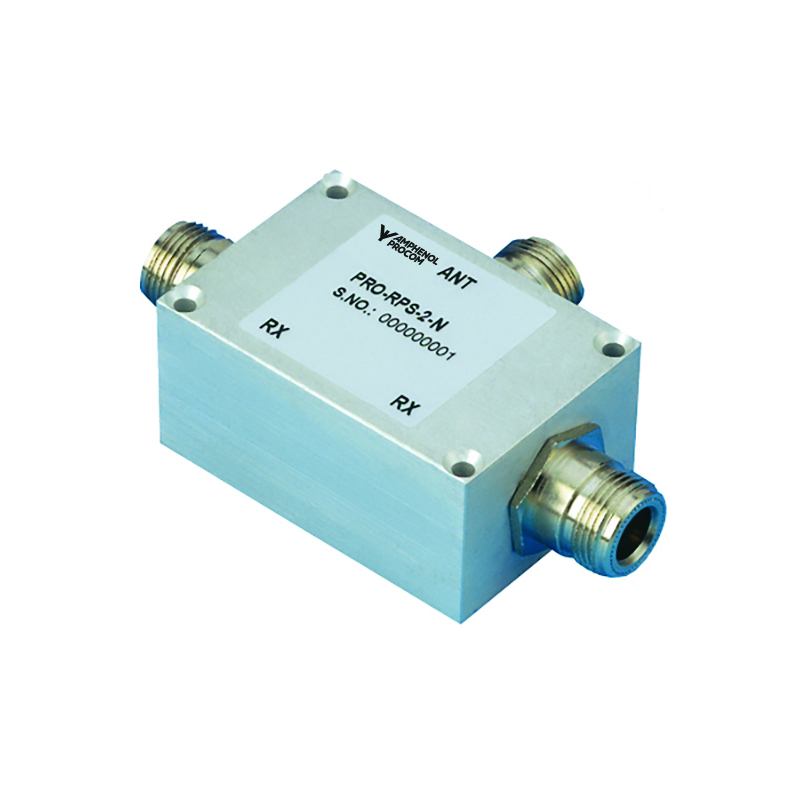

PRO-RPS-2-N

2-Channel Rx Power Splitter

Find Out More
Data Sheet
CE Certification

Other Files

PRO-RPS-2-N
Electrical
Model PRO-RPS-2-N
Frequency 50 – 1000 MHz
Max. Input Power 2 W
Insertion Loss < 4.2 dB
Impedance 50 Ω
Isolation between outputs > 20 dB
VSWR < 1.3:1
No. of channels 2
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 99 x 39 x 28 mm / 3.89 x 1.53 x 1.10 in.
Weight Approx. 0.15 kg / 0.33 lb.
Mounting 3.2 mm / 0.12 in. dia. countersunk (4 holes)
  • Low power, compact 2-channel power splitter/combiner.
  • The splitter covers the frequency range from 50 – 1000 MHz.
  • Almost no ripple in loss and isolation over the entire frequency range.

INSERTION LOSS & ISOLATION

Model Product No. Add To Quote
2-Channel Rx Power Splitter 210000599

Login required

You need to be logged in into your account to view downloadable documents.

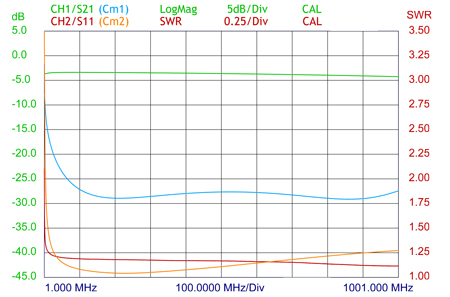

Insertion Loss & Isolation

PRO RPS 2 N swr curve

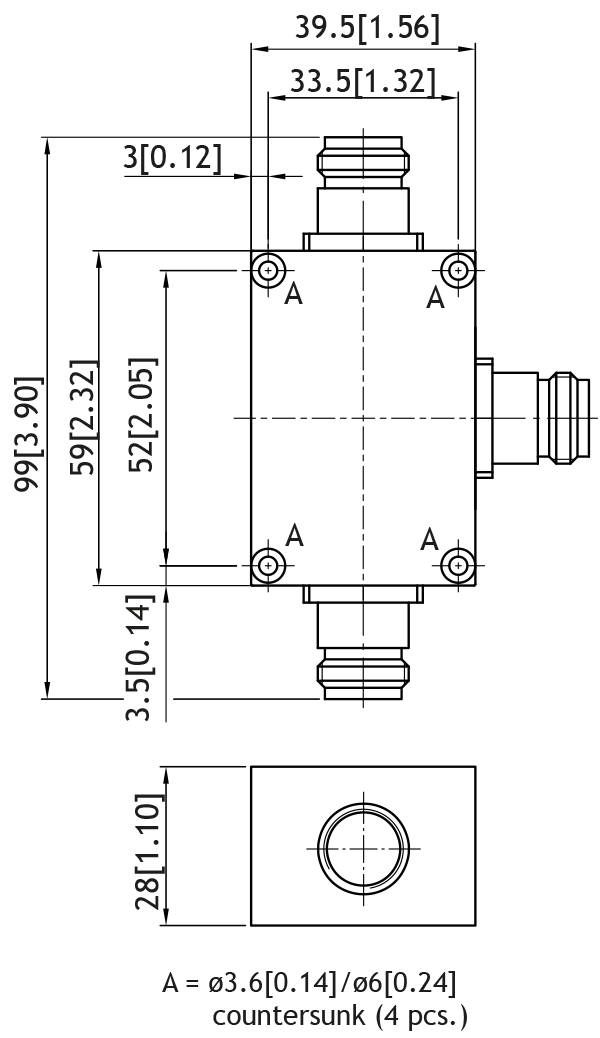

Mounting Details

PRO RPS 2 S N hole placing

All dimensions are given in mm [in.]
