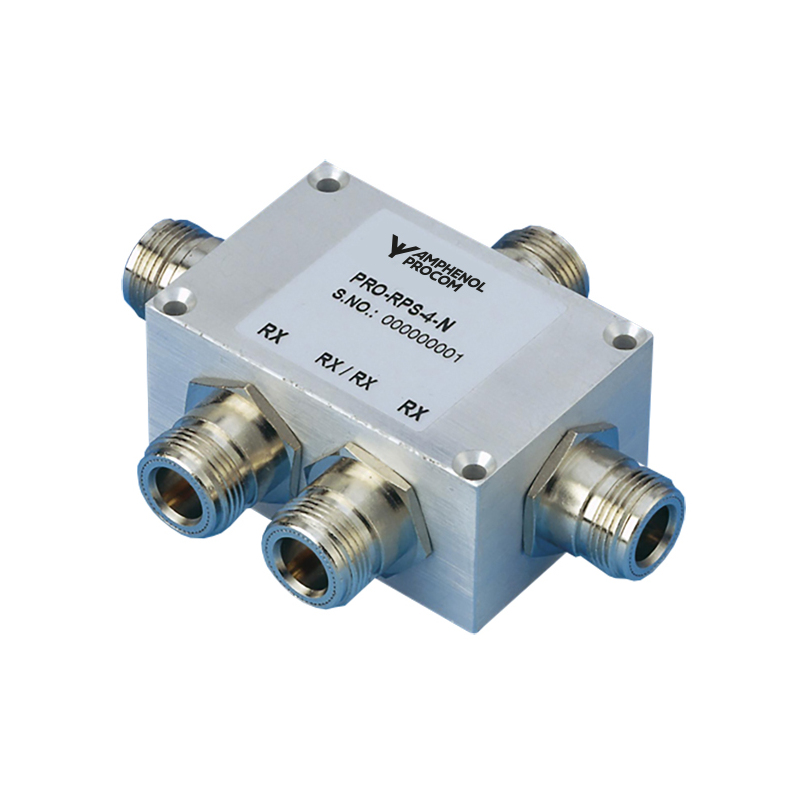

PRO-RPS-4-N

4-Channel RX Power Splitter

Find Out More
Data Sheet
CE Certification

Other Files

PRO-RPS-4-N
Electrical
Model PRO-RPS-4-N
Frequency 50 – 1000 MHz
Max. Input Power 2 W
Insertion Loss < 1.5 dB (Above 6 dB)
Impedance 50 Ω
Isolation between outputs > 20 dB
VSWR < 1.3:1
No. of channels 4
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 89 x 39 x 29 mm /
3.50 x 1.53 x 1.14 in.
Weight Approx. 0.2 kg / 0.44 lb.
  • Low power, compact 4-channel power splitter/combiner.
  • The splitter covers the frequency range from 50–1000 MHz.
  • Almost no ripple in loss and isolation over the entire frequency range.

INSERTION LOSS & ISOLATION

Model Product No. Add To Quote
4-Channel RX Power Splitter 210000593

Login required

You need to be logged in into your account to view downloadable documents.

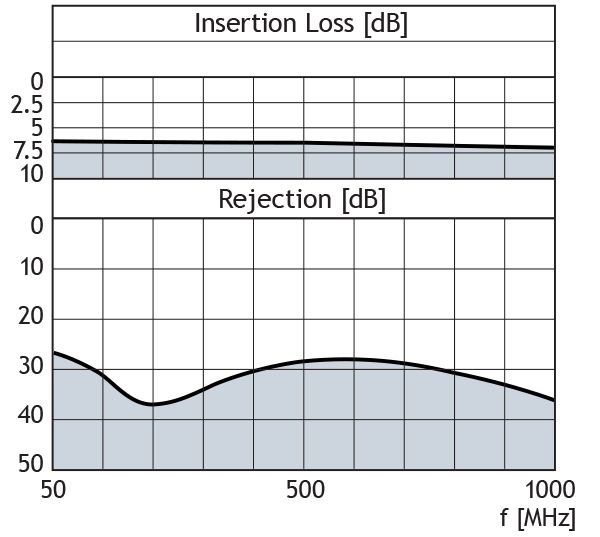

Typical Response curve

PRO RPS 4 N insloss GB
