PRO-RPS-8-GPS-N

8-Channel Rx Power Splitter

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-RPS-8-GPS-N

Quickly identify the correct ordering code.

PRO-RPS-8-GPS-N
Electrical
Model PRO-RPS-8-GPS-N
Frequency 1500 – 1650 MHz
Max. Input Power Max. 0.5 W each port
Insertion Loss 9.5 dB ± 0.5 dB
Isolation between outputs Min. 20 dB typ. 23 dB
Input VSWR < 1.5:1 typ. < 1.3:1
Output VSWR Max. 1.5:1 typ. < 1.3:1
DC Pass See ordering designation
No. of channels 8
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 129 (incl. conn.) x 256 (incl. flanges) x 35 mm /
5.08 x 10.08 x 1.38 in.
Weight Approx. 0.55 kg / 1.21 lb.
  • Passive receiver power splitter.
  • Large frequency range. 1500 MHz to 1650 MHz.
  • High isolation between outputs. > 20 dB.
  • To be used where RF-signals, special GPS-signals shall be divided or combined:
  • more receivers connected to the same coaxial cable
  • more GPS-antennas on the same coaxial cable
  • spectrum analyzer and GPS-receiver on the same coaxial cable.
  • N-female on all ports. (Other connector types on request).
  • Several options for DC-pass available (See ordering designations).

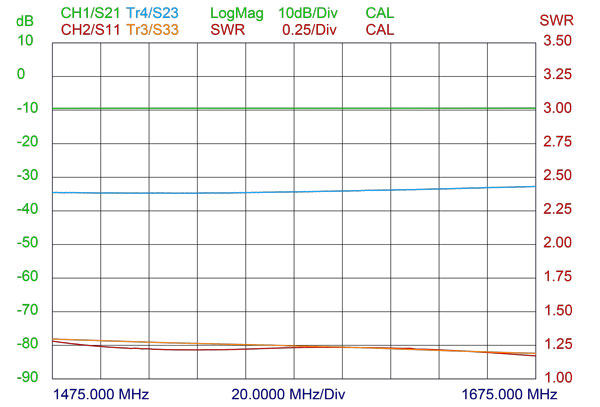

INSERTION LOSS & ISOLATION

MONTAGE DETAILS

All dimensions are given in mm [in.]

All dimensions are given in mm [in.]

Model Product No. Additional Information Add To Quote

PRO-RPS-8-GPS-N

 210000774 DC pass between all ports

PRO-RPS-8-GPS-N-0 DC

 210001295 No DC pass

PRO-RPS-8-GPS-N-8DC

 210003083 DC pass from all RX ports (8 ports) to ANT port, but no DC pass from ANT port to any of the RX ports and no DC pass between any of the RX ports
