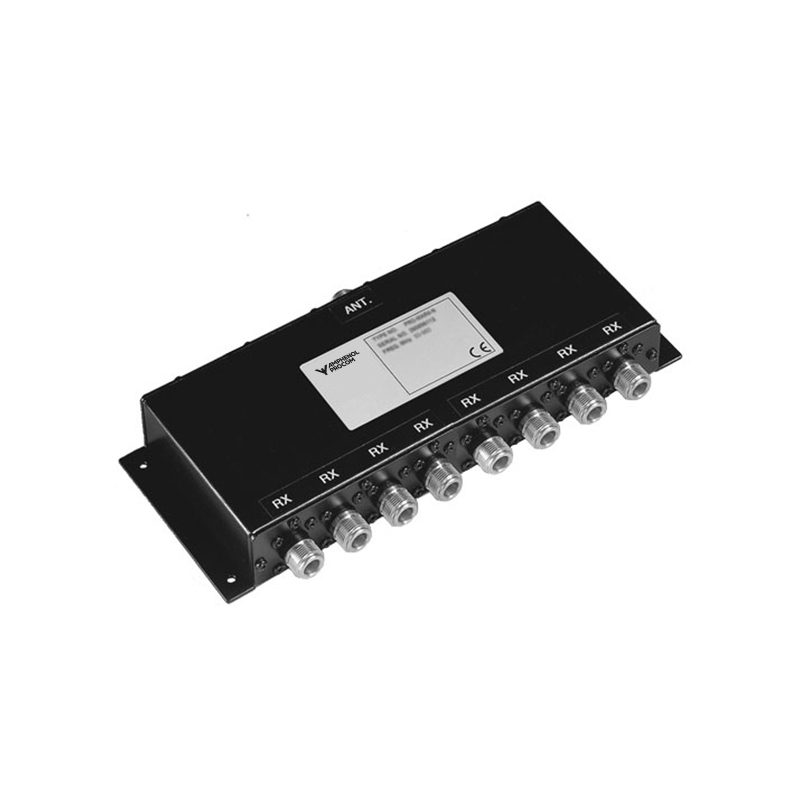

PRO-RPS-8-N

8-Channel passive Rx Power Splitter

Find Out More
Data Sheet
CE Certification

Other Files

PRO-RPS-8-N
Electrical
Model PRO-RPS-8-N
Frequency 50 – 1000 MHz
Max. Input Power Max. 0.5 W each port
Insertion Loss 10 dB ±0.5 dB @ 50 MHz
12 dB ±0.5 dB @ 960 MHz
Isolation between outputs Min. 20 dB
Input VSWR < 2.0:1 typ. < 1.5:1
Output VSWR Max. 1.5:1 typ. < 1.3:1
No. of channels 8
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 129 (incl. conn.) x 256 (incl. flanges) x 35 mm /
5.08 x 10.08 x 1.38 in.
Weight Approx. 0.55 kg / 1.21 lb.
  • Passive wide-band receiver power splitter.
  • Wide frequency range 50 MHz to 1000 MHz.
  • High isolation between outputs.
  • To be used where RF-signals are to be divided or combined:
  • more receivers connected to the same antenna
  • more antenna signals on the same coaxial cable.
  • N-female on all ports. (Other connector types on request).
  • DC-ground on all ports.

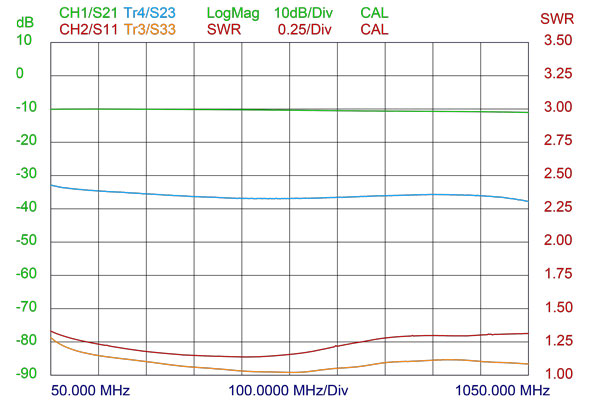

TYPICAL RESPONSE CURVES

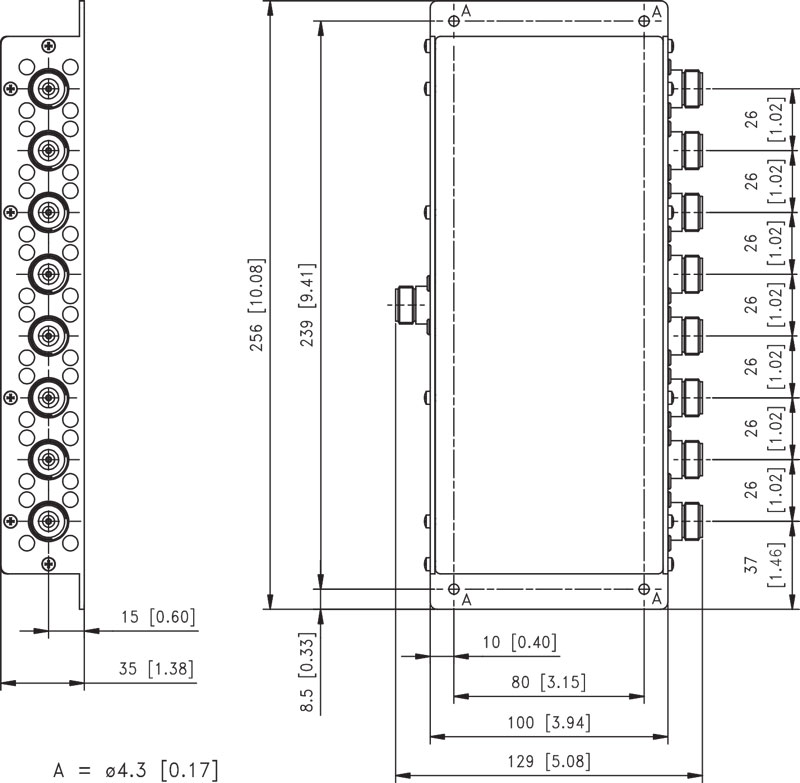

MOUNTING DETAILS

All dimensions are given in mm [in.]

All dimensions are given in mm [in.]
