PRO-TAP 88-5850-…-N

Multiband PowerTapper 88 – 5850 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

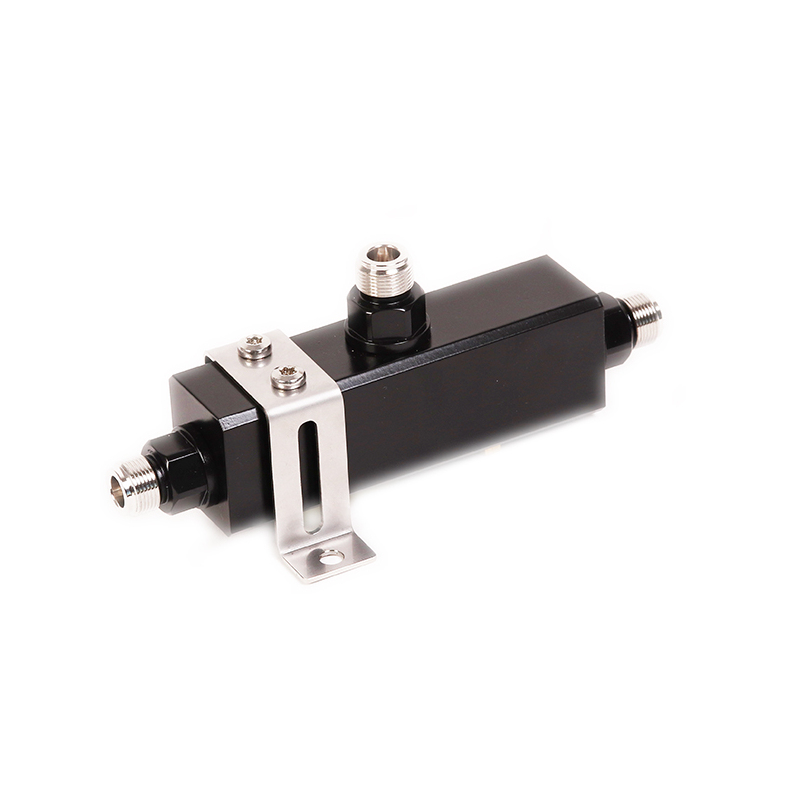

PRO-TAP 88-5850-...-N

Quickly identify the correct ordering code.

PRO-TAP 88-5850-…-N
Electrical
Model PRO-TAP 88-5850-…-N
Frequency 88 – 5850 MHz
Max. Input Power 500 W
Coupling See table for Coupling / Coupling tolerance
Group Delay, Coupled < 0.8 ns
Impedance 50 Ω
Group Delay, Through < 0.6 ns
Total Loss See table for Total Loss
VSWR See table for VSWR
Passive Intermodulation < -153 dBc (2 x 43 dBm)
Environmental
Operating temperature range -30 °C to +60 °C
Mechanical
Compliance RoHS, IP67
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 167 x 32 x 62 mm / 6.57 x 1.26 x 2.44 in.
(without bracket)
Weight Approx. 0.51 kg / 1.12 lb.
Mounting 6.5 mm dia. (two holes)
  • 500 W power tapper with 4.8 to 30 dB coupling covering the 88 – 5850 MHz.
  • Taps off a portion of the signal from the main line.
  • Amphenol Procom tappers are symmetrical around the main line. Meaning that you will have the same good VSWR from both sides of the main line.
  • Excellent high-power performance.
  • Very low insertion loss over the entire frequency range.
  • Power tappers are frequently used in distributed antenna systems in buildings or tunnels. Tappers operate similarly to directional couplers, but without the directivity (no isolation between output port and coupled port) and have relatively broad bandwidths.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

PRO-TAP 88-5850-4.8 dB-N(f)

 210002741 Coupling: 4.8 dB

PRO-TAP 88-5850-6 dB-N(f)

 210002742 Coupling: 6 dB

PRO-TAP 88-5850-8 dB-N(f)

 210002743 Coupling: 8 dB

PRO-TAP 88-5850-10 dB-N(f)

 210002744 Coupling: 10 dB

PRO-TAP 88-5850-15 dB-N(f)

 210002745 Coupling: 15 dB

PRO-TAP 88-5850-20 dB-N(f)

 210002746 Coupling: 20 dB

PRO-TAP 88-5850-30 dB-N(f)

 210002747 Coupling: 30 dB

Login required

You need to be logged in into your account to view downloadable documents.

Table for Coupling / Coupling tolerance
Coupling88 – 150 MHz150 – 380 MHz380 – 1550 MHz1710 – 2700 MHz3400 – 3500 MHz3500 – 4500 MHz5000 – 5850 MHz
4.8 dB +0.5 / +4.0 dB  0.0 / +2.0 dB -1.0 / +1.0 dB -1.0 / +1.7 dB  0.0 / +2.5 dB -1.0 / +1.5 dB -1.5 / +1.7 dB
6 dB +0.5 / +5.0 dB -0.5 / +2.5 dB -1.0 / +1.0 dB -1.0 / +1.0 dB -1.0 / +2.5 dB -1.5 / +1.5 dB -1.5 / +3.0 dB
8 dB +1.0 / +5.0 dB -0.5 / +2.5 dB -1.0 / +1.0 dB -1.0 / +1.0 dB -1.0 / +2.5 dB -2.5 / +1.5 dB -2.5 / +2.5 dB
10 dB +1.0 / +5.0 dB -0.5 / +2.5 dB -1.0 / +1.0 dB -1.0 / +1.5 dB -1.5 / +1.5 dB -2.0 / +1.0 dB -2.5 / +3.0 dB
15 dB  0.0 / +4.0 dB -0.5 / +1.5 dB -1.0 / +1.0 dB -1.5 / +1.5 dB -3.0 / +0.5 dB -3.5 / +0.0 dB -3.5 / +2.5 dB
20 dB -0.5 / +2.0 dB -1.0 / +1.0 dB -1.0 / +1.0 dB -1.0 / +2.0 dB -6.5 / -2.0 dB -5.5 / -0.5 dB -4.5 / +2.5 dB
30 dB -3.0 / +1.5 dB -3.0 / +1.5 dB -3.0 / +1.5 dB -3.0 / +4.0 dB -16.0 / -6.0 dB -11.0 / -1.0 dB -10.0 / +6.0 dB
Table for Total Loss
 Coupling88 – 1550 MHz1710 – 2700 MHz3400 – 3500 MHz3500 – 4500 MHz5000 – 5850 MHz
4.8 dB < 2.10 dB < 2.30 dB < 2.80 dB < 3.00 dB < 3.50 dB
6 dB < 1.75 dB < 1.90 dB < 2.30 dB < 2.30 dB < 2.30 dB
8 dB < 1.10 dB < 1.30 dB < 1.50 dB < 1.50 dB < 1.60 dB
10 dB < 0.65 dB < 0.75 dB < 0.90 dB < 0.95 dB < 1.20 dB
15 dB < 0.30 dB < 0.30 dB < 0.50 dB < 0.50 dB < 0.60 dB
20 dB < 0.25 dB < 0.25 dB < 0.35 dB < 0.35 dB < 0.55 dB
30 dB < 0.15 dB < 0.20 dB < 0.50 dB < 0.40 dB < 0.50 dB
Table for VSWR
 Coupling88 – 1550 MHz1710 – 2700 MHz3400 – 4500 MHz5000 – 5850 MHz
4.8 dB < 1.65 < 1.70 < 1.80 < 2.00
6 dB < 1.50 < 1.60 < 1.70 < 1.80
8 dB < 1.35 < 1.40 < 1.50 < 1.50
10 dB < 1.25 < 1.35 < 1.40 < 1.45
15 dB < 1.20 < 1.25 < 1.40 < 1.50
20 dB < 1.20 < 1.20 < 1.40 < 1.50
30 dB < 1.20 < 1.20 < 1.40 < 1.50

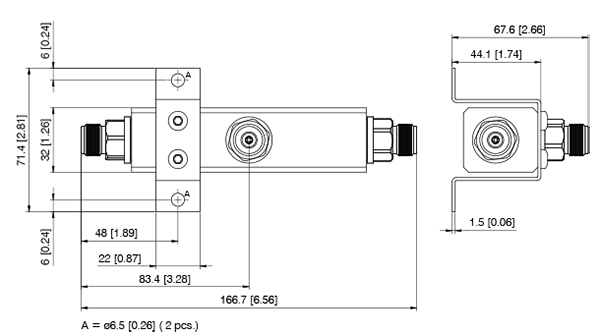

Mounting Details standard Bracket

PRO TAP 88 5850 N Holeplacing Standard
All dimensions are given in mm [in.]

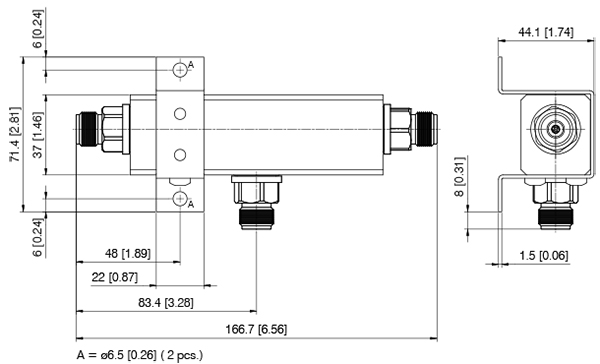

Mounting Details standard Bracket for side mounting

 PRO TAP 88 5850 N Holeplacing Side
All dimensions are given in mm [in.]

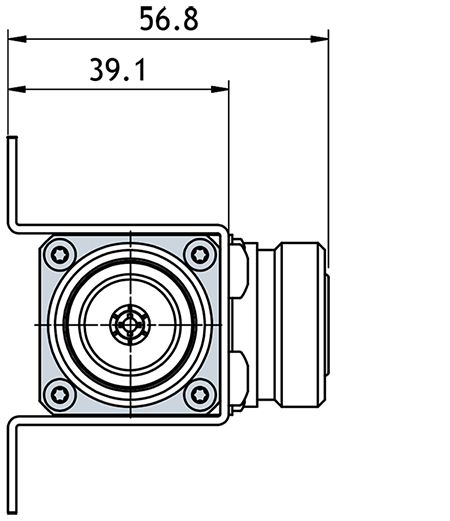

Accessories: TB-39 Bracket

Extra High

PRO TAP 150 2700 TB 39
