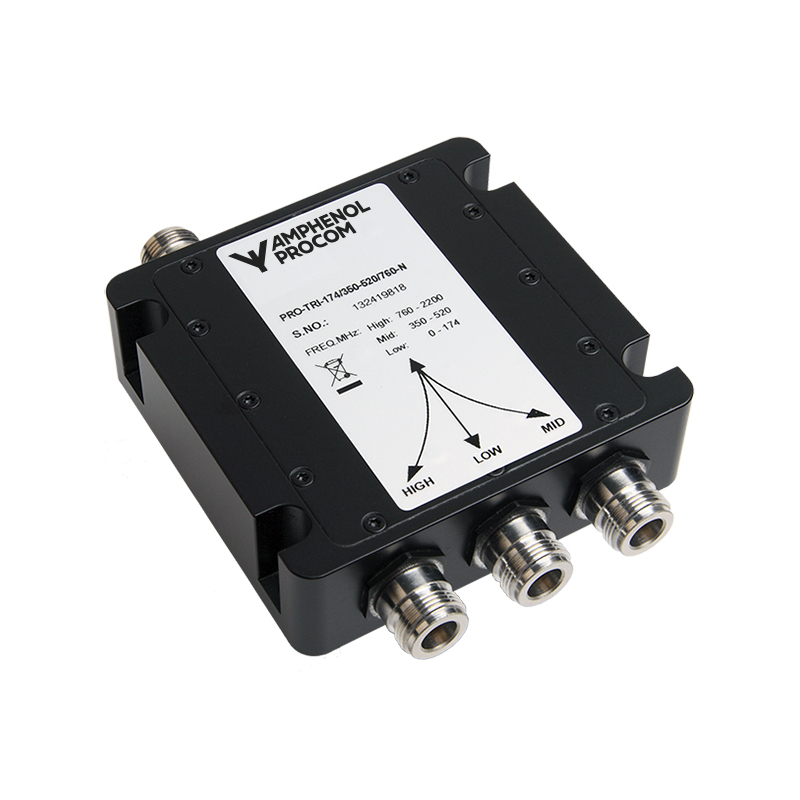

PRO-TRI 174/350-520/760

60 W Triplexer for the 0 – 174 MHz, 350 – 520 MHz and 760 – 2200 MHz Ranges Tanges

Find Out More
Data Sheet
CE Certification

Other Files

PRO-TRI 174/350-520/760
Electrical
Model PRO-TRI 174/350-520/760
Frequency COM-LOW port: 0 – 174 MHz
COM-MID port: 350 – 520 MHz
COM-HIGH port: 760 – 2200 MHz
Max. Input Power 60 W CW simultaneously on both HIGH, MID and LOW port
Insertion Loss 0 – 174 MHz: ≤ 0.5 dB
350 – 520 MHz: ≤ 0.8 dB
760 – 2200 MHz: ≤ 1.1 dB
Impedance 50 Ω
VSWR LOW port: Max. 1.5:1
MID port: Max. 1.5:1
HIGH port: 760 – 2000 MHz: Max. 1.5:1
2000 – 2200 MHz: Max. 2.0:1
Environmental
Operating temperature range -40 °C to +80 °C
Ingress Protection IP65
Mechanical
Connection(s) N(f)
Historic Brand Procom
Dimensions 127 x 100 x 30 mm / 5.0 x 3.94 x 1.18 in. (incl. connectors)
Weight 0.6 kg / 1.32 lb.
Mounting 4.1 mm dia. (4 holes)
  • Triplexer for combining or splitting the three ranges:
  • VHF, 0 – 174 MHz
  • UHF, 350 – 520 MHz
  • LTE800, GSM900, GSM1800, UMTS, 760 – 2200 MHz.
  • Chebychev design ensures very high isolation across the entire pass
  • ranges.
  • High power handling capability.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Milled aluminium box ensures extraordinarily high mechanical strength.
  • Coated with 2-component lacquer for maximum weather protection.
  • N-connectors on all ports.

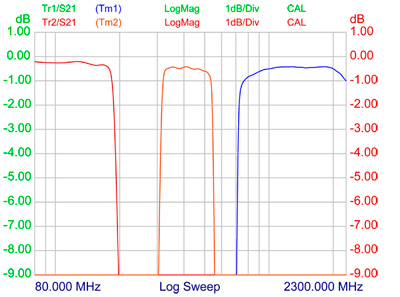

TYPICAL RESPONSE CURVES

TYPICAL RESPONSE CURVES

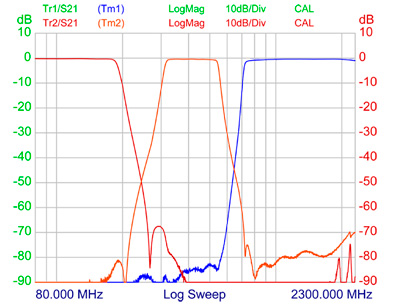

PORT ATTENUATION [dB]

PORT ATTENUATION [dB]

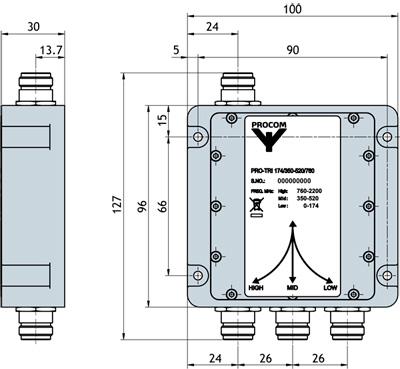

MOUNTING DETAILS
