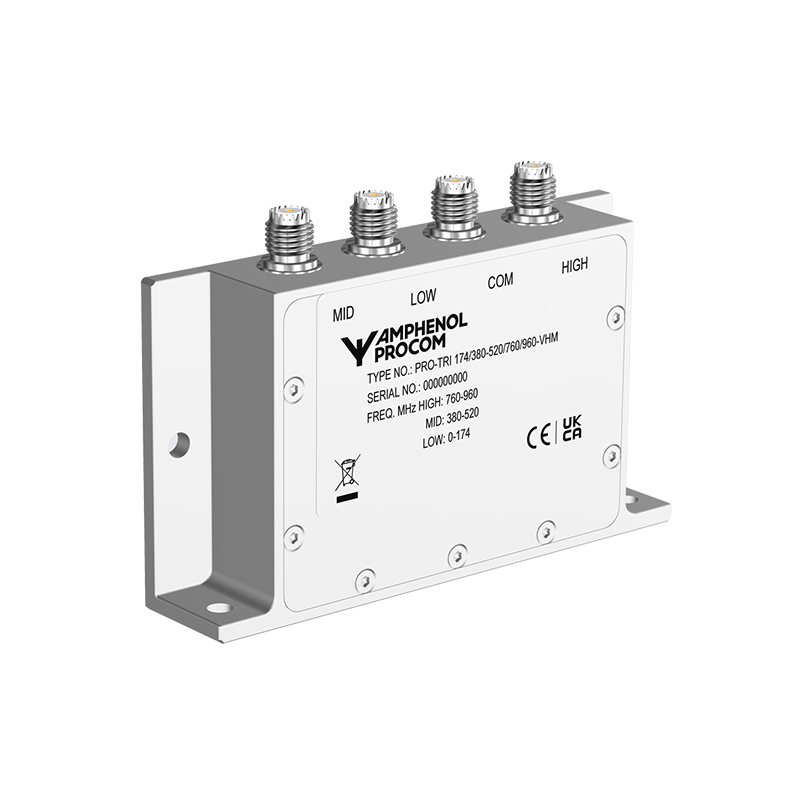

PRO-TRI 174/380-520/760-960-VHM

Triplex Filter 30 W for the 0 – 174 MHz, 380 – 520 MHz and 760 – 960 MHz frequency ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-TRI 174/380-520/760-960-VHM

Quickly identify the correct ordering code.

PRO-TRI 174/380-520/760-960-VHM
Electrical
Model PRO-TRI 174/380-520/760-960-VHM
Frequency COM-LOW port : 0 – 174 MHz
COM-MID port : 380 – 520 MHz
COM-HIGH port : 760 – 960 MHz
Max. Input Power 30 W CW (Composite = Total power all ports together @ 100% duty cycle time)
Max. Input Power Per Ch. LOW port : 30 W CW
MID port : 30 W CW
HIGH port : 30 W CW
Insertion Loss COM-LOW port : 0 – 174 MHz : ≤ 0.7 dB
COM-MID port : 380 – 520 MHz : ≤ 0.9 dB
COM-HIGH port : 760 – 960 MHz : ≤ 1.0 dB
Impedance 50 Ω
Isolation > 50 dB
VSWR < 1.5:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP64
Mechanical
Connection(s) Mini-UHF(f) on all ports
Historic Brand Amphenol Procom
Dimensions 120 x 79 x 25 mm / 4.72 x 3.12 x 0.98 in. (incl. conn.)
Weight 0.3 kg / 0.66 lb.
Mounting 5.2 mm / 0.20 in. dia. (4 holes)
  • The Triplex Filter can be used for combining three radios (high, low and mid band radios) into the COM port to one broad banded antenna or for splitting one radio on the COM port (communicating on all three bands) into three antennas, a high, low and mid band antenna.
  • Triplexer for combining or splitting the three ranges:
  • 0 – 174 MHz
  • 380 – 520 MHz
  • 760 – 960 MHz.
  • Chebychev design ensures very high isolation across the entire pass ranges.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Aluminium box ensures extraordinarily high mechanical strength.
  • For sustainability reasons we do not paint the filter, but it is given a chromital surface threatment, which makes the surface strong and prevent oxidation of the alu.-filterhouse.
  • The filter can easily be grounded through e.g. the mounting screw holes as the chromital surface of the house is conductive.
  • The Triplexer can be mounted both vertically or horizontally. (VHM = Vertically or Horizontally Mounted).
  • The Triplexer is fitted with Mini-UHF female connectors. For other connectors, please ask Customer Service for availability.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

PRO-TRI 174/380-520/760-960-VHM-Mini-UHF(f)

 200002913 30 W CW Composite

PRO-TRI 174/380-520/760-960-VHM-Mini-UHF(f) + cable

 210002915 Triplex Filter incl. cable. (Cable p. no. 210002981)

Login required

You need to be logged in into your account to view downloadable documents.

Typical S-Parameter curve

EQ000103A02-swr

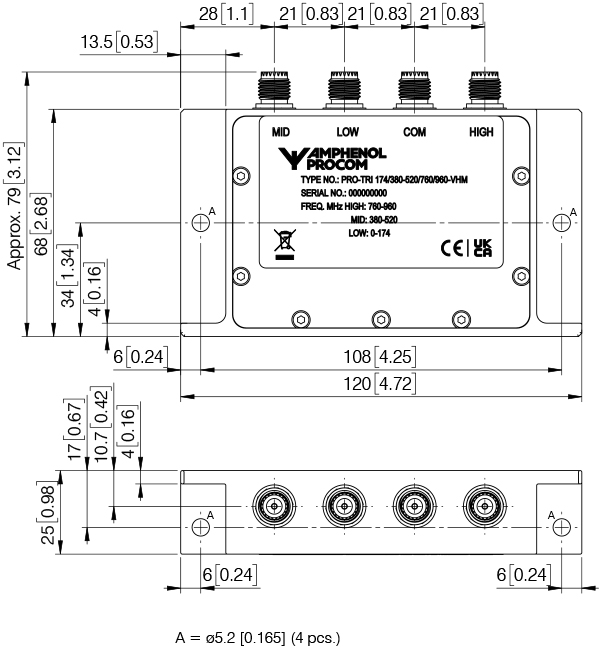

Mechanical Outline

PRO TRI 174!380 520!760 960 VHM Holeplacing

All dimensions are given in mm [in.]
