PRO-TRI 174/380-520/760-960

30/150 W Triplexers for the 0-174 MHz, 380-520 MHz and 760-960 MHz Ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-TRI 174/380-520/760-960

Quickly identify the correct ordering code.

PRO-TRI 174/380-520/760-960
Electrical
Model
PRO-TRI 174/380-520/760-960-SMAPRO-TRI 174/380-520/760-960-SMA HP
Frequency COM-LOW port: 0-174 MHz
COM-MID port: 380-520 MHz
COM-HIGH port: 760-960 MHz
Max. Input Power
30 W150 W
Max. Input Power Per Ch.
LOW port: 30 W
CW MID port: 30 W CW
HIGH port: 30 W CWLOW port: 150 W CW
MID port: 150 W CW
HIGH port: 75 W CW
Insertion Loss COM-LOW port: 0-174 MHz: ≤ 0.4 dB
COM-MID port: 380-520 MHz: ≤ 0.6 dB
COM-HIGH port: 760-960 MHz: ≤ 0.7 dB
Impedance 50 Ω
Isolation > 50 dB
VSWR < 1.5:1
Environmental
Operating temperature range -30 to 60 °C
Ingress Protection IP64
Mechanical
Connection(s) SMA female on all ports
Historic Brand Procom
Dimensions
115 x 88 x 25 mm / 4.5 x 3.5 x 0.9″ (incl. connectors)115 x 88 x 65 mm / 4.5 x 3.5 x 2.5″ (incl. connectors)
Weight
Approx. 265 g / 0.6 lbApprox. 580 g / 1.3 lb
Mounting ø5.0 mm (2 holes)
  • Triplexer for combining or splitting the three ranges:
  • 0 – 174 MHz
  • 380 – 520 MHz
  • 760 – 960 MHz.
  • 2 versions:
  • Max. composite input power 30 W
  • Max. composite input power 150 W
  • Chebychev design ensures very high isolation across the entire pass ranges.
  • High Power handling capability.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Aluminium box ensures extraordinarily high mechanical strength.
  • Black vinyl coated to prevent corrosion.
  • SMA(f) connectors on all ports.
  • 150 W version provided with heatsink.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

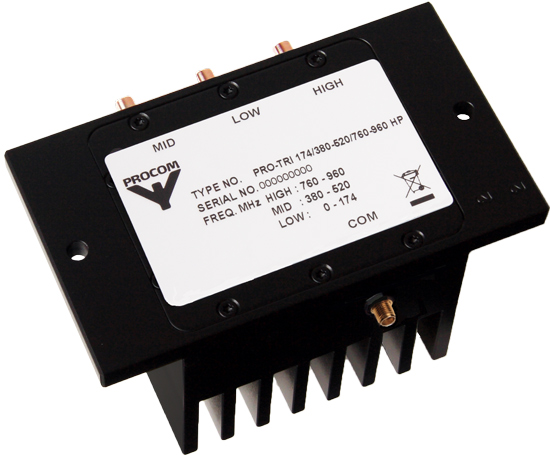

PRO-TRI 174/380-520/760-960-SMA HP

 200002727 150 W

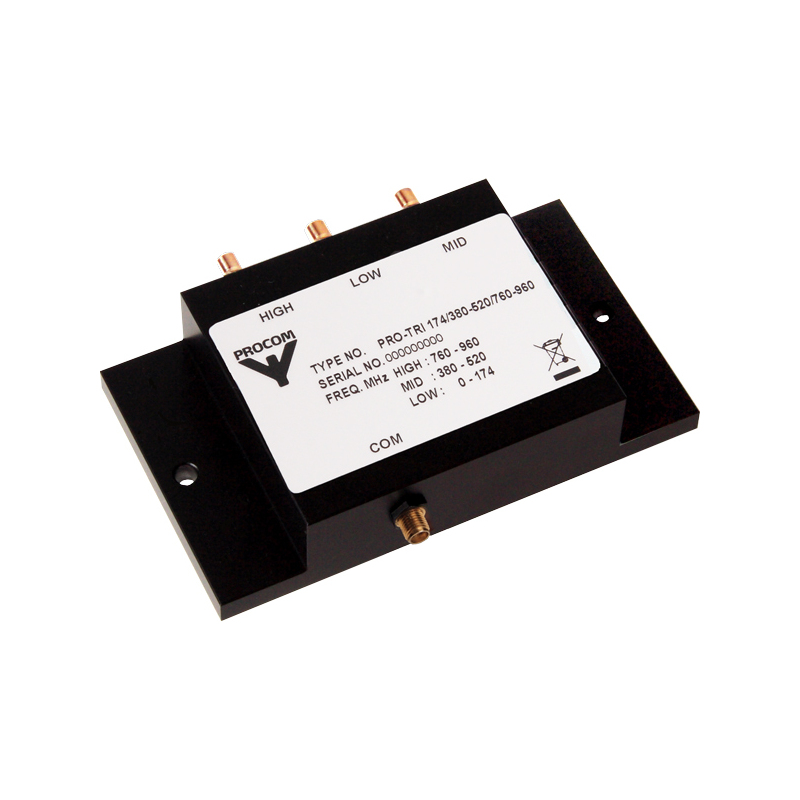

PRO-TRI 174/380-520/760-960-SMA

 200002726 30 W

Login required

You need to be logged in into your account to view downloadable documents.

PRO-TRI 174/380-520/760-960-SMA HP:

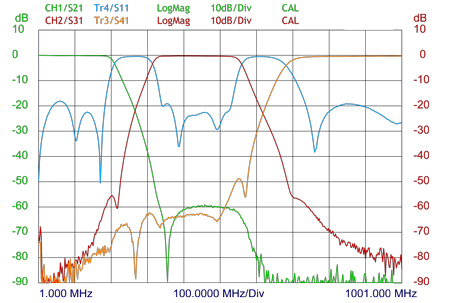

Typical S-Parameter Curves

EQ000103A02-swr

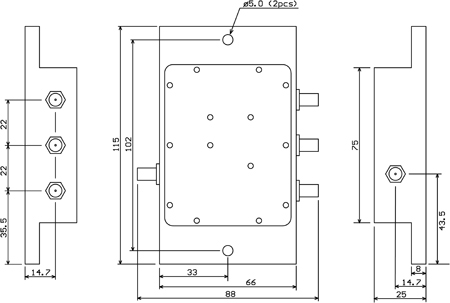

Mechanical Outline

PRO-TRI 174/380-520/760-960-SMA:

EQ000103A01-mechanical


PRO-TRI 174/380-520/760-960-SMA HP:

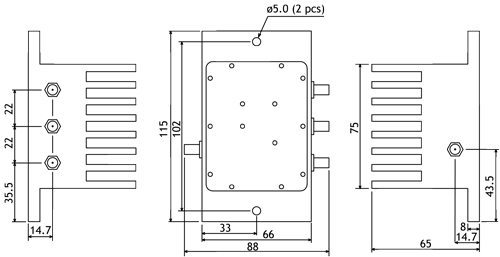

EQ000103A02-dimension
