PRO-TRI 60/80-100/120-…

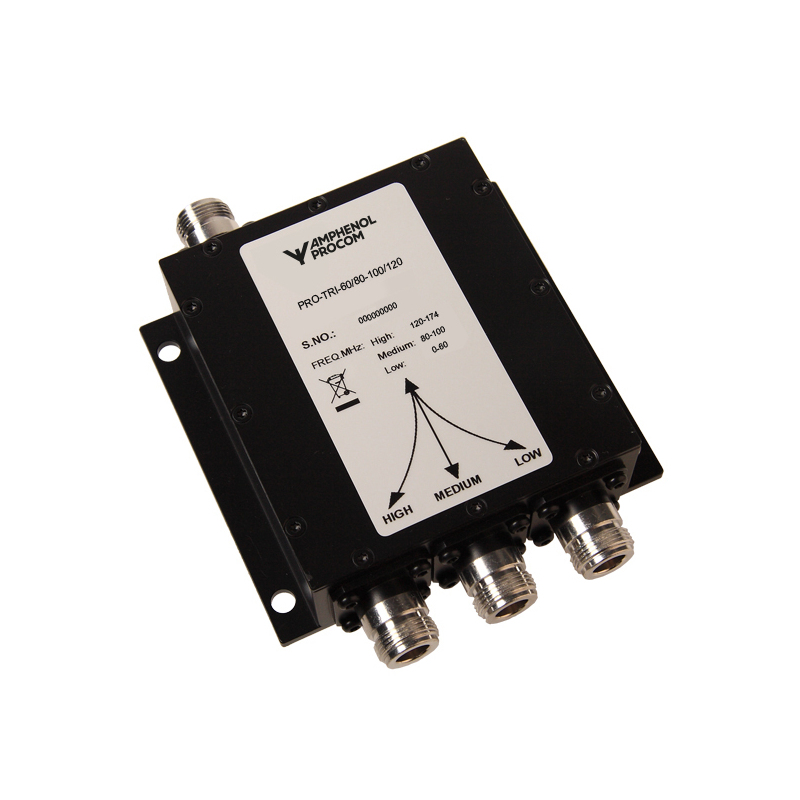

50 W Triplexer for the 0-60 MHz / 80-100 MHz and 120-960 MHz Tanges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-TRI 60/80-100/120-...

Quickly identify the correct ordering code.

PRO-TRI 60/80-100/120-…
Electrical
Model PRO-TRI 60/80-100/120-…
Frequency COM-LOW port : 0 – 60 MHz
COM-MEDIUM port : 80 – 100 MHz
COM-HIGH port : 120 – 960 MHz
Max. Input Power 50W CW simultaneously on both HIGH, MEDIUM and LOW port
Insertion Loss 0 – 60 MHz : 0.6 dB
80 – 100 MHz : 1.0 dB
120 – 960 MHz : 0.7 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Operating temperature range -40 °C to +60 °C
Ingress Protection IP62
Mechanical
Connection(s) INPUT : N(f)
OUTPUT : N(f)
(Other types available on request)
Historic Brand Amphenol Procom
Dimensions 133 x 106 x 31 mm /
5.24 x 4.17 / 1.22 in. (incl. connectors and flanges)
Weight Approx. 0.475 kg / 1.05 lb.
Mounting 4.3 mm dia. (4 holes)
  • Triplexer for combining or splitting the three ranges 0 – 60 MHz,
  • 80 – 100 MHz and 120 – 960 MHz.
  • Chebychev design ensures very high isolation across the whole pass ranges.
  • High power handling capability.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Milled aluminium box ensures extraordinarily high mechanical strength.
  • Black vinyl-coated to prevent corrosion.
  • N-connectors on all ports (standard).
  • Also available with SMA-, TNC- or BNC- connector types.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Model Add To Quote

PRO-TRI 60/80-100/120-N

 200002324 PRO-TRI 60/80-100/120-N

PRO-TRI 60/80-100/120-SMA

 200002301 PRO-TRI 60/80-100/120-SMA

PRO-TRI 60/80-100/120-TNC

 200002325 PRO-TRI 60/80-100/120-TNC

PRO-TRI 60/80-100/120-BNC

 200002326 PRO-TRI 60/80-100/120-BNC

Login required

You need to be logged in into your account to view downloadable documents.

Typical Response Curves

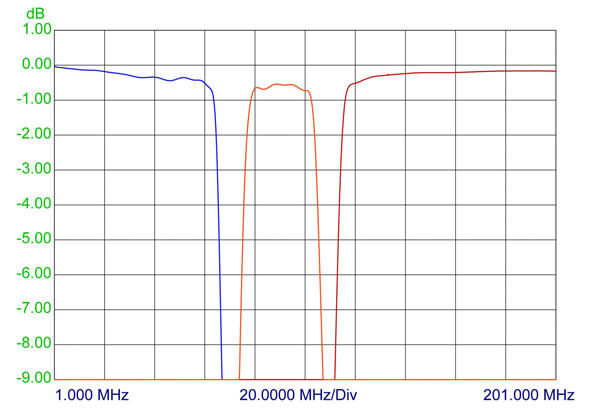

INSERTION LOSS [dB]

pro tri 6080 100120 curve1

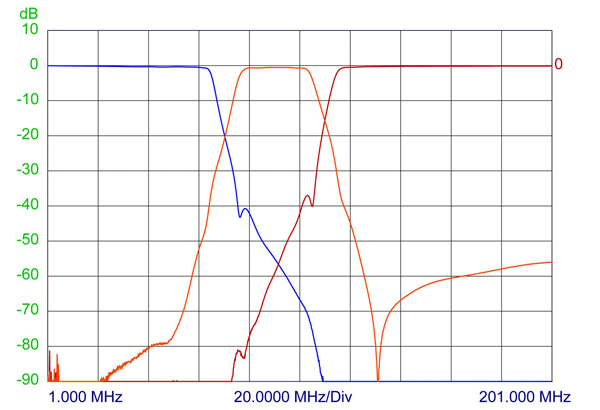

PORT ATTENUATION [dB]

pro tri 6080 100120 curve2

Mounting details

        All dimensions are given in mm [in.]

Installation

The PRO-TRI 60/80-100/120-… makes it possible to use only one antenna for the operation of three transceivers (one in each range). See the figure below. The antenna must be a triple-frequency antenna, i.e. it must be resonant on the actual frequencies in the three bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the triplexer is installed next to the transceivers and only one cable is used between the triplexer and the antenna. The triplexer is suitable both for base station and mobile use.

The main tasks of the triplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary bands and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branches.

The triplexer can be operated together with any set of transceivers operating within the 0 – 60 MHz, 80 – 100 MHz and 120 – 960 MHz frequency bands.

Note

* Temperature on box surface. Adequate cooling to keep max. temperature below +60 °C must be provided.
