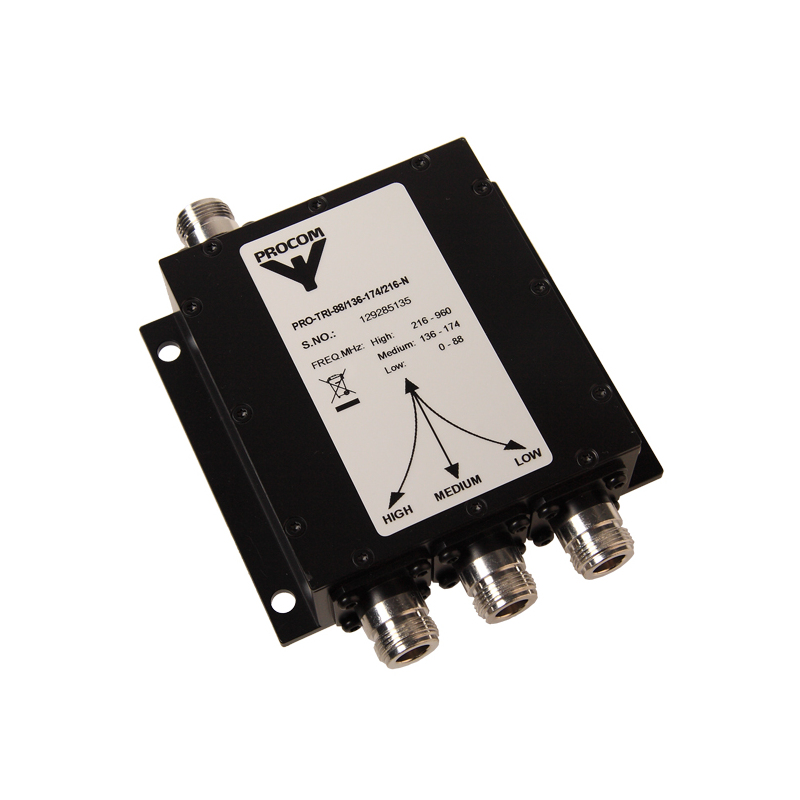

PRO-TRI 88/136-174/216-…

50 W Triplexer for the 0 – 88 MHz, 136 – 174 MHz and 216 – 960 MHz ranges

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

PRO-TRI 88/136-174/216-...

Quickly identify the correct ordering code.

PRO-TRI 88/136-174/216-…
Electrical
Model PRO-TRI 88/136-174/216-…
Frequency COM-LOW port : 0 – 88 MHz
COM-MEDIUM port : 136 – 174 MHz
COM-HIGH port : 216 – 960 MHz
Max. Input Power 50W CW simultaneously on both HIGH, MEDIUM and LOW port
Insertion Loss 0 – 88 MHz : 0.5 dB
136 – 174 MHz : 0.8 dB
216 – 960 MHz : 0.8 dB
Impedance 50 Ω
VSWR < 1.5:1
Environmental
Operating temperature range -40 °C to +60 °C
Ingress Protection IP62
Mechanical
Connection(s) INPUT : N(f)
OUTPUT : N(f)
(Other types available on request)
Historic Brand Amphenol Procom
Dimensions 133 x 106 x 31 mm /
5.24 x 4.17 x 1.22 in. (incl. connectors and flanges)
Weight Approx. 0.475 kg / 1.05 lb.
Mounting 4.3 mm dia. (4 holes)
  • Triplexer for combining or splitting the three ranges 0 – 88 MHz, 136 – 174 MHz and 216 – 960 MHz.
  • Chebychev design ensures very high isolation across the whole pass ranges.
  • High power handling capability.
  • Low insertion loss.
  • Low weight.
  • Wide temperature range.
  • Milled aluminium box ensures extraordinarily high mechanical strength.
  • PRO-TRI 88/136-174/216-.. is coated with black vinyl to prevent corrosion.
  • N-connectors on all ports (standard).
  • Also available with SMA-, TNC- or BNC- connector types.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Connection(s) Add To Quote

PRO-TRI 88/136-174/216-N

 200002546 N

PRO-TRI 88/136-174/216-SMA

 200002554 SMA

PRO-TRI 88/136-174/216-TNC

 200002555 TNC

PRO-TRI 88/136-174/216-BNC

 200002556 BNC

Login required

You need to be logged in into your account to view downloadable documents.

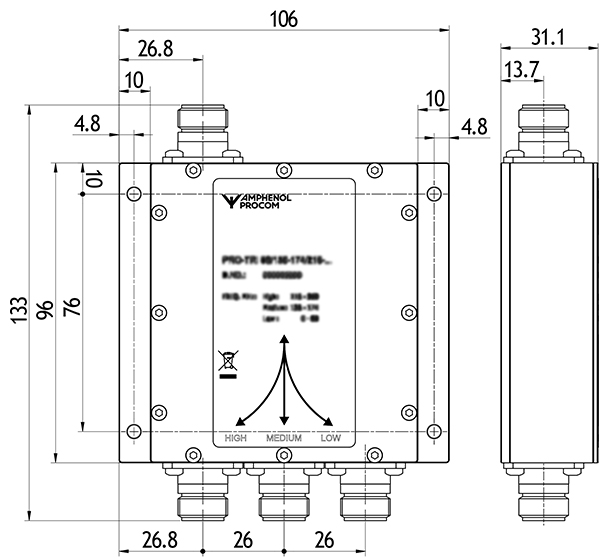

Mounting Details

 All dimensions are given in mm.

Typical response curves

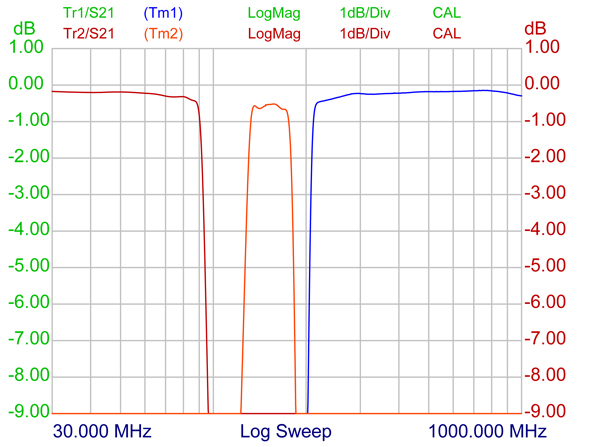

INSERTION LOSS [dB]

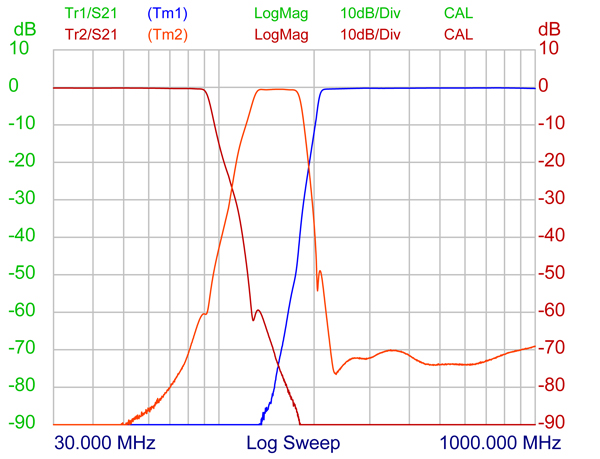

PORT ATTENUATION [dB]

Installation

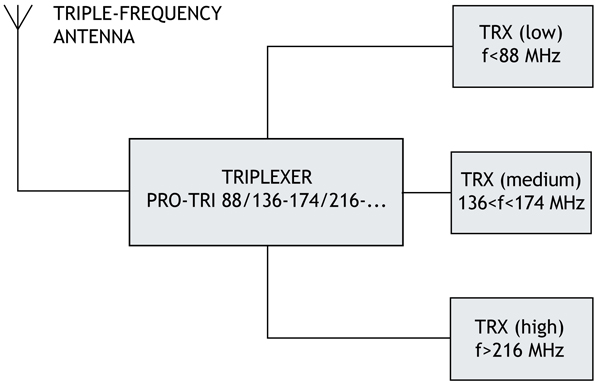

The PRO-TRI 88/136-174/216-… makes it possible to use only one antenna for the operation of three transceivers (one in each range). See the figure below. The antenna must be a triple-frequency antenna, i.e. it must be resonant on the actual frequencies in the three bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the triplexer is installed next to the transceivers and only one cable is used between the triplexer and the antenna. The triplexer is suitable both for base station and mobile use.

The main tasks of the triplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary bands and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branches.

The triplexer can be operated together with any set of transceivers operating within the 0 – 88 MHz, 136 – 174 MHz and 216 – 960 MHz frequency bands.

Note

* Temperature on box surface. Adequate cooling to keep max. temperature below +60 °C must be provided.
