766.7020

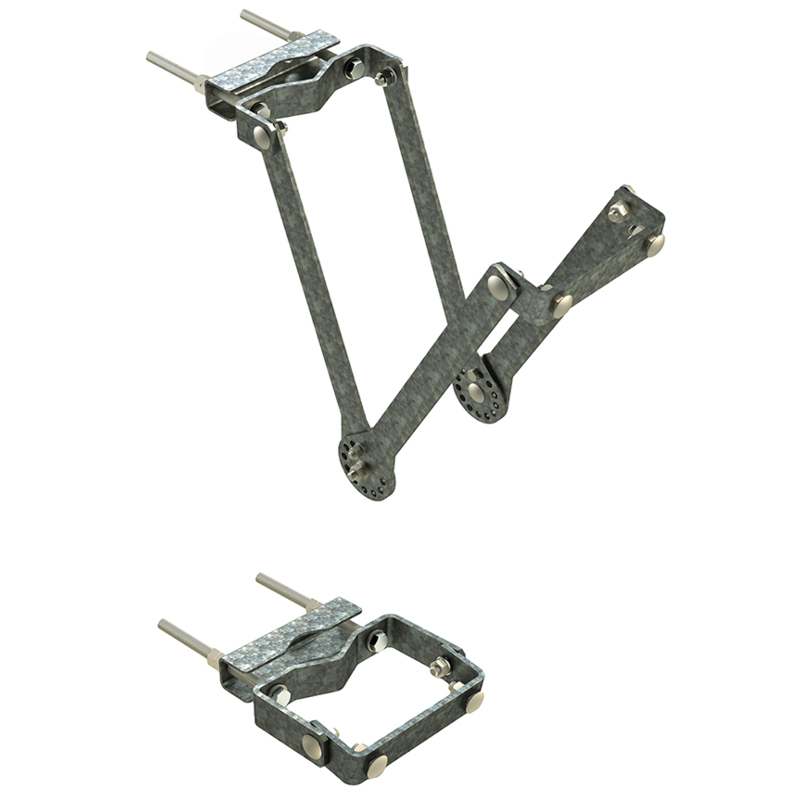

Panel Bracket Kit 0° to 22 Tilt ø38 – ø120 mm Pole

Find Out More
Data Sheet
CE Certification

Other Files

766.7020
Electrical
Model 766.702
Mechanical
Clamp Type Panel clamp
Materials Clamp body – galv. steel
Fixings – galv. steel
Historic Brand Amphenol Procom
Dimensions See Dimension details
Torque Max. M8: 25 – 30 Nm
M10: 33 – 40 Nm
M12: 59 – 66 Nm
Weight Approx. 7.63 kg / 16.82 lb.
Mounting 38 – 120 mm / 1.50 – 4.72 in. dia.
  • Use to securely attach the range of 760/766 Panel antennas to a vertical pole or mast.
  • Supplied with stainless bolts to suit 38 – 120 mm diameter poles.
  • Compatible with panel antennas 760/766 measuring 1.84 m in lenght.
  • This bracket allows the antenna to tilt 0° to 22°.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Panel Bracket Kit 0° to 22 Tilt ø38 – ø120 mm Pole 766.7020

Login required

You need to be logged in into your account to view downloadable documents.

Mounting details

766 7020 Back View

Dimension

766.7020 Mechanical outline
