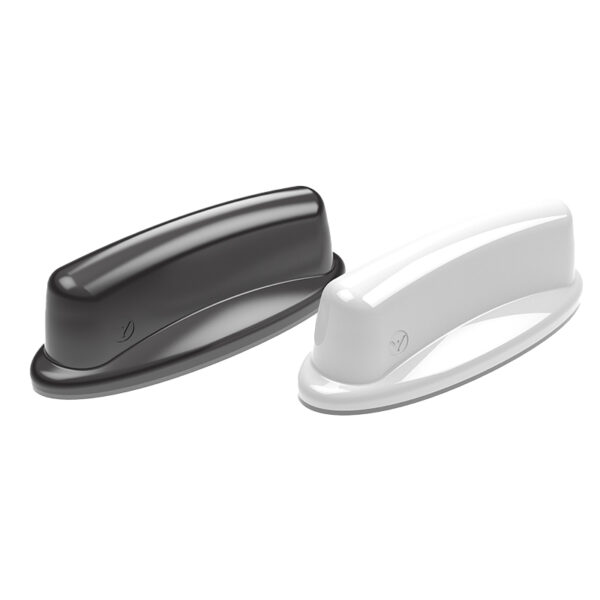

ProEdge

A 2×2 MIMO LTE and WIFI multi purpose antenna for 2G/3G/4G/5G,
CBRS and WIFI 6E 2.4/4.9-7.2 GHz with optional GNSS

Find Out More
Data Sheet
CE Certification

Other Files

ProEdge
Electrical
EMC Full protection (EN 301 489-1)
Model ProEdge
Frequency
617 – 960 MHz1.7 – 2.7 GHz3.4 – 3.8 GHz4.9 – 7.2 GHz
Antenna Type Mobile Disk Style Antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Isolation *
> 5 dB> 15 dB> 25 dB> 30 dB
VSWR *
< 2.5:1< 2.0:1< 2.0:1< 2.0:1
Environmental
Operating temperature range -50 °C to +75 °C
Ingress Protection IP69
Impact Protection IK10
Mechanical
Compliance ECE R118.02 approved cables
Connection(s) RG 316 / RG 178, SMA(m) (all antennas)
Materials ASA, Zamak 5
Installation Torque 4 ± 0.5 Nm
Colour Black (RAL 9005) or White (RAL 9010)
Length 209 mm / 8.23 in.
Antenna Mount Type Hole mount
Height 69 mm / 2.7 In.
Width 79 mm / 3.11 in.
Weight Approx. 550 g. / 1.2 lb.
Mounting 18.5 mm / 0.8 in. dia. hole
  • The ProEdge provides antennas for multiple technologies in fixed or mobile end-point device applications.
  • Ideal for Industrial robotics and telemetry, smart metering, autonomous vehicles, smart cities and automated parking, backup and remote terminal data connections.
  • In-built 2×2 MIMO antenna for use with LTE/4G (617 – 960 MHz and 1710 – 3800 MHz) up to two WiFi 6E 2.4/4.9-7.2 GHz.
  • Optional GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
  • Full hemispherical coverage for the GNSS antennas.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circular Polarization.
  • 3 – 15 V DC for GNSS supply.
  • Can be configuered as 2-in-1, 3-in-1, 4-in-1 or 5-in-1.
  • DC supply via GNSS RF-connector.
  • ECE R118.02 approved cable.
  • IP69 Ingress protection.
  • IK10 rated enclosure.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
A 2×2 MIMO LTE and WIFI multi purpose antenna for 2G/3G/4G/5G,
CBRS and WIFI 6E 2.4/4.9-7.2 GHz with optional GNSS 		ProEdge

Login required

You need to be logged in into your account to view downloadable documents.

Note

* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.

Ordering designations

Use the guide below to make the name of the ProEdge you would like to buy.

Model NameCover colourNo. of GNSSNo. of LTENo. of WIFI antennasCable lengthConnectors on GNSSConnectors on LTEConnectors WIFI
ProEdge -W (White)
-B (Black)		 Blank
-G1 (1x GNSS)		 -L2 (2x LTE antennas) Blank (No WIFI)
-W1 (1x WIFI antenna)
-W2 (2x WIFI antennas)		 Blank (approx. 0.3 m / 1 ft cable length)
-P5 (5 m / 16.4 ft cable length)		 -S (SMA-M)
-FAKRA (on request)		 /S (SMA-M)
/FAKRA (on request)		 Blank (no WIFI)
/S (SMA-M)
/RP-S (Reverse Polarity SMA-M)
/FAKRA (on request)
Naming Example
ProEdge -B -G1 -L2 -W2 -P5 -S /S /RP-S

ProEdge-B-G1-L2-W2-P5-S/S/RP-S

Typical Radiation Patterns (650 – 2100 MHz)

ProfinFW CST radiation

Typical Radiation Patterns (2600 – 7000 MHz)

ProfinFW CST radiation

Typical VSWR curve 4G/5G/WiFi port 1 & 2

ProEdge VSWR

* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.
Typical Isolation curve 4G/5G/WiFi between port 1 & 2

ProEdge Iso

* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.

Mechanical Outline

ProEdge dimension
