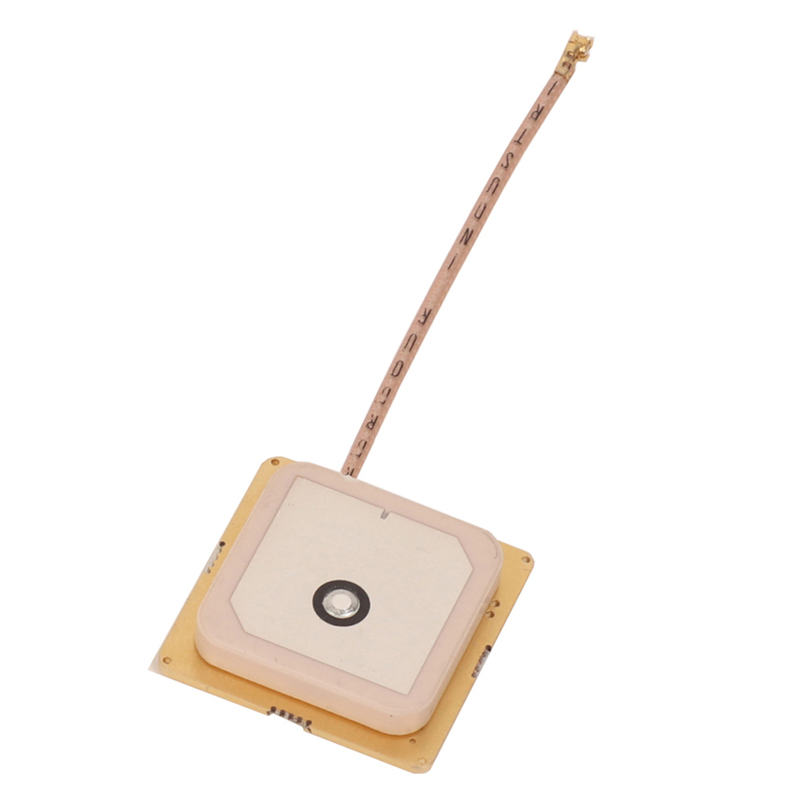

ProGNSS-25

GNSS Patch Antenna Module

Find Out More
Data Sheet
CE Certification

Other Files

ProGNSS-25
Electrical
EMC Full Protection (EN 301 489-1)
Model ProGNSS-25
Frequency 1559 – 1610 MHz
(GPS L1, Glonass, BeiDou and Galileo)
Antenna Type Patch Antenna
Polarisation RHCP
Pattern Type Hemispherical
Impedance 50 Ω
Axial Gain 31 dBic (typ.)
Cross Polar Attenuation > 10 dB (typ.)
Environmental
Operating temperature range -40 °C to +75 °C
Mechanical
Connection(s) U.FL plug on 60 mm 1.13 mm coax
Materials Ceramic, FR4
Dimensions Approx. 29.5 x 29.5 x 8 mm /
1.16 x 1.16 x 0.31 in.
Weight Approx. 0.02 kg / 0.04 lb.
  • GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
  • Broad Banded Ceramic Antenna Element (25 x 25 mm)
  • Active
  • Full hemispherical coverage.
  • Built-in 29 dB low noise amplifier.
  • Right-Hand Circular Polarization.
  • 3 – 15 V DC, DC supply via RF-connector.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
GNSS Patch Antenna Module 112000091

Login required

You need to be logged in into your account to view downloadable documents.

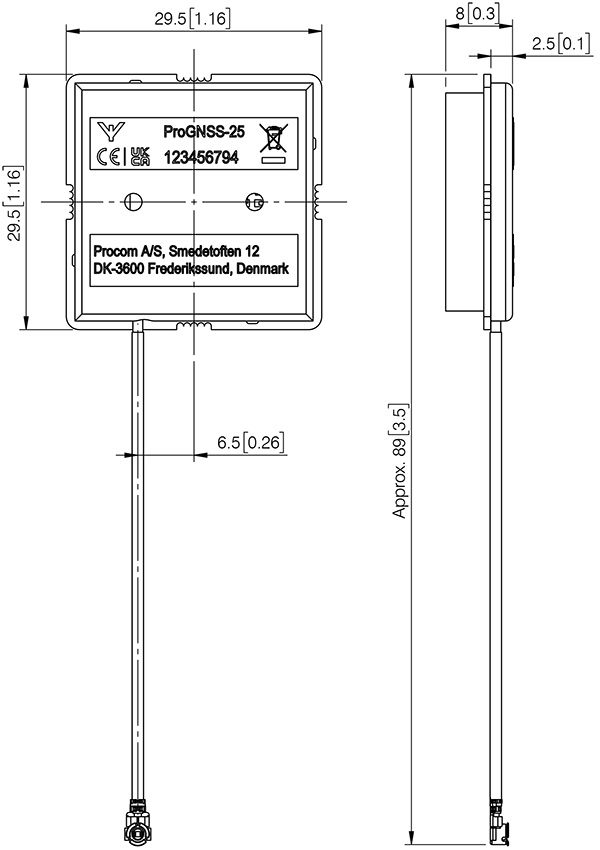

Mechanical Outline
