A 4×4 MIMO LTE and 4×4 or 6×6 MIMO WIFI multi purpose ‘Disk’ antenna for GNSS, 2G/3G/4G/5G and WIFI 6E 2.4/4.9-7.2 GHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ProNexus

Quickly identify the correct ordering code.

ProNexus
Electrical
EMC Full protection (EN 301 489-1)
Model ProNexus
Frequency 4G/5G 4×4 MIMO: 617 – 960 MHz, 1710 – 3800 MHz
WIFI 4×4 or 6×6 MIMO: 2400 – 2500 MHz, 4900 – 7200 MHz
Antenna Type Mobile Disk Style Antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain (peak) 4G/5G 3dBi (617 – 960 MHz)
4G/5G 7dBi (1710 – 3800 MHz)
WiFi 7 dBi (2.4/5.8/7.2 GHz)
Isolation >10 dB for 617 – 960 MHz
>20 dB for 1710 – 3800 MHz
>15 dB for WiFi
Correlation Coefficient < 0.2 for 617 - 960 MHz
< 0.02 for 1710 - 3800 MHz
< 0.02 for WiFi
VSWR < 2.5:1 for 617 - 960 MHz
< 2.0:1 for 1710 - 3800 MHz
< 2.0:1 for 2400 - 2500 MHz
< 2.0:1 for 4900 - 7200 MHz
Environmental
Operating temperature range -50°C to +75°C
Ingress Protection IP69K
Impact Protection IK10
Mechanical
Compliance ECE R118.02 approved cables
Connection(s) SMA(m) (all antennas)
Materials ASA, Zamak 5
Installation Torque 4 ±0.5 Nm
Colour Black (RAL 9005) / Traffic White (RAL 9010)
Historic Brand Amphenol Procom
Antenna Mount Type Hole Mount
Dimensions 208 mm x 166 mm x 69 mm/ 8.19 in. x 6.5 in. x 2.7 in. (Approx)
Max. Roof Thickness 3 mm / 0.12 in.
Weight 1.04kg / 2.3 lb
Mounting 18.5 mm / 0.8 in. dia. hole
  • Can be configured as 9-in-1, 10-in-1, 11-in-1, and 12-in-1
  • In-built 4×4 MIMO LTE antenna (617 – 960 MHz and 1710 – 3800 MHz)
  • Up to 6×6 MIMO WIFI 6E 2.4/4.9-7.2 GHz
  • GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
  • No diplexer needed.
  • The ProNexus provides antennas for multiple technologies and multiband routers.
  • The ProNexus covers 4G, GNSS inc. 5G cellular bands, WIFI 2.4/5.8 and 7.2 GHz.
  • Full hemispherical coverage for the GNSS antennas.
  • Built-in high gain, low noise amplifier.
  • Right-Hand Circular Polarization.
  • 3 – 15 V DC for GNSS supply.
  • DC supply via GNSS RF-connector.
  • ECE R118.02 approved cable.
  • IP69 Ingress protection.
  • IK10 rated enclosure.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

ProNexus W-G1-L4-W4

 132000282 4×4 MIMO 4G/5G, 4×4 MIMO WiFi, 1x GNSS, White Cover

ProNexus W-G1-L4-W6

 132000283 4×4 MIMO 4G/5G, 6×6 MIMO WiFi, 1x GNSS, White Cover

ProNexus W-G2-L4-W4

 132000284 4×4 MIMO 4G/5G, 4×4 MIMO WiFi, 2x GNSS, White Cover

ProNexus W-G2-L4-W6

 132000285 4×4 MIMO 4G/5G, 6×6 MIMO WiFi, 2x GNSS, White Cover

ProNexus B-G1-L4-W4

 132000286 4×4 MINO 4G/5G, 4×4 MIMO WiFi, 1x GNSS, Black Cover

ProNexus B-G1-L4-W6

 132000287 4×4 MIMO 4G/5G, 6×6 MIMO WiFi, 1x GNSS, Black Cover

ProNexus B-G2-L4-W4

 132000288 4×4 MIMO 4G/5G, 4×4 MIMO WiFi, 2x GNSS, Black Cover

ProNexus B-G2-L4-W6

 132000289 4×4 MIMO 4G/5G, 6×6 MIMO WiFi, 2x GNSS, Black Cover

Login required

You need to be logged in into your account to view downloadable documents.

Ordering designations

Use the guide below to assign the name of the ProNexus you would like to order.

Model NameCover colourNo. of GNSSNo. of LTE antennasNo. of WIFI antennasCable lengthConnectors on GNSSConnectors on LTEConnectors WIFI
ProNexus -W (White)
-B (Black)		 -G1 (1 x GNSS)
-G2 (2 x GNSS)		 -L4 -W1 (1x WIFI antenna)
-W2 (2x WIFI antenna)
-W3 (3x WIFI antenna)
-W4 (4x WIFI antenna)
-W5 (5x WIFI antenna)
-W6 (6x WIFI antenna)		 Blank (approx. 0.3 m / 1 ft cable length)
-P5 (5 m / 16.4 ft cable length)		 -S (SMA-M)
-FAKRA (on request)		 /S (SMA-M)
/FAKRA (on request)		 /S (SMA-M)
/RP-S (Reverse Polarity SMA-M)
/FAKRA (on request)
Naming Example
ProNexus -W -G2 -L4 -W6 -P5 -S /S /RP-S


ProNexus-W-G2-L4-W6-P5-S/S/RP-S

Gain Table
TYPEFREQUENCY (MHz) PEAK GAIN (dBi)AVERAGE GAIN H-PLANE (dBi)AVERAGE GAIN H-PLANE (dBq)
4G/5G

650
900
1800
2500
3600

2.0
3.0
4.0
6.0
6.0

 -1.7
-3.6
-4.1
-3.2
-2.5		 -1.0
-2.0
-2.0
-1.0
0.0
WIFI

2400
5500
7200

7.0
7.0
9.0

-1.0
-3.0
-2.4

-2.0
-3.0
-2.0

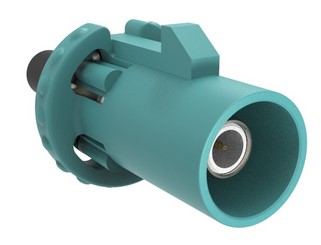

FAKRA Connectors
FAKRA M

Amphenol RF FAKRA connectors are available for this product in standard key code configurations. Please contact us with configuration details for availability.

FAKRA Connectors – RF Connectors | Amphenol RF

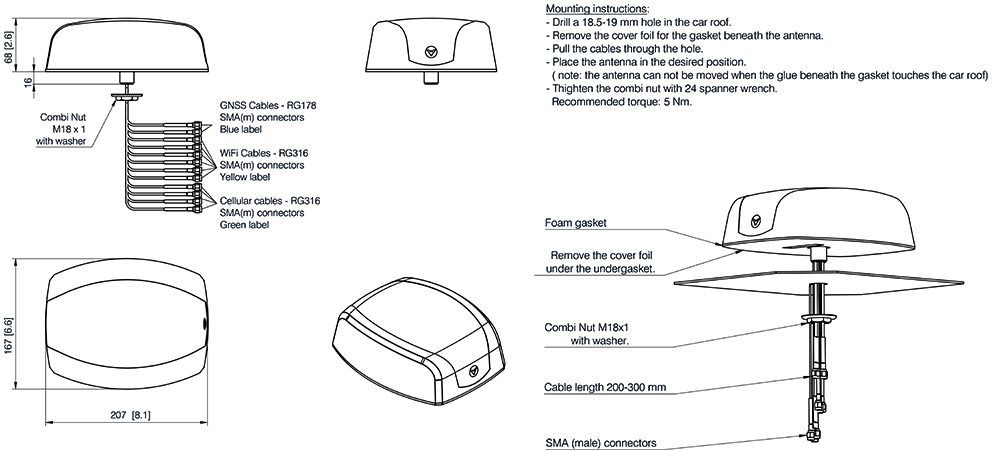

Mechanical outline

Pro Nexus B Dimension drawing mounting instructions

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type ProNexus is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).

The full text of the Declaration of Conformity is available at:
https://s3.us-west-2.amazonaws.com/catsy.1080/Declaration-of-Conformity-ProNexus.pdf

Radiation Patterns (Cellular Antennas)

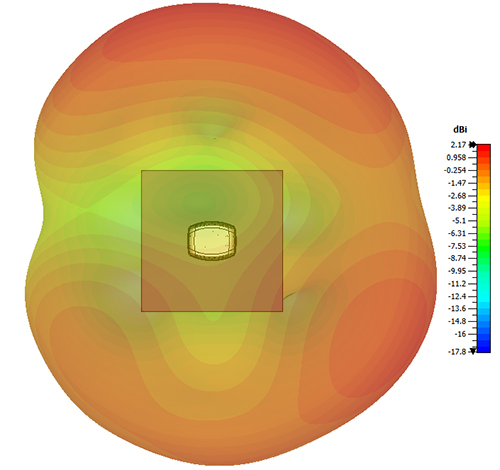

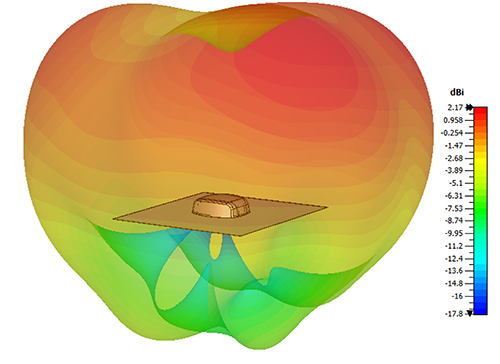

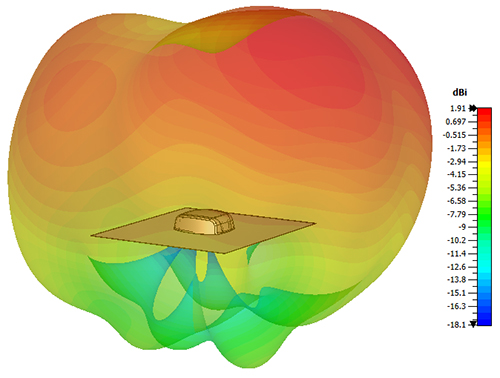

650 MHz, side view 650 MHz, top view 700 MHz, side view
PRO NEXUS 650MHz SIDE PRO NEXUS 650MHz TOP PRO NEXUS 700MHz SIDE

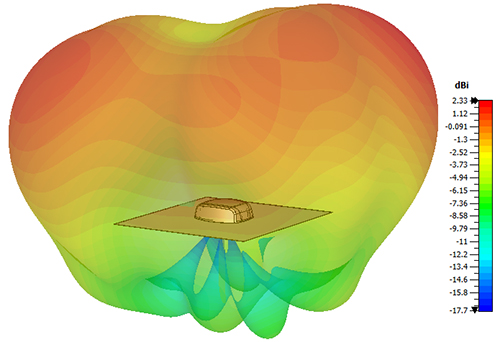

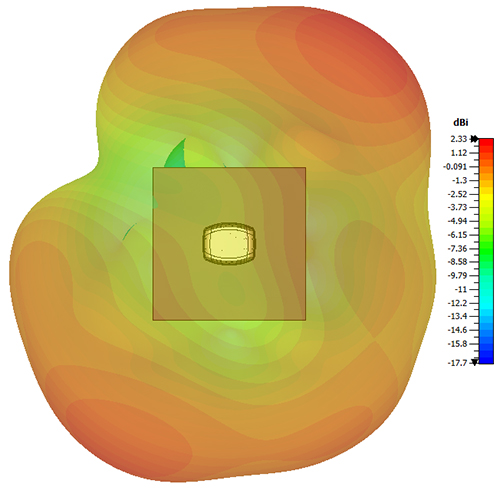

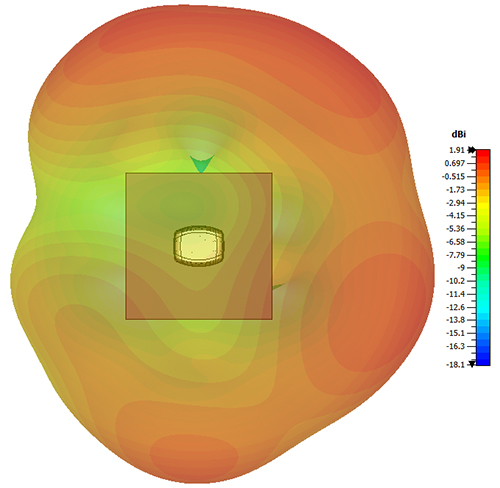

700 MHz, top view 800 MHz, side view 800 MHz, top view
PRO NEXUS 700MHz TOP PRO NEXUS 800MHz SIDE PRO NEXUS 800MHz TOP

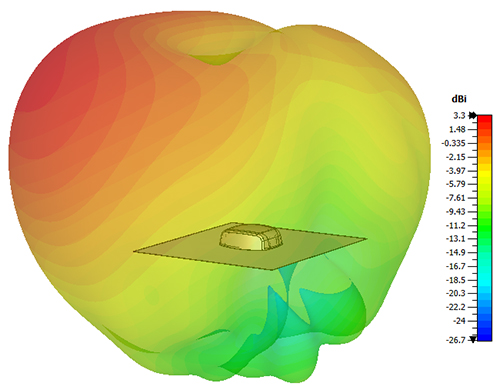

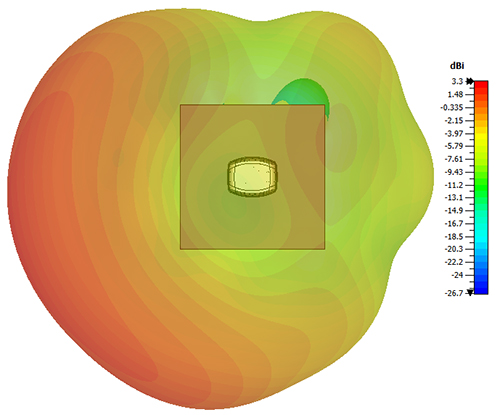

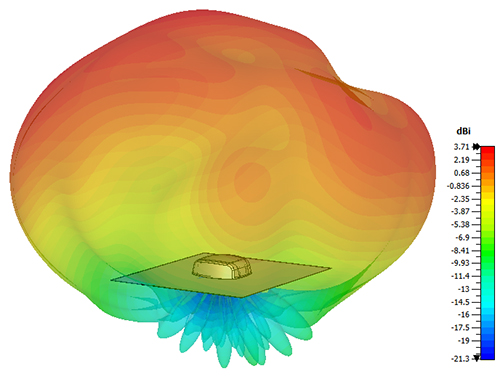

900 MHz, side view 900 MHz, top view 1800 MHz, side view
PRO NEXUS 900MHz SIDE PRO NEXUS 900MHz TOP PRO NEXUS 1800MHz SIDE

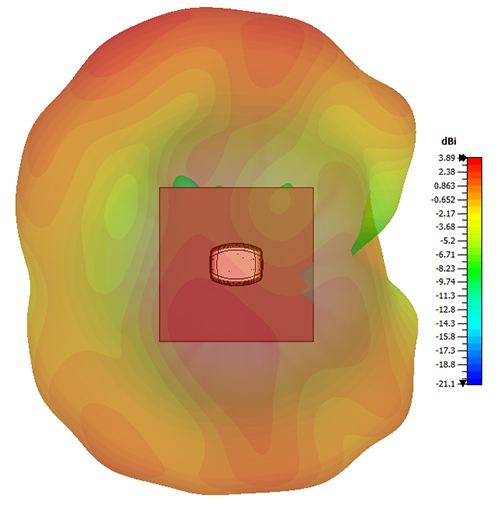

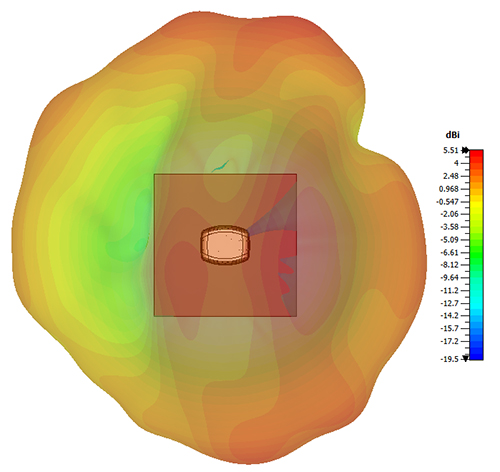

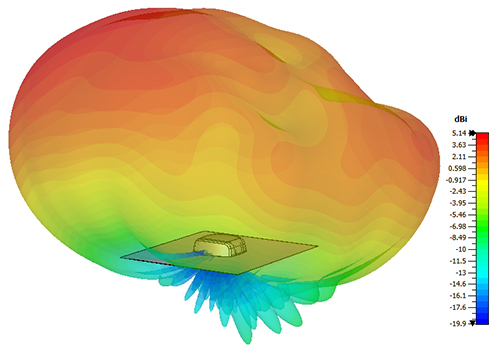

1800 MHz, top view 2100 MHz, side view 2100 MHz, top view
PRO NEXUS 1800MHz TOP PRO NEXUS 2100MHz SIDE PRO NEXUS 2100MHz TOP

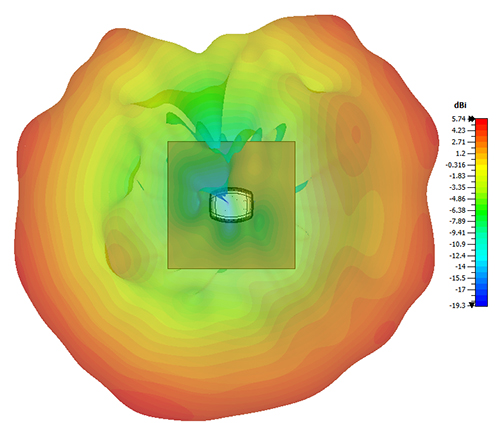

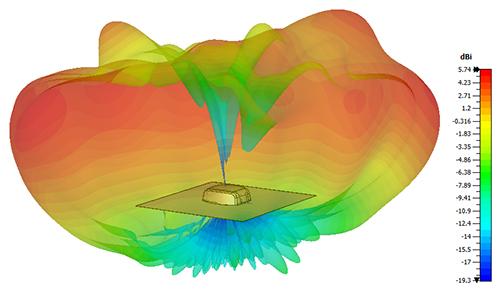

2600 MHz, side view 2600 MHz, top view
PRO NEXUS 2600MHz SIDE PRO NEXUS 2600MHz TOP

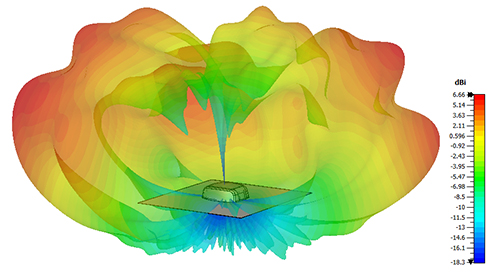

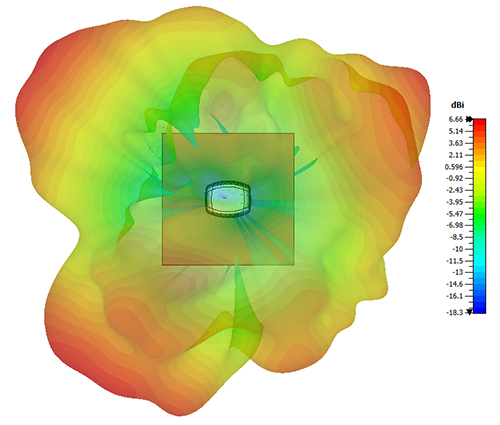

3600 MHz, side view 3600 MHz, top view
PRO NEXUS 3600MHz SIDE PRO NEXUS 3600MHz TOP
Radiation Patterns (WiFi Antennas)

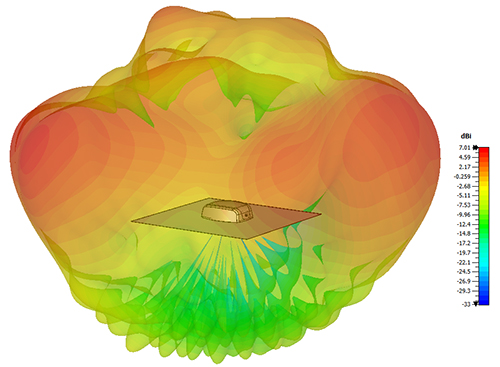

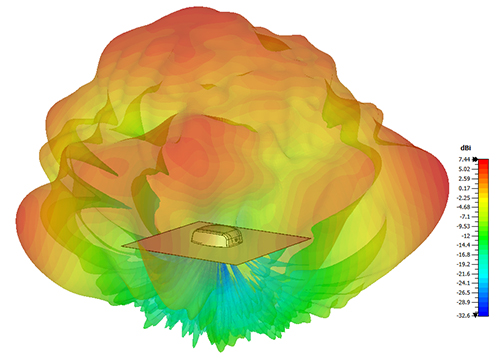

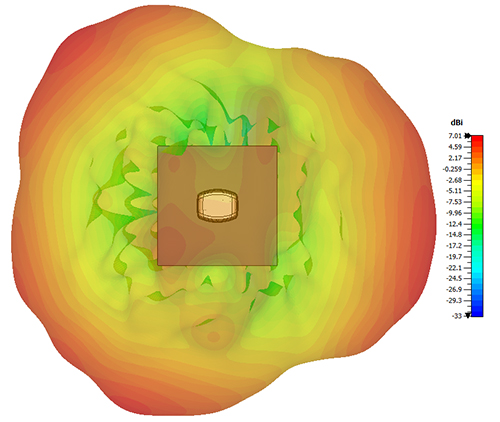

2400 MHz, side view 2400 MHz, top view 5500 MHz, side view
PRO NEXUS WIFI 2400 MHz SIDE PRO NEXUS WIFI 2400MHz TOP PRO NEXUS WIFI 5500MHz SIDE

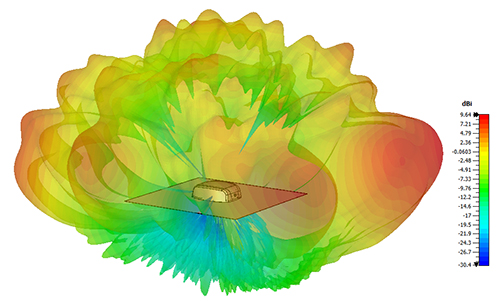

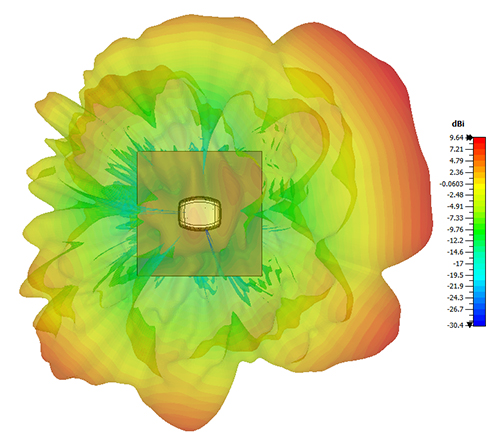

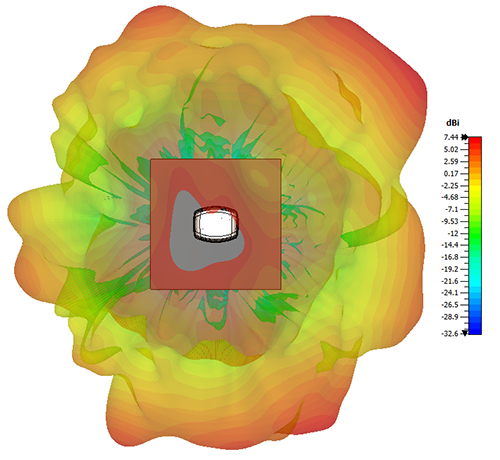

5500 MHz, top view 7000 MHz, side view 7000 MHz, top view
PRO NEXUS WIFI 5500MHz TOP PRO NEXUS WIFI 7000MHz SIDE PRO NEXUS WIFI 7000MHz TOP
Performance Curves

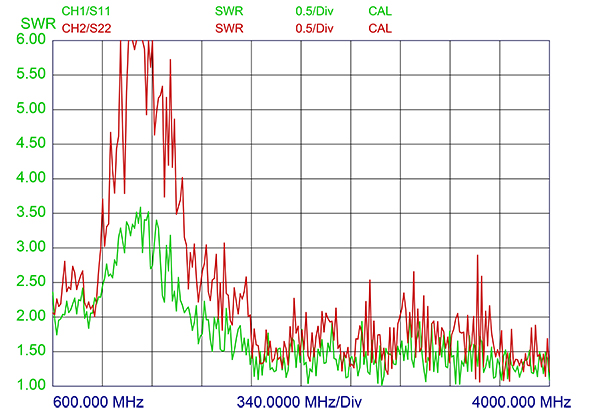

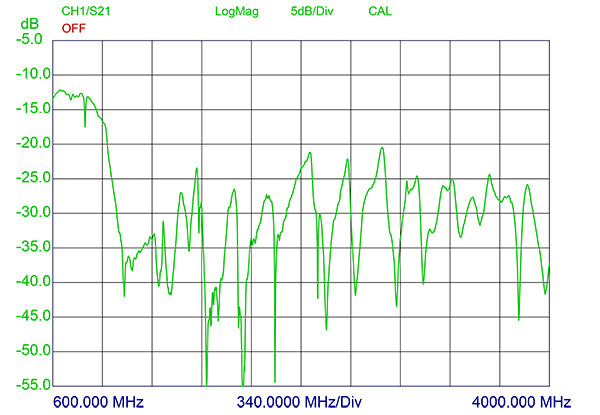

Typical VSWR 4G/5G Elements* Typical Isolation 4G/5G Elements*

ProNexus 4G 5G curves

*Red trace measured with 1m (39.4 In.) of RG58 cable. Green trace measured with 3m (118 In.) of RG58 cable on a
600 x 600 mm (23.6 x23.6 In.) groundplane.

ProNexus Isolation 4G 5G

*Measured with no additional cable, on a 600 x 600 mm (23.6 x 23.6 In.) groundplane.

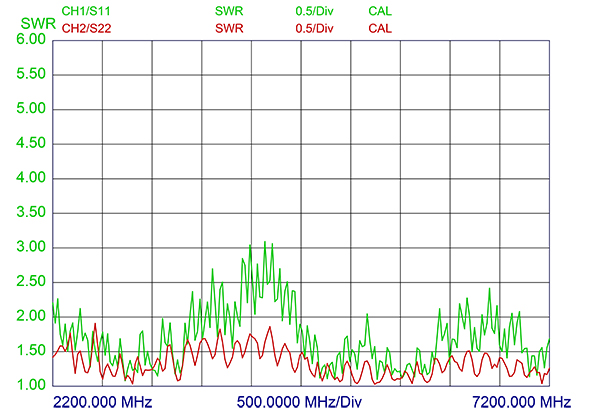

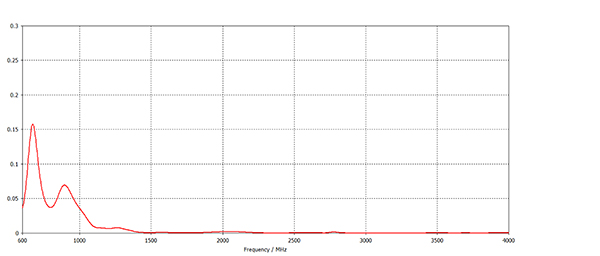

Envelope Correlation Coefficient 4G/5G Elements* Typical VSWR WiFi Elements*

ProNexus Envelope Correlation Coefficient

*Simulated in free space with no additional cable.

ProNexus WiFi

*Green trace measured with 1m (39.4 In.) of RG58 cable. Red trace measured with 3m (118 In.)
of RG58 cable on a 600 x 600 mm (23.6 x23.6 In.) groundplane.

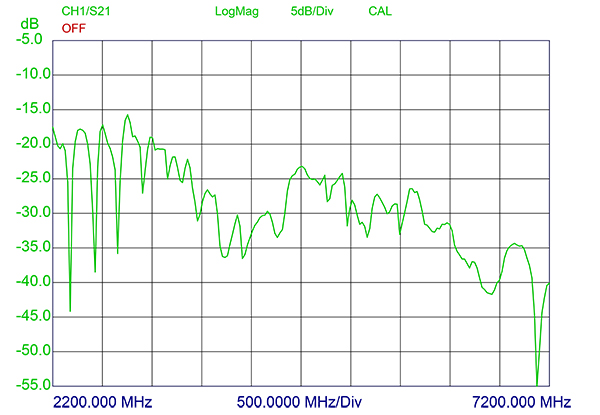

Typical Isolation WiFi Elements*

ProNexus Isolation WiFi

*Measured with no additional cable, on a 600 x 600 mm (23.6 x 23.6 In.) groundplane.
