| Electrical | |
| Model | ProShotG |
|---|---|
| Frequency |
617 – 698 MHz698 – 960 MHz1710 – 4200 MHz4200 – 7200 MHz
|
| Antenna Type | Wideband radiator |
| Max. Input Power | 50 W |
| Efficiency | > 85% |
| Polarisation | Vertical |
| Pattern Type | Omnidirectional |
| Impedance | 50 Ω |
| Gain | See radiation diagrams below |
| 3 dB Beamwidth | Omnidirectional |
| VSWR * |
< 2.5:1< 2.0:1< 2.0:1< 2.0:1
|
| Environmental | |
| Operating temperature range | -40 °C to +80 °C |
|---|---|
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Mechanical | |
| Connection(s) | 0.3 m RG 316 with SMA(m) |
|---|---|
| Materials | ASA |
| Colour | Black (RAL 9005) or White (RAL 9010) |
| Dimensions | ø48 mm / 1.89 in. |
| Height | 85 mm / 3.35 in. |
| Weight | Approx. 200 g. / 0.44 lb. |
| Mounting | 18.5 mm / 0.73 in. |

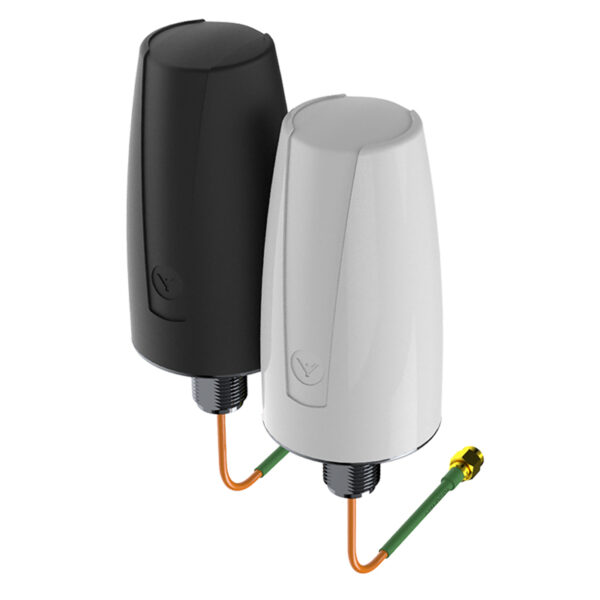

The ProShotG antenna, a Shot Glass Style Omni Mobile Antenna, is engineered to provide wideband coverage across a broad frequency range of 617 – 7200 MHz. This makes it suitable for 2G/3G/4G and 5G networks, WiFi 6E and WiFi 7 networks, as well as IoT and M2M applications, among others. Its wideband capabilities ensure the antenna is versatile for a wide range of applications.
The ProShotG is designed for easy mounting and is weatherproof, with IP67 and IK10 ratings. Its omnidirectional pattern and wideband frequency coverage makes it perfect for worldwide use. Whether it is for vehicles, industrial settings, cellular modems/routers, or M2M applications, the ProShotG stands out.
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| Wideband Terminal Antenna | ProShotG |
You need to be logged in into your account to view downloadable documents.
* Measured with 2 m [78.7 in.] of RG 58 cable on a 500 x 500 mm [19.7 x 19.7 in.] ground plane.
Use the guide below to assign the name of the ProShotG you would like to order.
| Model Name | Cover colour | Cable length | Connectors |
|---|---|---|---|
| ProShotG | -W (White) -B (Black) |
Blank (approx. 1 foot cable length) -P5 (5m cable length) |
-S (SMA-M) -RP-S (Reverse Polarity SMA-M) FAKRA (on request) |
| Naming Example | |||
| ProShotG | -W | -P5 | -S |
ProShotG-W-P5-S
Measured with 2 m [78.74 in.] of RG 58 cable on a 500 x 500 mm [19.69 x 19.69 in.] ground plane
All dimensions are given in mm [in.]
