ProShotGN

Wideband Terminal Antenna

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

ProShotGN

Quickly identify the correct ordering code.

ProShotGN
Electrical
Model ProShotGN
Frequency
617 – 698 MHz698 – 960 MHz1710 – 4200 MHz4200 – 7200 MHz
Antenna Type Wideband radiator
Max. Input Power 50 W
Efficiency > 85%
Polarisation Vertical
Pattern Type Omnidirectional
Impedance 50 Ω
Gain See radiation diagrams below
3 dB Beamwidth Omnidirectional
VSWR *
< 2.5:1< 2.0:1< 2.0:1< 2.0:1
Environmental
Operating temperature range -40 °C to +80 °C
Ingress Protection IP67
Impact Protection IK10
Mechanical
Connection(s) N(f)
Materials ASA
Colour Black (RAL 9005) or White (RAL 9010)
Dimensions ø48 mm / 1.89 in.
Height 85 mm / 3.35 in.
Weight Approx. 200 g. / 0.44 lb.
Mounting 18.5 mm / 0.73 in.

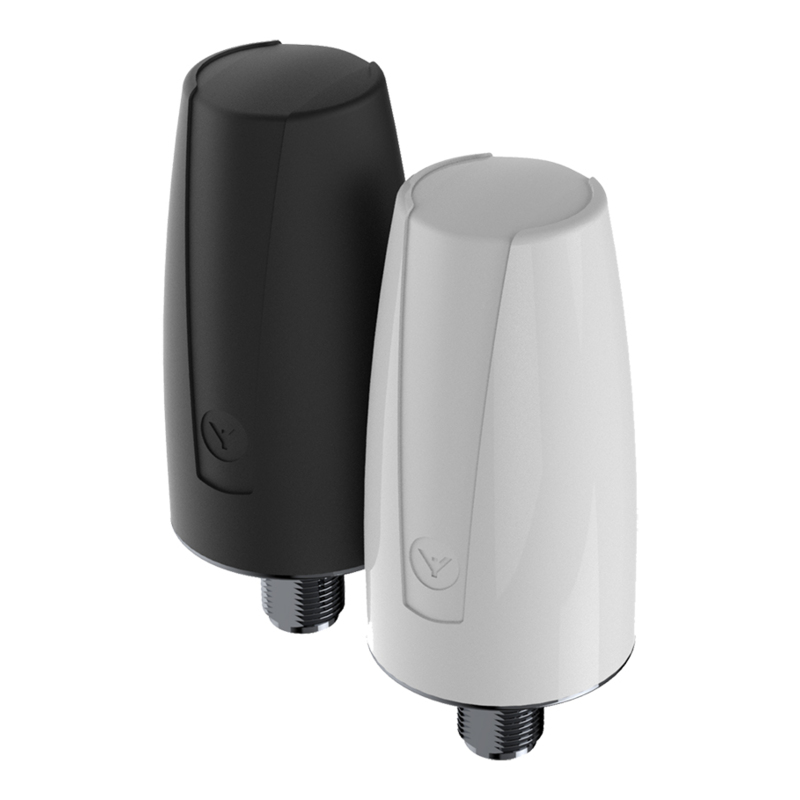

  • The ProShotGN antenna, a Shot Glass Style Omni Mobile Antenna, is engineered to provide wideband coverage across a broad frequency range of 617 – 7200 MHz. This makes it suitable for 2G/3G/4G and 5G networks, WiFi 6E and WiFi 7 networks, as well as IoT and M2M applications, among others. Its wideband capabilities ensure the antenna is versatile for a wide range of applications.
  • The ProShotGN is designed for easy mounting and is weatherproof, with IP67 and IK10 ratings. Its omnidirectional pattern and wideband frequency coverage makes it perfect for worldwide use. Whether it is for vehicles, industrial settings, cellular modems/routers, or M2M applications, the ProShotGN stands out.
  • Wideband Omni LTE/5G Coverage: 617 – 7200 MHz
  • Input Power: Capable of handling up to 50 W
  • High quality enclosure rated IP67 for water and dust ingress and IK10 for impact
  • Easy mounting with a single through-hole stud
  • Multiple antennas can also be used together for MIMO applications
  • For optimal performance in the low band, a ground plane (500 x 500 mm) is recommended.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

ProShotGN-W

 130002540 617 – 7200 MHz

ProShotGN-B

 130002545 617 – 7200 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Note

* Measured with 2 m [78.7 in.] of RG 58 cable on a 500 x 500 mm [19.7 x 19.7 in.] ground plane.

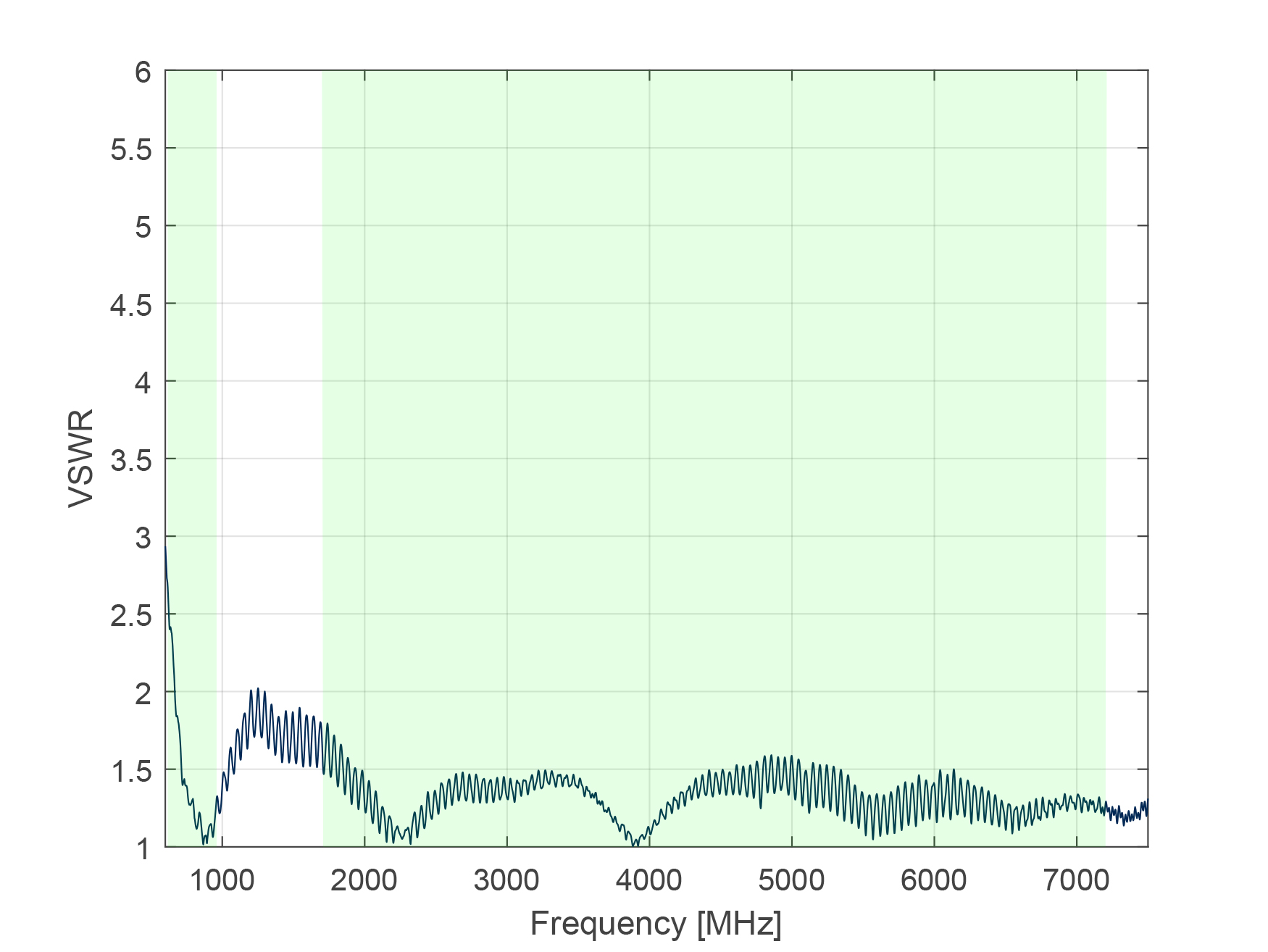

Typical VSWR curve

ProShotGN VSWR

Measured with 2 m [78.74 in.] of RG 58 cable on a 500 x 500 mm [19.69 x 19.69 in.] ground plane.

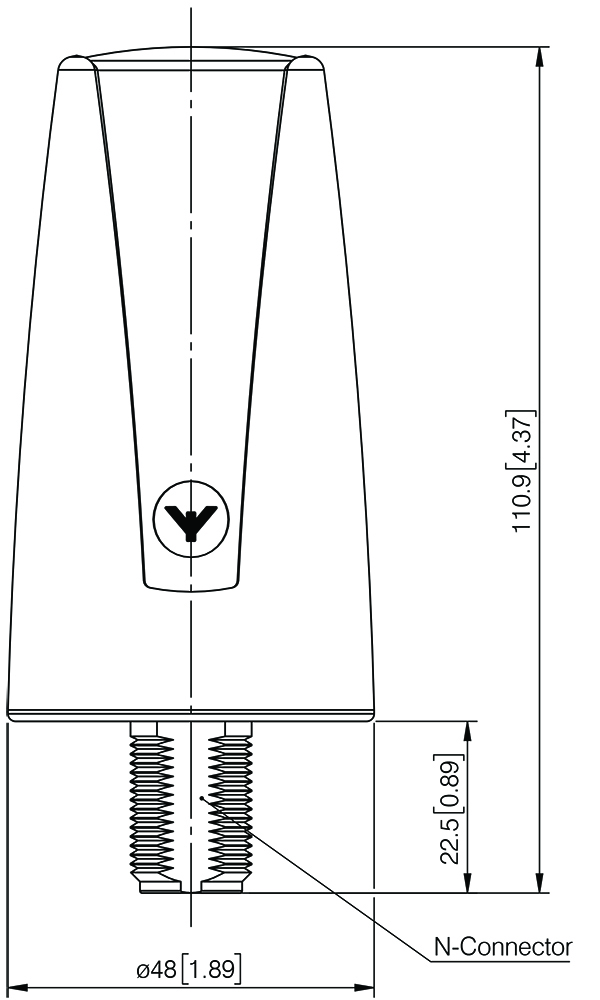

Mechanical outline

ProShotGN Mechanical Outline

All dimensions are given in mm [in.]

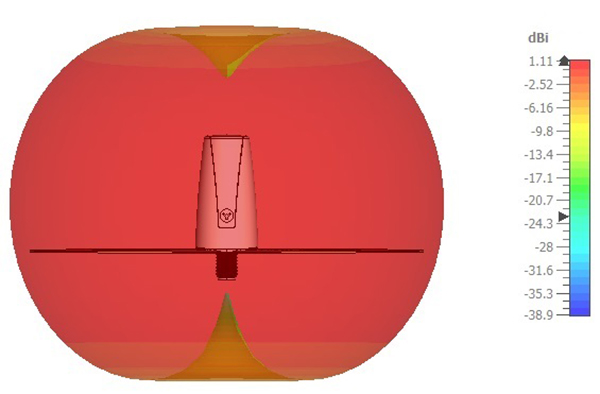

Typical Radiation pattern 617 MHz

ProShotG Rad 617

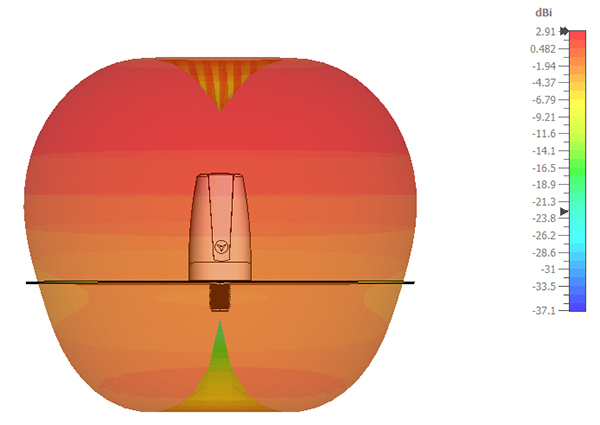

Typical Radiation pattern 960 MHz

ProShotG Rad 960

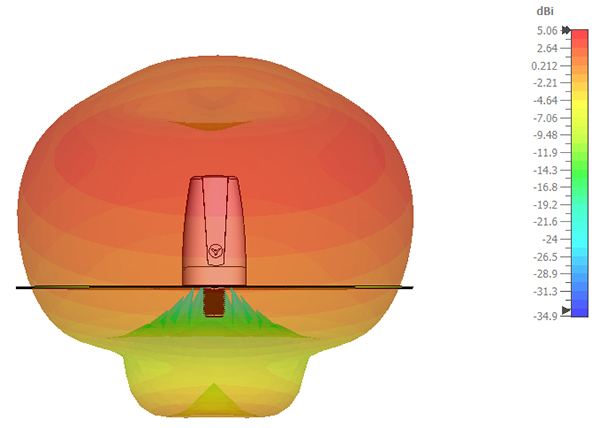

Typical Radiation pattern 1710 MHz

ProShotG Rad 1710

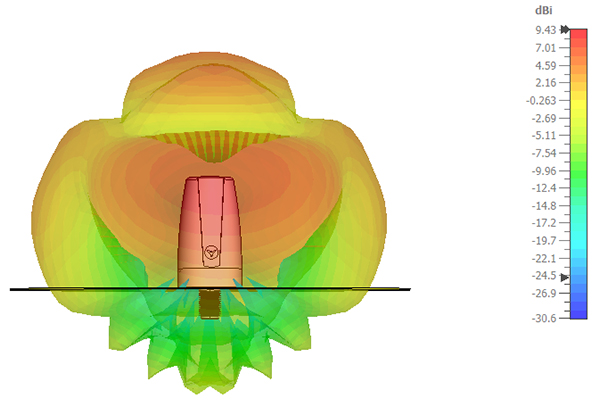

Typical Radiation pattern 3800 MHz

ProShotG Rad 3800

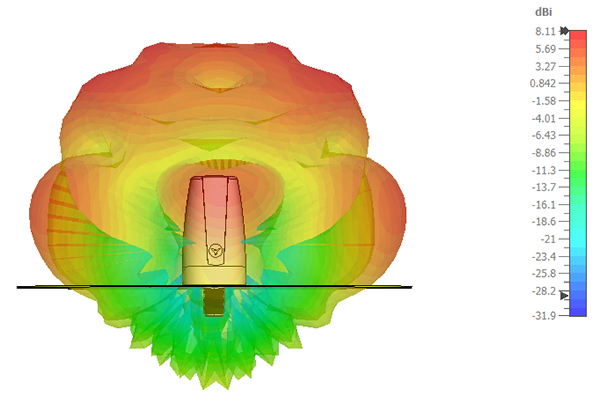

Typical Radiation pattern 6000 MHz

ProShotG Rad 6000

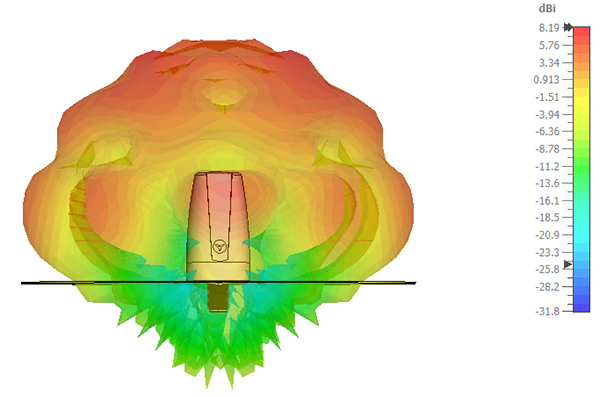

Typical Radiation pattern 7200 MHz

ProShotG Rad 7200
