RG 214

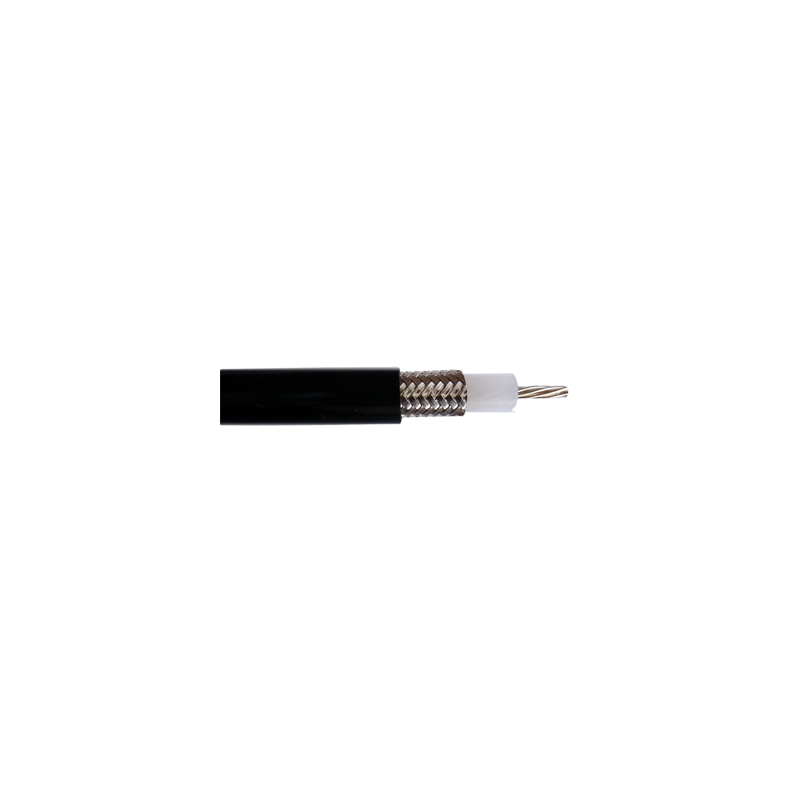

RG 214 is a Low Loss coaxial cable with double braid and flame retardent jacket material

Find Out More
Data Sheet
CE Certification

Other Files

RG 214
Electrical
Velocity Factor 66 v/c
Capacitance 101 pF/m
Impedance 50 ±2 Ω
Outer Conductor Resistance < 4.7 Ω / km
Environmental
Operating temperature range -25 °C to +70 °C
Mechanical
Inner Conductor Resistance < 6 Ω / km
Inner Conductor Dia/Matl 2.25 mm dia. (7 x 0.75 mm) Cu silver-plated
Outer Conductor Dia. Approx.8.7 mm dia. /0.34 in. dia.
Insulation Material 7.24 mm dia. PE
Historic Brand Amphenol Procom
Braid Material 1. braid Cu silver-plated: 95%
2. braid Cu silver-plated: 98%
Min. Bending Radius 55 mm / 2.17 in.
Weight Approx. 207 [kg/km]
Jacket Dia/Matl HM FR-NC dia. 10.8 ± 0.18 mm
  • RG 214 is a Low Loss coaxial cable with double braid and flame retardent jacket material.
  • All used materials are free of halogens.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
RG 214 is a Low Loss coaxial cable with double braid and flame retardent jacket material RG 214

Login required

You need to be logged in into your account to view downloadable documents.

Additional Data
RETURN LOSS [dB]
100 – 1000 MHz > 20 dB
1000 – 2000 MHz > 18 dB
2000 – 3000 MHz > 18 dB
Typical Attenuation Values
ATTENUATION
FREQUENCY [dB/100m] Max. HF power/W
1 MHz 0.9
10 MHz 2.1
20 MHz 3.0
50 MHz 4.6
100 MHz 7.2
200 MHz 11.3
500 MHz 16.2 280
1000 MHz 28.6 165
2000 MHz 41.9 105
3000 MHz 51.7 75
LOOP RESISTANCE < 10 Ω/km
MAX. WORKING VOLTAGE 3.7 kV
