RG 400

Flexible Coaxial Cable

Find Out More
Data Sheet
CE Certification

Other Files

RG 400
Electrical
Velocity Factor 0.695
Capacitance 105 pF/m
Impedance 50 Ω
Environmental
Operating temperature range -55 °C to +200 °C
Mechanical
Inner Conductor Dia/Matl 0.98 mm dia. (19 x 0.203 mm) Silver-coated copper wire
Insulation Material dia. 2.95 mm Solid PTFE
Diameter Over Braid Approx. 4.2 mm / 0.17 in.
Historic Brand Amphenol Procom
Min. Bending Radius 25.4 mm / 1.00 in.
Weight Approx. 0.089 kg / 0.20 lb.
Jacket Dia/Matl dia. 4.80 mm FEP
Braid Coverage Inner 97%
Outer 94%

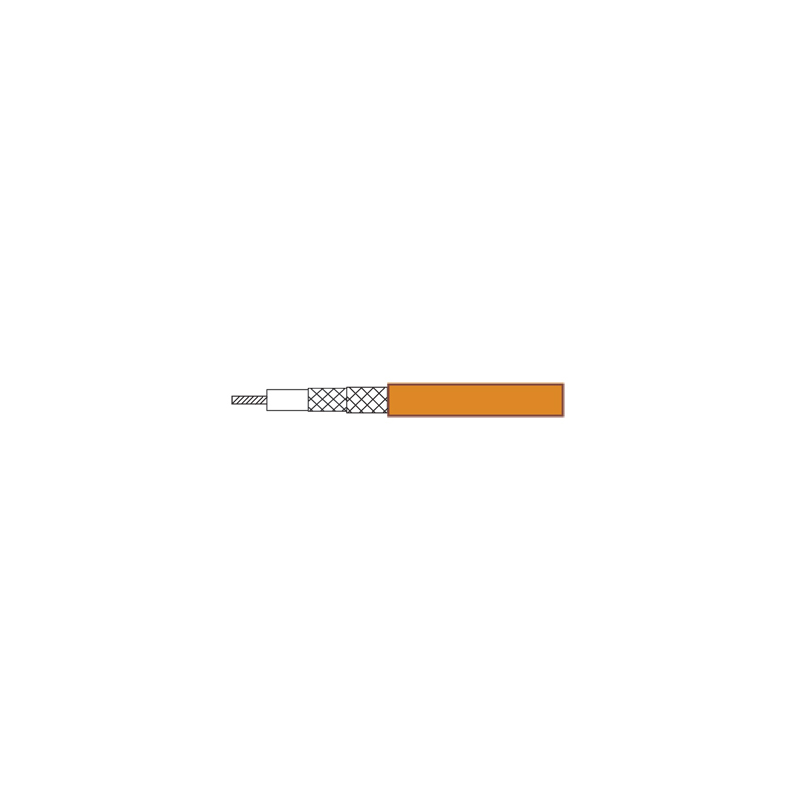

  • RG 400 is a coaxial cable with strands of silver-coated copper wire and with a double silver-plated copper braided shield.
  • The material specification of the outer jacket is classified as Fluorinated Ethylene Propylene (FEP) material.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Flexible Coaxial Cable RG 400

Login required

You need to be logged in into your account to view downloadable documents.

Typical Attenuation Values

FREQUENCY[dB/100m]

ATTENUATION
150 MHz 16.9
450 MHz 30.7
900 MHz 44.9
1400 MHz 57.5
1800 MHz 66.1
2200 MHz 74.3
2500 MHz 79.8
3000 MHz 88.9
