RPD 145-470/800-1000-10-N
Electrical
Model RPD 145-470/800-1000-10-N
Frequency 2 m and 70 cm: 145 – 470 MHz
GSM: 800 – 1000 MHz
GPS: 1575 MHz
Max. Input Power 50 W
Coupling 9 – 14 dB
Impedance 50 Ω
Total Loss < 1.7 dB (< 0.8 @ center)
Input VSWR < 1.75:1
Environmental
Operating temperature range -30 °C to +60 °C
Ingress Protection IP65
Mechanical
Compliance RoHS
Connection(s) N(f)
Historic Brand Amphenol Procom
Dimensions 165 x 75 x 23 mm /
6.5 x 2.95 x 0.9 in.
Weight Approx. 0.375 kg / 0.83 lb.
Mounting ø4 mm (four holes)
  • Coupler with 9 – 14 dB coupling covering the 2 m, 70 cm, GSM and GPS bands.
  • Very broad-banded performance.

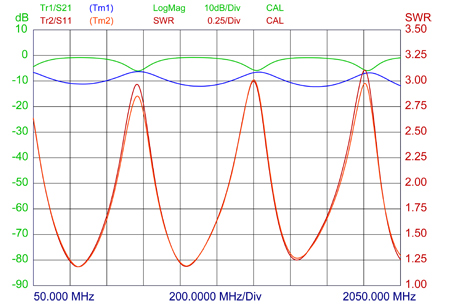

TYPICAL RESPONSE CURVE

MOUNTING DETAILS
