RX 5000

Self-Supporting Wide-Band Receiving Whip Antenna for the LF, MF and HF Bands.

Find Out More
Data Sheet
CE Certification

Other Files

RX 5000
Electrical
Model RX 5000
Frequency 100 kHz – 30 MHz
Antenna Type Self-supporting wide-band receiving whip antenna for LF, MF and HF bands
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Impedance 50 Ω
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Mechanical
Wind Area 0.082 sq. m / 0.88 sq. ft
Connection(s) N(f)
Materials Shroud : Glass fibre, stainless steel and chromed brass
Housing: Polycarbonate
Colour Marine white
Historic Brand Amphenol Procom
Height Approx. 5170 mm / 203.54 in.
Wind Load 108 N (160 km/h)
Dia. At Top End 5 mm / 0.20 in.
Weight Approx. 2.9 kg / 6.39 lb.
Dia. At Bottom End 20 mm / 0.79 in.
Mounting With side-mounting clamps on 35 – 65 mm dia. mast tube
  • This antenna provides a very efficient means of establishing a universal, wide-band 50 Ω receiving aerial system for the complete LF, MF and HF bands in one unit.

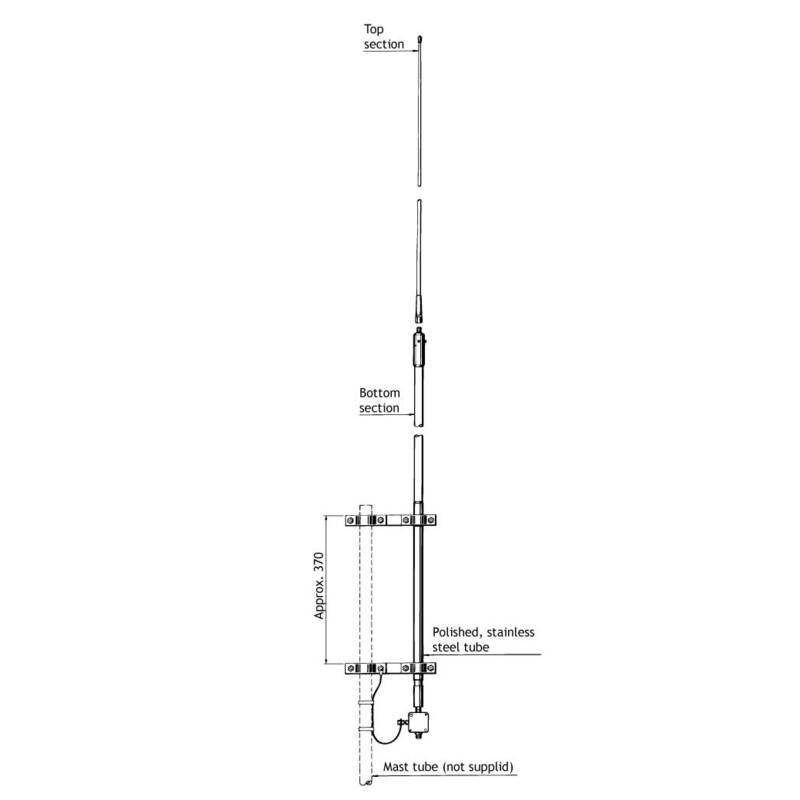

  • The antenna consists of a high-capacitance, 5 m long glass fibre antenna element with a frequency-compensated wide-band impedance transformer mounted in the bottom end.
  • The transformer converts the widely varying antenna impedance to a constant 50 Ω, making it possible to use length-independent, shielded, standard RG 58 C/U or RG 213/U as downlead cable to the 50 Ω receiver.
  • The antenna is protected against noise pick-up running on the outside of the downlead cable, and it is protected against static by DC-grounding.
  • Moreover, the 50 Ω receiver and the matching transformer itself are protected against RF overload and violent discharges by an air spark gap (approx. 1 kV), a gas filled spark gap (90 V) and a resistance network.
  • To prevent electrolytical corrosion, the coaxial cable braid is only capacitively coupled to the earth connection.
  • Installation is easily carried out by means of the two hot galvanized mast clamps. The antenna has very small weight and minimum wind surface, thereby requiring only a minimum of mast strength.
  • The glass fibre construction gives a stiff and self-supporting structure with extremely good resistance against the corrosive marine environment with UV-radiation, salt, exhaust gases and ice formation as primary factors.
  • RX 5000 is a maintenance-free and very reliable construction.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Self-Supporting Wide-Band Receiving Whip Antenna for the LF, MF and HF Bands. 110000111

Login required

You need to be logged in into your account to view downloadable documents.

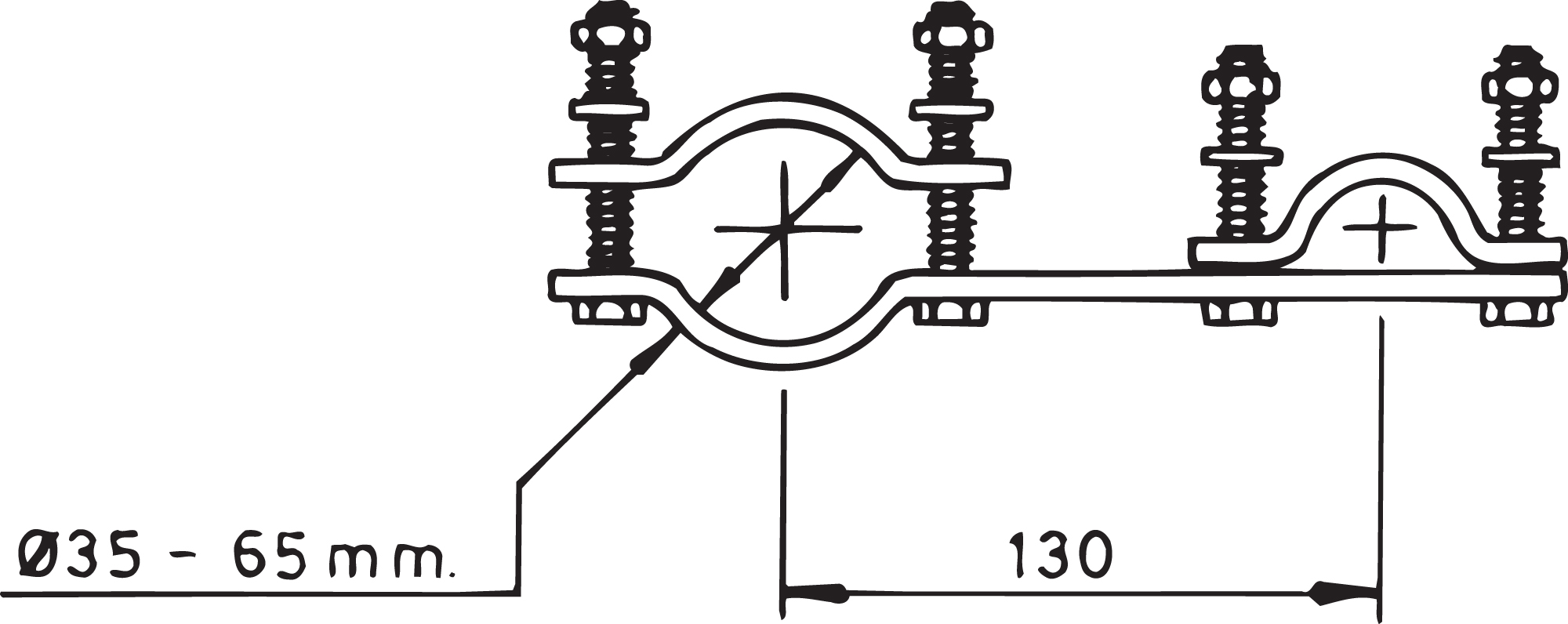

Clamp Details

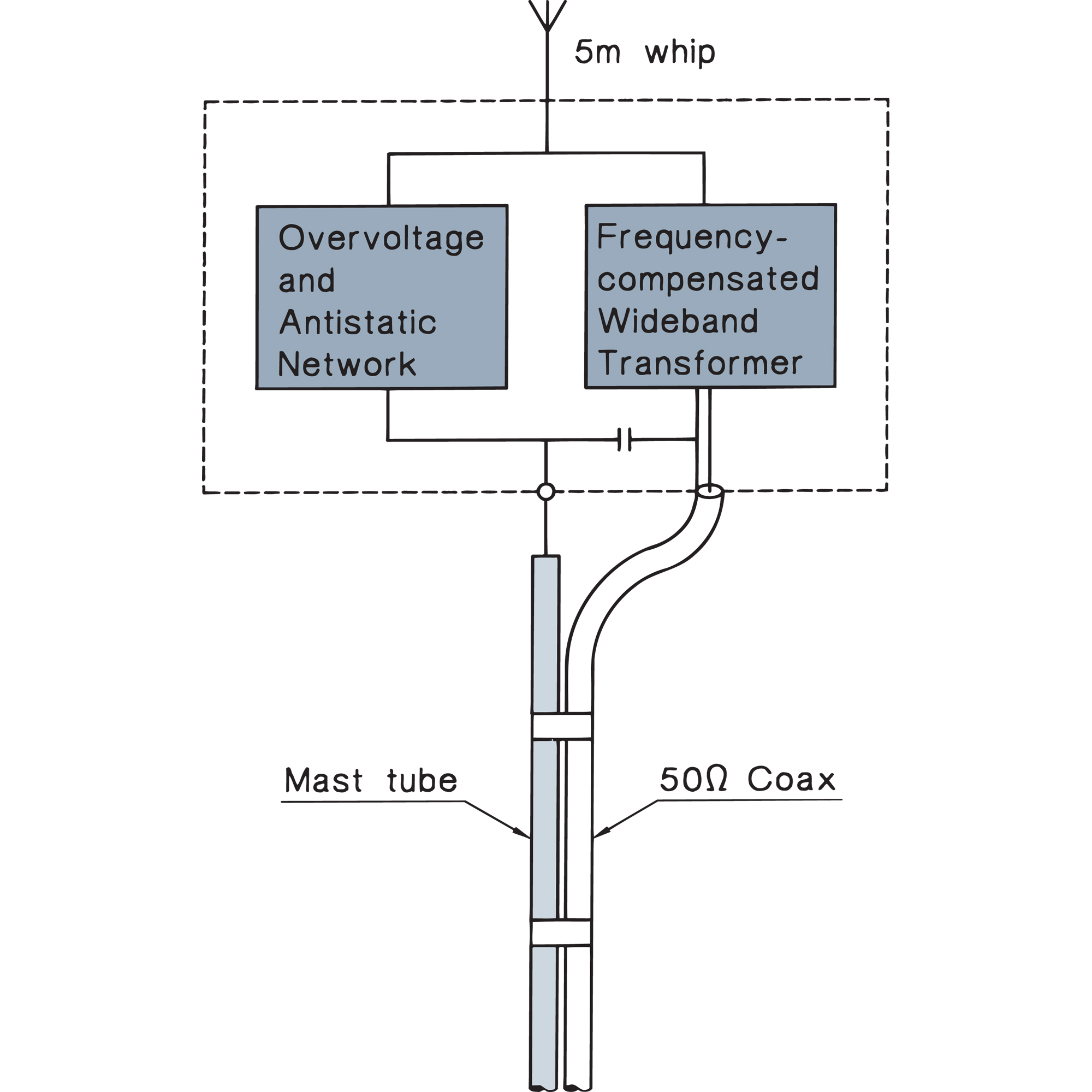

RX 5000 details GB
