| Electrical | |
| Model | S.3Y-395 |
|---|---|
| Frequency | 380 – 410 MHz |
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 84 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 62 ° |
| Impedance | 50 Ω |
| Gain | 6 dBd (8.2 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 15 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Ingress Protection | IP68 |
|---|---|
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 12.7 mm dia. aluminium balun, fully moulded enclosure |
| Length | Approx. 780 mm / 30.71 in. |
| Historic Brand | Skymasts |
| Wind Load | 77 N (160 km/h) |
| Weight | Approx. 1.1 kg / 2.43 lb. |
| Mounting Bracket | 3202078/68 + 3201079/00 (Ordered Separately) |
| Balun Encapsulant | Polyurethane Resin U-600 |
| Alternate Mounting Bracket | 0900912/00, 0302032/68, or 0300064/00 + U-Bolts to match mounting pipe diameter (Ordered Separately) |

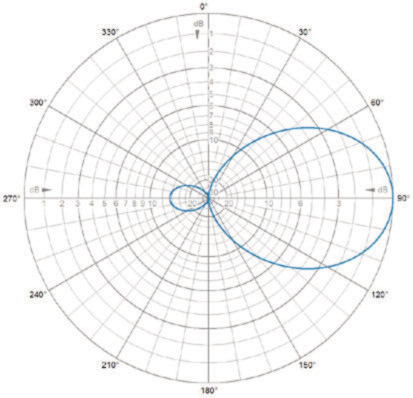

RADIATION PATTERNS
E-Plane | 395 MHz

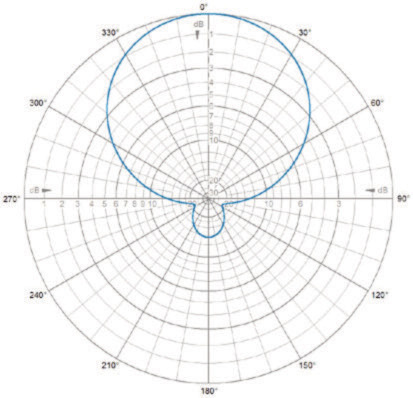

RADIATION PATTERNS
H-Plane | 395 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

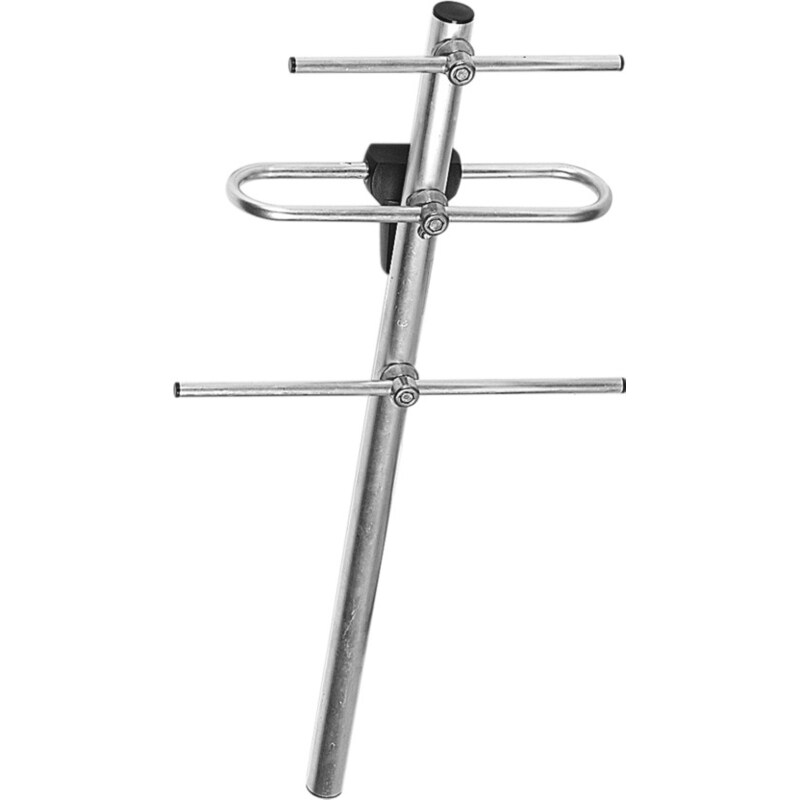

| 3 element Yagi antenna 380 – 410 MHz | S.3Y-395 |
