S.3Y4B-460-2C

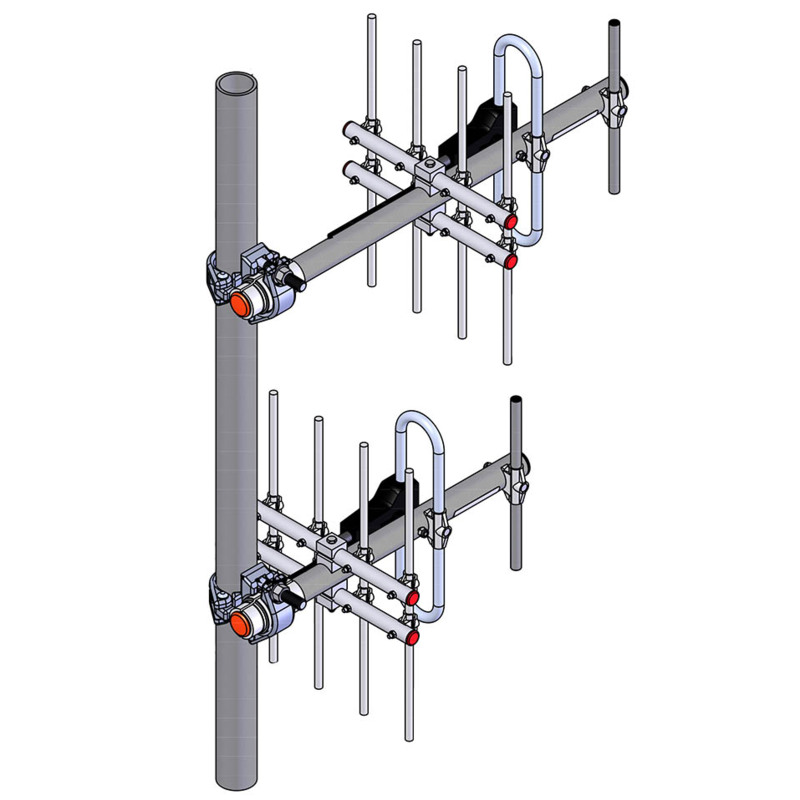

Cardioid Yagi array, 450 – 470 MHz, 4-bar reflector

Find Out More
Data Sheet
CE Certification

Other Files

S.3Y4B-460-2C
Electrical
Model S.3Y4B-460-2C
Frequency 450 – 470 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane 94 °
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 36 °
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR < 1.5:1
Front-To-Back Ratio > 35 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Ingress Protection IP68
Mechanical
Connection(s) N(f) on 3m RG213/U cable (LSZH)
Materials Boom, 32 mm dia. aluminium
elements, 12.7 mm dia. aluminium
balun, fully moulded enclosure
Historic Brand Amphenol Procom
Wind Load 240 N (160 km/h)
Weight Approx. 3 kg / 6.60 lb.
Balun Encapsulant Polyurethane Resin U-600
  • A dual 3-element UHF Yagi antenna array for PMR/Trunked Radio and Telemetry.
  • 4-bar reflector and cardioid configuration gives very high front-to-back ratio.
  • Produced to the highest quality standards these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Supplied with power splitter, mounting pole and antenna brackets
  • LSZH cable used for tunnel applications
