S.4Y-127-6

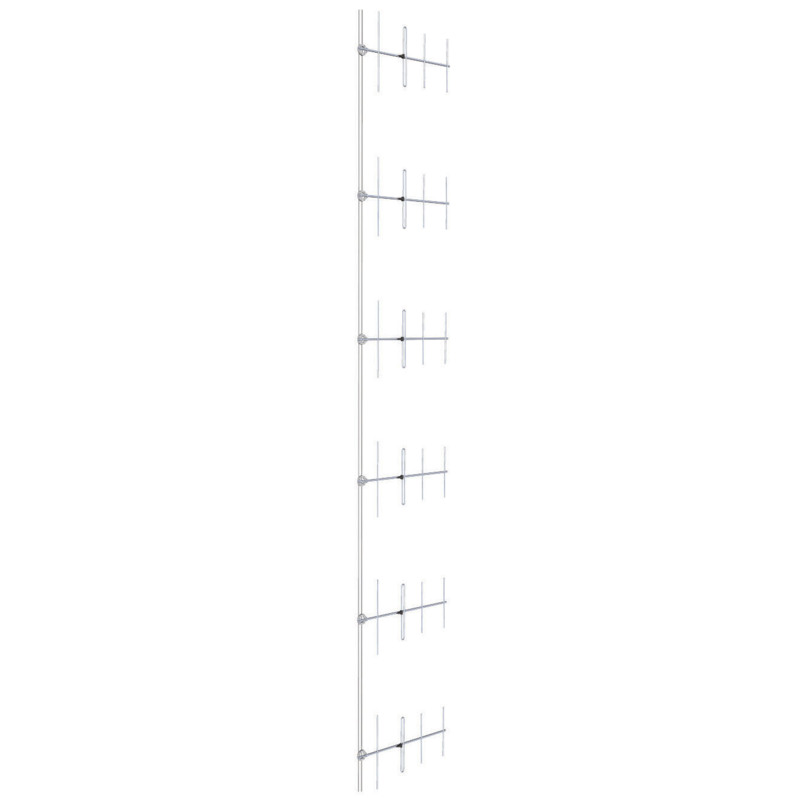

6 stack 4 element Yagi array 17.4 dBi gain

Find Out More
Data Sheet
CE Certification

Other Files

S.4Y-127-6
Electrical
Model S.4Y-127-6
Frequency 117 – 137 MHz
Max. Input Power 500 W
3 dB Beamwidth, H-Plane 74 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 11 °
Impedance 50 Ω
Gain 15.3 dBd (17.4 dBi)
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Mast Aperture Required 14.4m
Historic Brand Skymasts
Wind Load 1230 N (160 km/h)
Weight Approx. 57 kg / 125.66 lb.
  • A six stack, 4-element VHF Yagi antenna array for VHF extended range airband communications.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Skymacasts brand product.

RADIATION PATTERNS

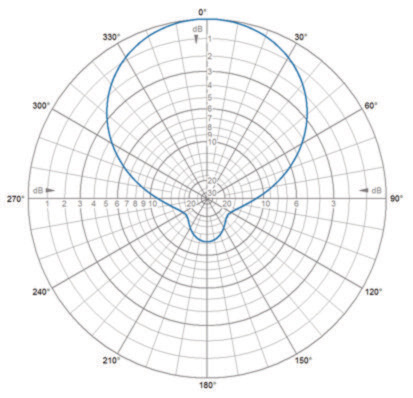

H-Plane | 127 MHz

H-Plane | 127 MHz

RADIATION PATTERNS

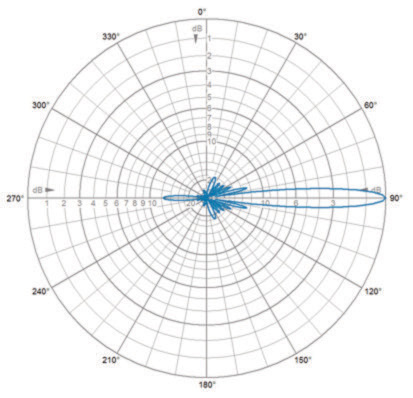

E-Plane | 127 MHz

E-Plane | 127 MHz

Model Product No. Add To Quote
6 stack 4 element Yagi array 17.4 dBi gain S.4Y-127-6
