S.6Y-127-6

6 stack 6 element Yagi array, 18.4 dBi

Find Out More
Data Sheet
CE Certification

Other Files

S.6Y-127-6
Electrical
Model S.6Y-127-6
Frequency 117 – 137 MHz
Max. Input Power 500 W
3 dB Beamwidth, H-Plane 61 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 12 °
Impedance 50 Ω
Gain 16.3 dBd (18.4 dBi)
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Mast Aperture Required 14.4m
Historic Brand Skymasts
Wind Load 1470 N (160 km/h)
Weight Approx. 65 kg / 143.30 lb.

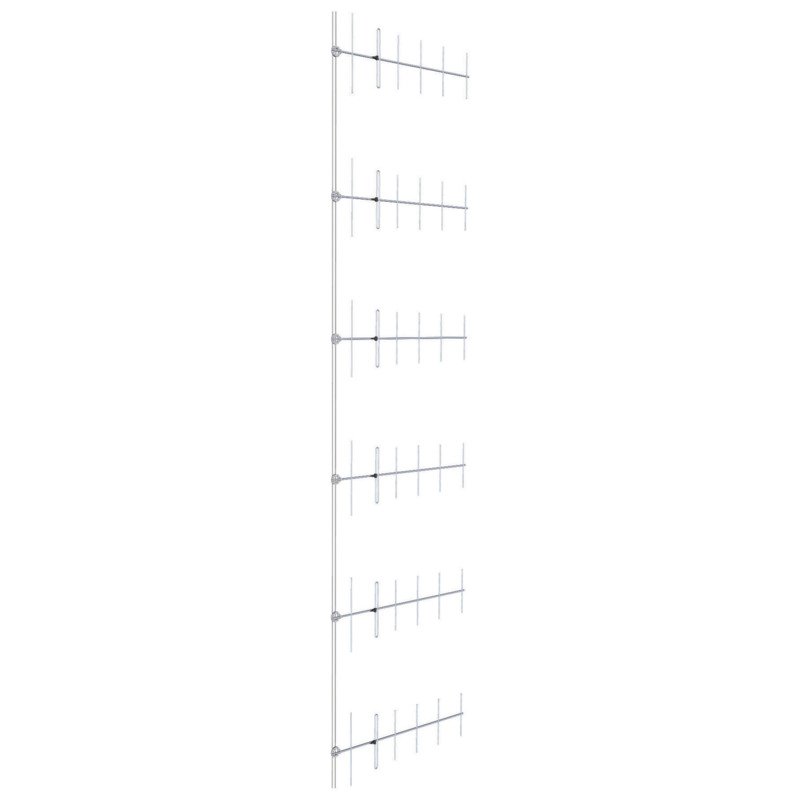

  • A six stack, 6-element VHF Yagi antenna array for VHF extended range airband communications.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.

RADIATION PATTERNS

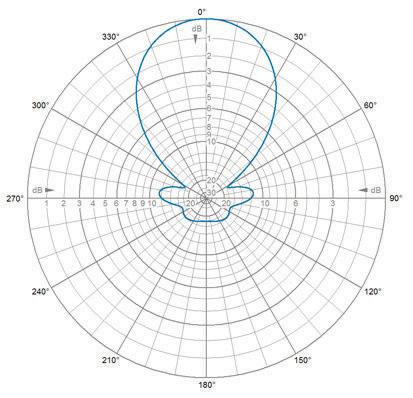

H-Plane | 127 MHz

H-Plane | 127 MHz

RADIATION PATTERNS

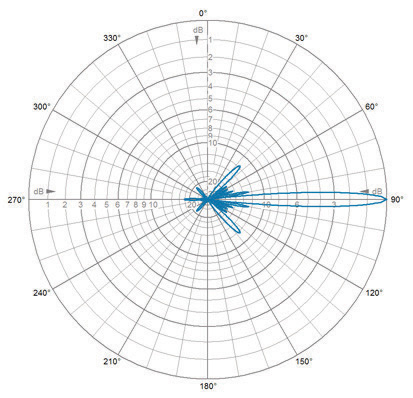

E-Plane | 127 MHz

E-Plane | 127 MHz

Model Product No. Add To Quote
6 stack 6 element Yagi array, 18.4 dBi S.6Y-127-6
