S.C3B-435

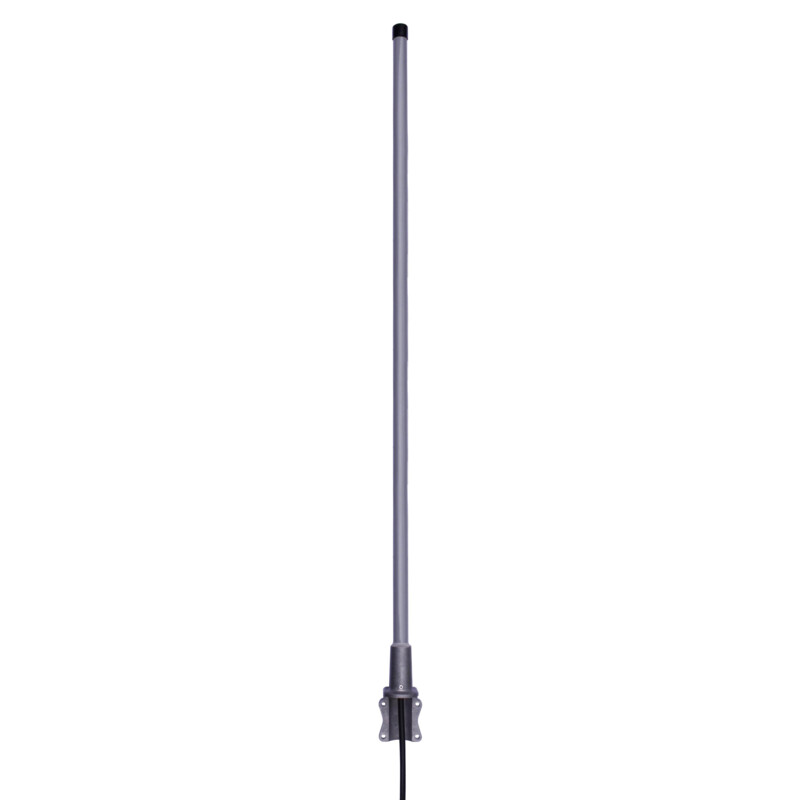

Broadband 3 dB glassfibre colinear 420 – 450 MHz

Find Out More
Data Sheet
CE Certification

Other Files

S.C3B-435
Electrical
Model S.C3B-435
Frequency 420 – 450 MHz
Max. Input Power 100 W
Omni Deviation < ± 0.5 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 33 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Radiating Element(s) 11 mm dia brass tube
Connection(s) N(f) on 500mm RG213/U cable
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube grey, 26mm dia.
Length Approx. 1600 mm / 62.99 in.
Historic Brand Skymasts
Wind Load 62 N (160 km/h)
Corrosion Protection Black anodise
Weight Approx. 0.8 kg / 1.76 lb.
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail
  • A rugged and durable UHF colinear antenna designed for Telemetry, Paging and PMR/Trunked Radio applications.
  • Housed inside a a high-strength glass fibre shroud, the antenna includes an integrated mounting clamp allowing easy installation on poles.
  • The robust antenna design ensures reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.

RADIATION PATTERNS

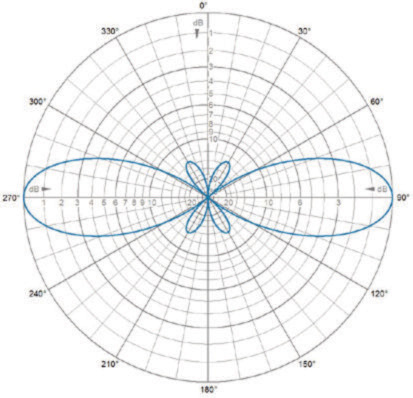

E-Plane | 435 MHz

E-Plane | 435 MHz

MOUNTING & DIAGRAMS

Antenna Mounting

Antenna Mounting

RADIATION PATTERNS

H-Plane | 435 MHz

H-Plane | 435 MHz

Model Product No. Add To Quote
Broadband 3 dB glassfibre colinear 420 – 450 MHz S.C3B-435
