S.CR-120-160

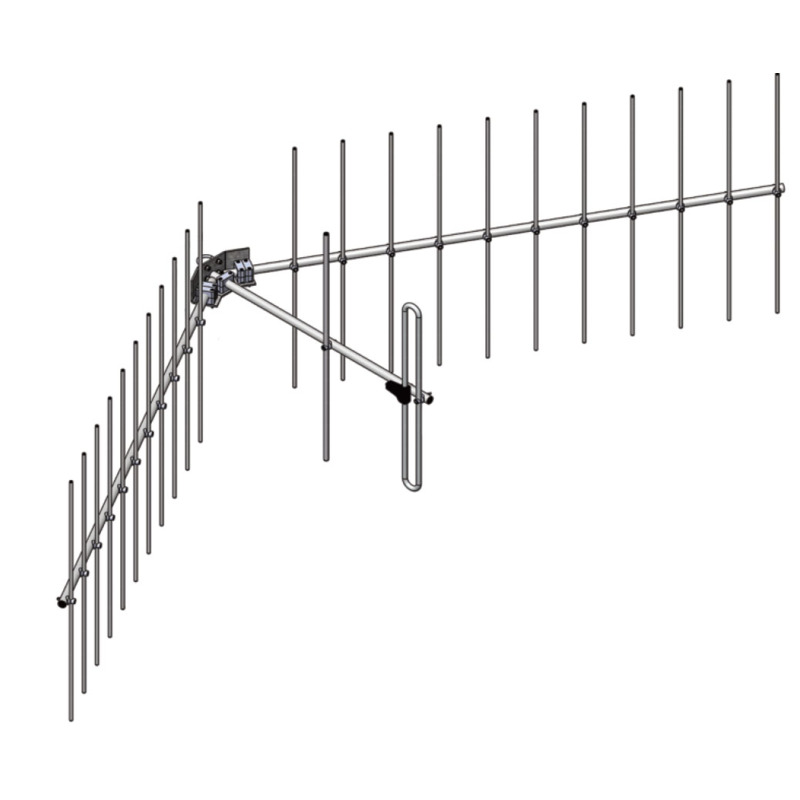

VHF corner reflector 60°, 155 – 165 MHz

Find Out More
Data Sheet
CE Certification

Other Files

S.CR-120-160
Electrical
Model S.CR-120-160
Frequency 155 – 165 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane 60 °
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 60 °
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR < 1.5:1
Front-To-Back Ratio > 25 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +70 °C
Ingress Protection IP68
Mechanical
Connection(s) N(f) on 3m RG213/U cable
Materials Boom : 32 mm dia. aluminium
elements : 12.7 mm dia. aluminium
balun, Fully moulded enclosure
Historic Brand Skymasts
Weight Approx. 12 kg / 26.46 lb.
  • A VHF Corner Reflector antenna designed for airband radio.
  • This antenna provides approximately the same gain as an 8-Element Yagi antenna but with improved F/B ratio and reduced sidelobes in the horizontal plane.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.
