S.EFX-340

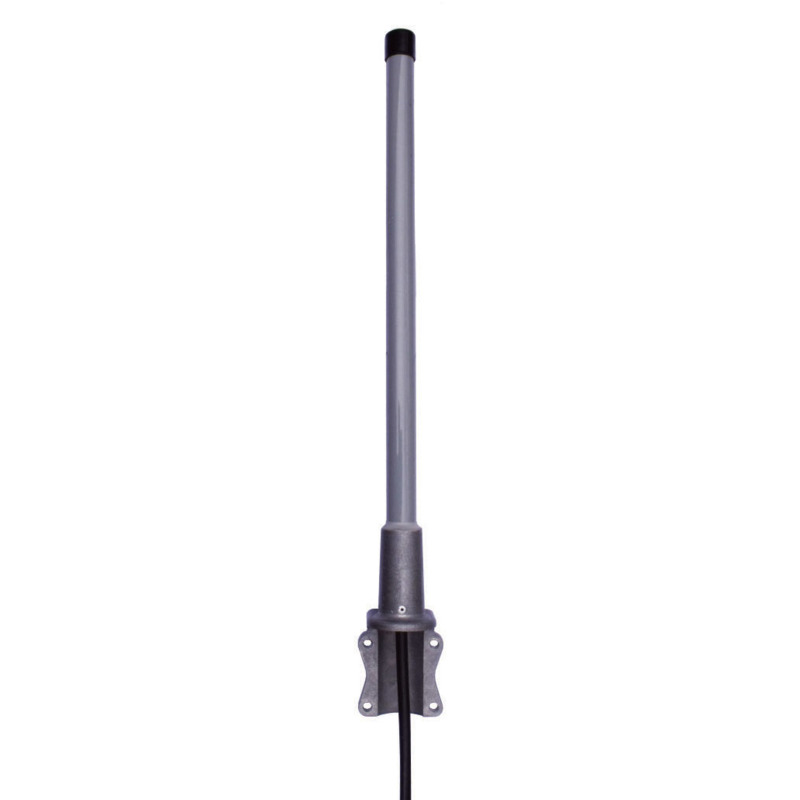

Glassfibre end fed dipole antenna 330 – 350 MHz

Find Out More
Data Sheet
CE Certification

Other Files

S.EFX-340
Electrical
Model S.EFX-340
Frequency 330 – 350 MHz
Max. Input Power 100 W
Omni Deviation < ± 0.5 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Radiating Element(s) 11 mm dia brass tube
Connection(s) N(f) on 500mm RG213/U cable
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube grey, 26mm dia.
Length Approx. 1000 mm / 39.37 in.
Historic Brand Skymasts
Wind Load 35 N (160 km/h)
Corrosion Protection Surtec 650
Weight Approx. 0.65 kg / 1.43 lb.
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail
  • A rugged and durable UHF omni antenna designed for Telemetry, Paging and PMR/Trunked Radio applications.
  • Housed inside a a high-strength glass fibre shroud, the antenna includes an integrated mounting clamp allowing easy installation on poles or horizontal rails.
  • The robust antenna design ensures reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.

MOUNTING & DIAGRAMS

Antenna Mounting

Antenna Mounting

RADIATION PATTERNS

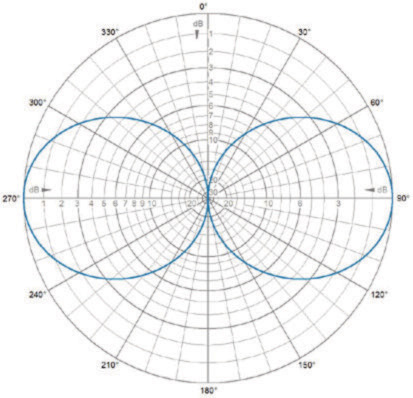

E-Plane | 340 MHz

E-Plane | 340 MHz

RADIATION PATTERNS

H-Plane | 340 MHz

H-Plane | 340 MHz

Model Product No. Add To Quote
Glassfibre end fed dipole antenna 330 – 350 MHz S.EFX-340
