S.M2-160-SB

2-stack dipole phased array 145 – 175 MHz

Find Out More
Data Sheet
CE Certification

Other Files

S.M2-160-SB
Electrical
Model S.M2-160-SB
Frequency 145 – 175 MHz
Max. Input Power 500 W
3 dB Beamwidth, H-Plane 180 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 36 °
Impedance 50 Ω
Gain 5 dBd (7.2 dBi)
VSWR < 1.5:1
Front-To-Back Ratio 5.5 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Ingress Protection IP68
Mechanical
Elements 12.7 x 1.6 mm dia. / 0.5 x 0.06 in.
wall aluminium alloy grade 6063T6
Connection(s) N(f) on RG213/U cable
Boom Material 63.5 x 6.3 mm dia. / 2.5 x 0.25 in.
wall aluminium alloy grade 6082T6
Fasteners Stainless steel grade A2-70
Length 3.5 m (supplied in two sections)
Element Clamps Diecast Al / Zinc alloy
Historic Brand Skymasts
Wind Load 387 N (160 km/h)
Weight Approx. 15 kg / 33.07 lb.
Balun Encapsulant Polyurethane Resin U-600
  • The S.M2 is an array of phased centre fed folded dipoles mounted on an aluminium mast for PMR / Trunked radio applications.
  • Each folded dipole balun assembly and associated harness junction is completely encapsulated in poyurethane resin, totally preventing moisture ingress.
  • At VHF the antenna disassembles and flat packs for ease of shipping.
  • Former Skymasts brand product.

RADIATION PATTERNS

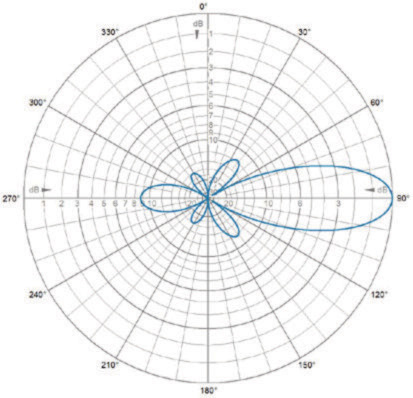

E-Plane | 160 MHz

E-Plane | 160 MHz

RADIATION PATTERNS

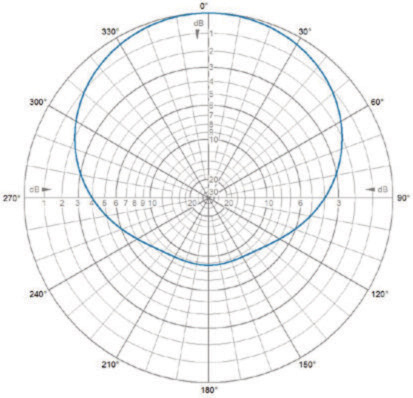

H-Plane | 160 MHz
