| Electrical | |
| Model | S.M2E-160 |
|---|---|
| Frequency | 145 – 175 MHz |
| Max. Input Power | 500 W |
| 3 dB Beamwidth, H-Plane | 180 ° |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 36 ° |
| Impedance | 50 Ω |
| Gain | 5 dBd (7.2 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 5.5 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Operating temperature range | -40 °C to +70 °C |
|---|---|
| Ingress Protection | IP68 |
| Mechanical | |
| Connection(s) | N(f) on RG213/U cable |
|---|---|
| Materials | Main Boom, 48 mm dia., aluminium elements, 12.7 mm dia., aluminium balun, fully potted enclosure |
| Historic Brand | Skymasts |
| Dimensions | 3000 mm (h) x 590 mm (w) (supplied in two sections) |
| Wind Load | 363 N (160 km/h) |
| Weight | Approx. 8.0 kg / 17.64 lb. |
| Mounting Bracket | 0300120/00 (Ordered Separately) ETC-250 (50 to 76 mm dia.) (Ordered Separately) |
| Alternate Mounting Bracket | 2141.01.00.00 (up to ø120mm) (Ordered Separately) |
RADIATION PATTERNS

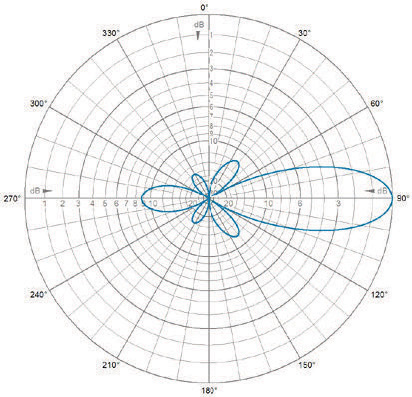

E-Plane | 160 MHz
RADIATION PATTERNS

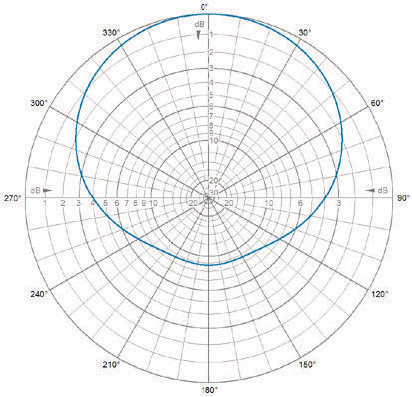

H-Plane | 160 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

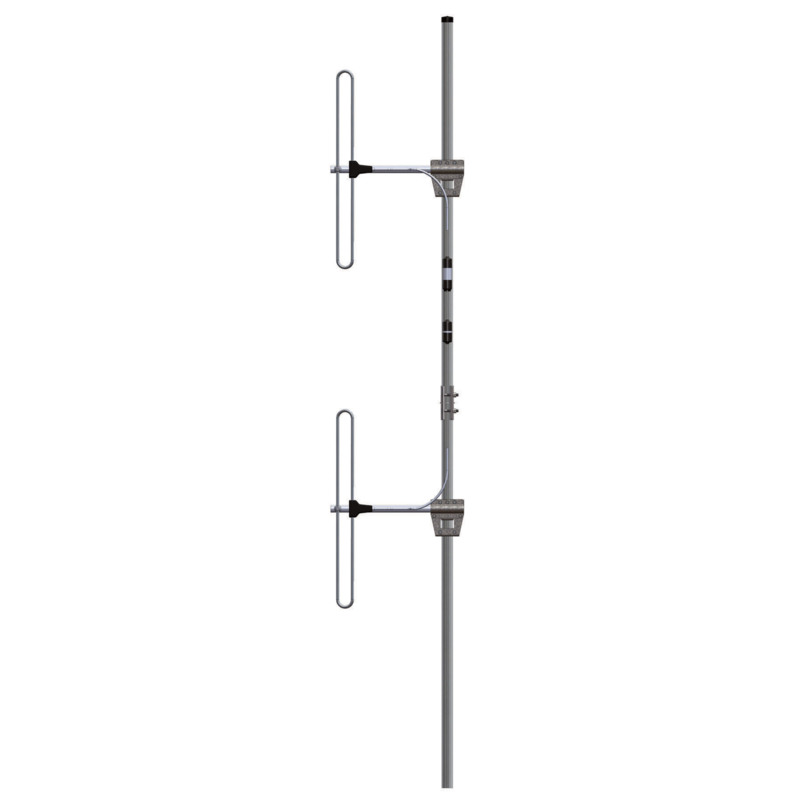

| 2-stack lightweight dipole array, 145 – 175 MHz | S.M2E-160 |
