S.M4-445

4-stack dipole phased array 420 – 470 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

S.M4-445

Quickly identify the correct ordering code.

S.M4-445
Electrical
Model S.M4-445
Frequency 420 – 470 MHz
Max. Input Power 250 W
3 dB Beamwidth, H-Plane 160 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 16 °
Impedance 50 Ω
Gain 8.7 dBd (10.9 dBi)
VSWR < 1.5:1
Front-To-Back Ratio 7 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Ingress Protection IP68
Mechanical
Elements 12.7 x 1.6 mm dia. / 0.5 x 0.06 in.
wall aluminium alloy grade 6063T6
Connection(s) N(f) on RG213/U cable
Boom Material 38.1 x 3,2 mm dia. / 1.5 x 0.13 in.
wall aluminium alloy grade 6082T6
Fasteners Stainless steel grade A2-70
Length 2500 mm
Element Clamps Diecast Al / Zinc alloy
Historic Brand Skymasts
Wind Load 206 N (160 km/h)
Weight Approx. 5.5 kg / 12.13 lb.
Balun Encapsulant Polyurethane Resin U-600

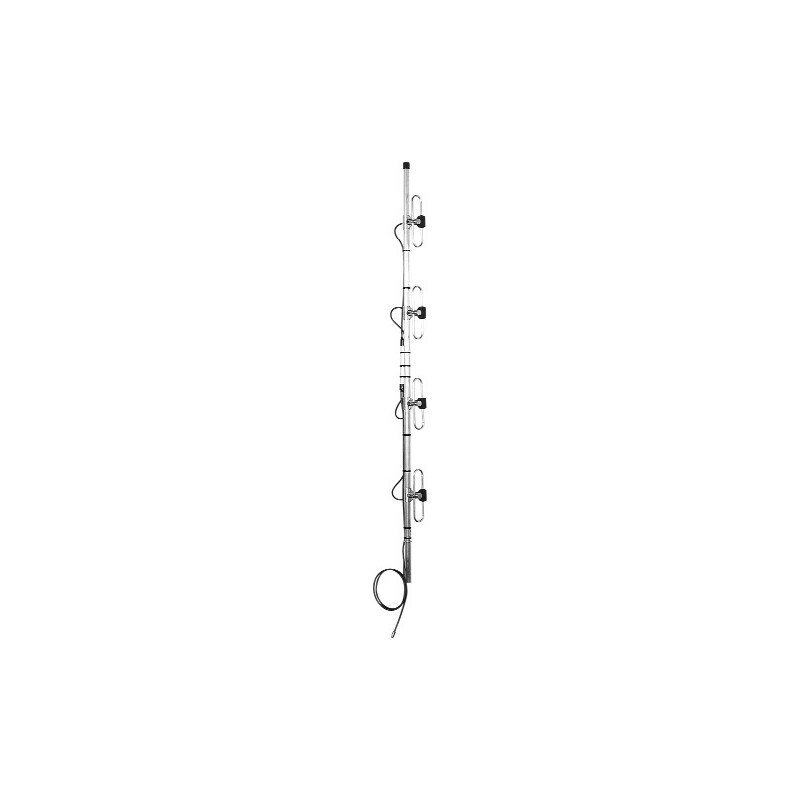

  • The S.M4 is an array of phased centre fed folded dipoles mounted on an aluminium mast for PMR / Trunked radio applications.
  • Each folded dipole balun assembly and associated harness junction is completely encapsulated in poyurethane resin, totally preventing moisture ingress.
  • Former Skymasts brand product.

RADIATION PATTERNS

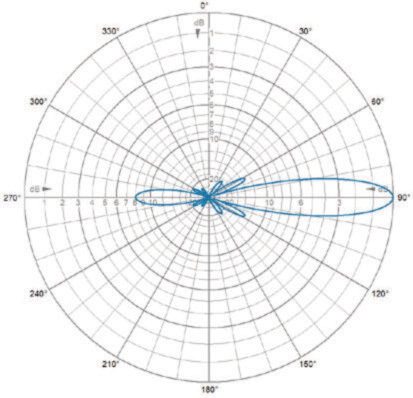

E-Plane | 445 MHz

E-Plane | 445 MHz

RADIATION PATTERNS

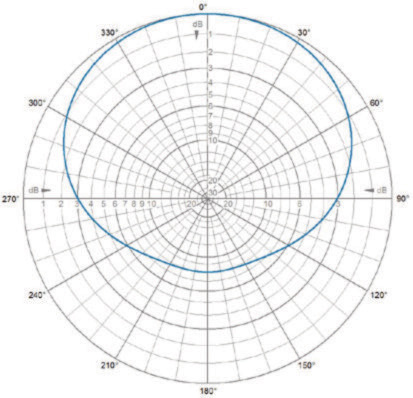

H-Plane | 445 MHz

H-Plane | 445 MHz

Model Product No. FrequencyAdditional Information Add To Quote

4-stack dipole phased array

 S.M4T5-445 420 – 470 MHz 5° Electrical Tilt

4-stack dipole phased array

 S.M4T10-445 420 – 470 MHz 10° Electrical Tilt

4-stack dipole phased array

 S.M4T15-445 420 – 470 MHz 15° Electrical Tilt
